T-Measurement ZC3-A Concrete Schmidt Concrete Schmidt Hammer Manual Concrete test Hammer

ر.س394.09

Qty:

Product Description

Brief Introduction

ZC3-A is applied to test the compressive strength of building concrete components, bridge and so on.

Features

1.Center rod is made from imported material
2. High Aluminum case extend use life.
3. High accuracy and durable resistance
4. Pointer slider is outside structure, its friction can be balance well and easy to be adjusted so that we can make sure that the instrument is accurate

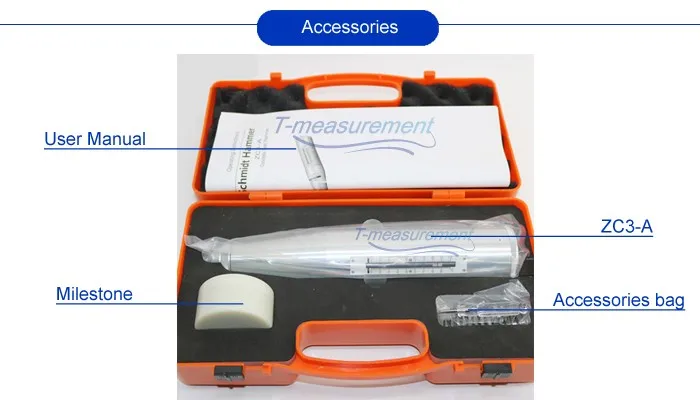

Detailed Images

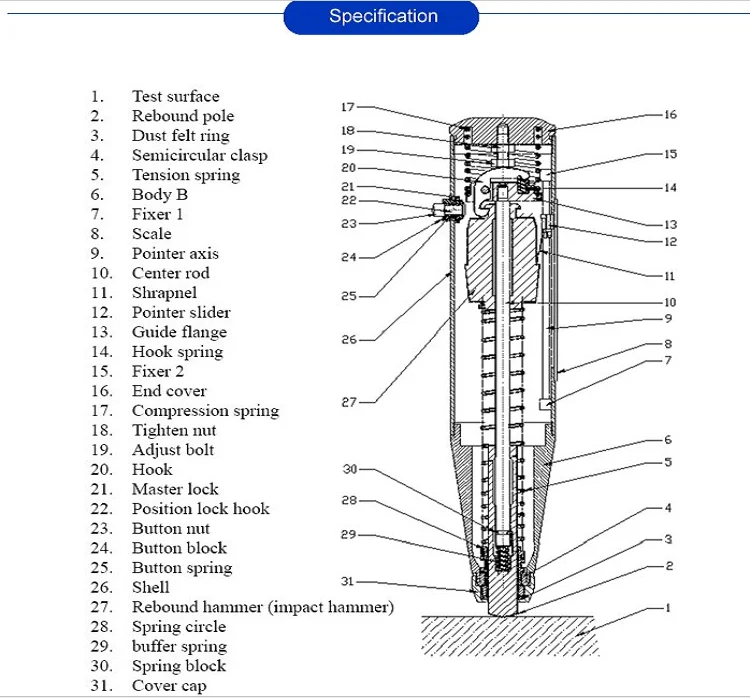

Technical information
Standard impact energy
2.207±0.1J (0.225Kgf.m)
Radius of spherical tip
25mm±1mm
The static friction of pointer slider
0.65N±0.15N
Working Temperature
-10℃~+50℃
Length of spring stretch
75±0.3mm
Working Humidity
≤90%RH
Average rebound hammer on steel anvil Rm
80±2
Dimensions
Φ54x280mm
Measuring Range
10~60Mpa
Net weight
About 1.0Kg
