NS600E

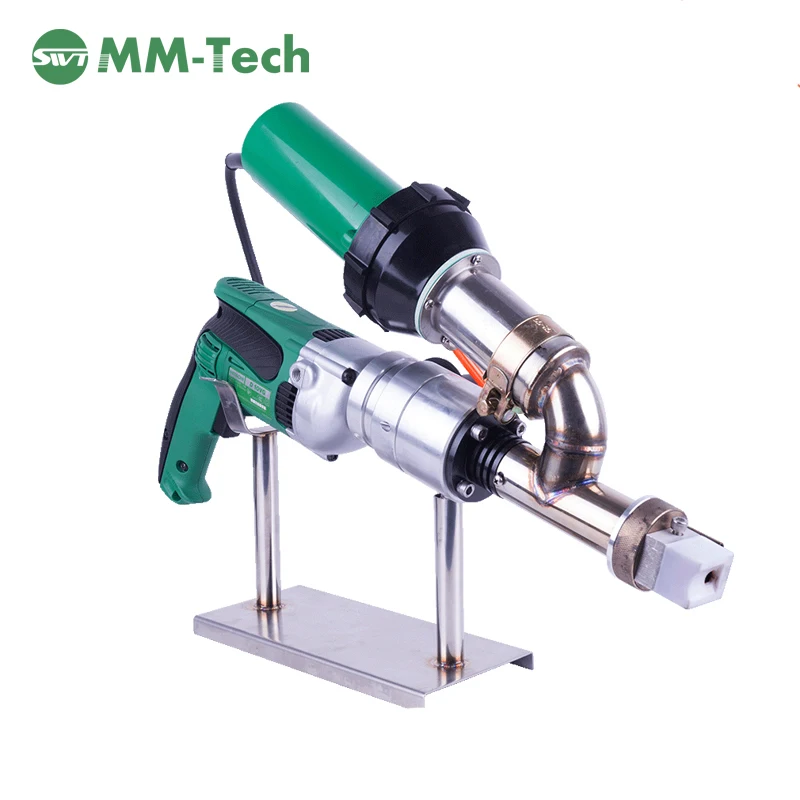

Hand Held Plastic Extrusion Welders For use with PP/ PE/ PVDF/ Nylon/ Polyurethane SWT-NS600E
Hand Held Plastic Extrusion Welder is used for welding PE, PP, PVC, PVDF, HDPE and so on.
Hand held Plastic Extrusion Welding Machines are used for plastic sheets, and bitumen waterproofing and packaging materials with hot air for tanks and lining and agricultural and environmental cover.
Welding machines for polypropylene and polyethylene pipes.
Hand held Plastic Extrusion Welding Machines are designed for water conservancy,aquaculture,landfills,chemical mining,sewage treatment,roof construction, and other waterproofing projects.

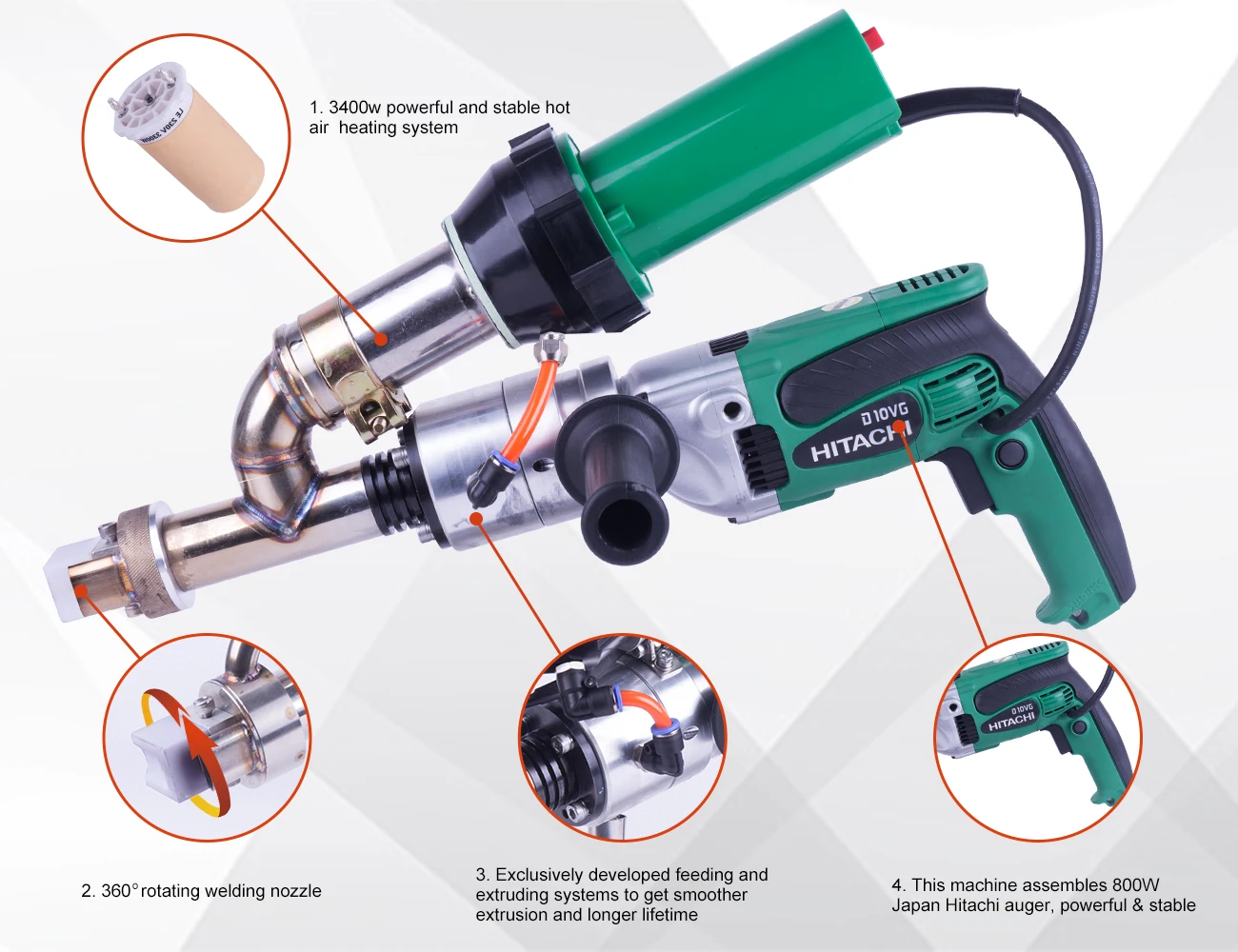

This product is with two major components,preheating raw material’s hot air part and welding rod’s extrusion part.Hot air part with adjustable temperature controller to heat automatically,and extrusion part with independent thermostatic heating control system to send hot air independently, It is easy to adjust extrusion speed and use screw extruding for powerful extrusion pressure.
Using 220v power supply uniformly to weld plastic sheets,tube and other thermoplastic products,especially for both ends of large diameter hollow wall pipe,producing pipe and repairing pipe and so on.
Available welding materials: thermoplastic HDPE, PP, PVDF, especially PE .
Do not apply in a conductive plastic (PE-EL), or cause the machine to produce a conductive short-circuit.
This series of welding machine is powerful with high welding speed and good welding quality.
It is available for welding PE, PVDF, PVC, PP and other hot melt materials.
It is the first one to have a digital display control, 360 degree rotating welding head, the motor cold start protection, independent heating of welding rod and membrane material and other functions in China.
International warranty 24months.
Any parts broken or does not work under normal operating,we are free to provide.
|
Model
|
SWT-NS600E
|
||||
|
Voltage
|
220 V
|
||||
|
Frequency
|
50/60Hz
|
||||
|
Extruding Motor Power
|
800W
|
||||
|
Hot Air Power
|
3400W
|
||||
|
Welding Rod Heating Power
|
800W
|
||||
|
Air Temp
|
20-620°c Adjustable
|
||||
|
Extruding Volume
|
2-2.5Kg/h
|
||||
|
Welding Rod DIA
|
3.0mm-4.0mm
|
||||
|
Weight
|
6Kg
|
||||
|
Application
|
PP PE PVC
|
||||
