Product Overview

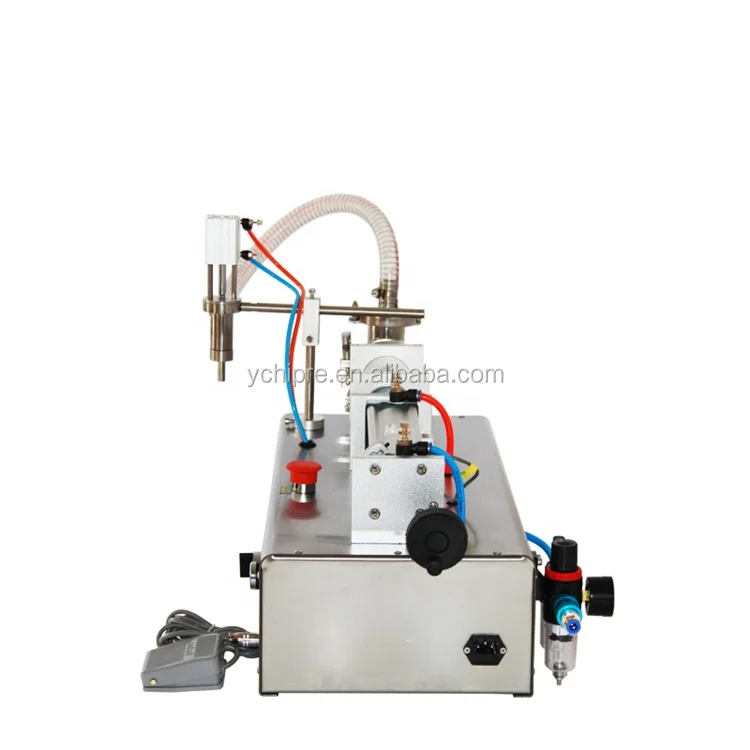

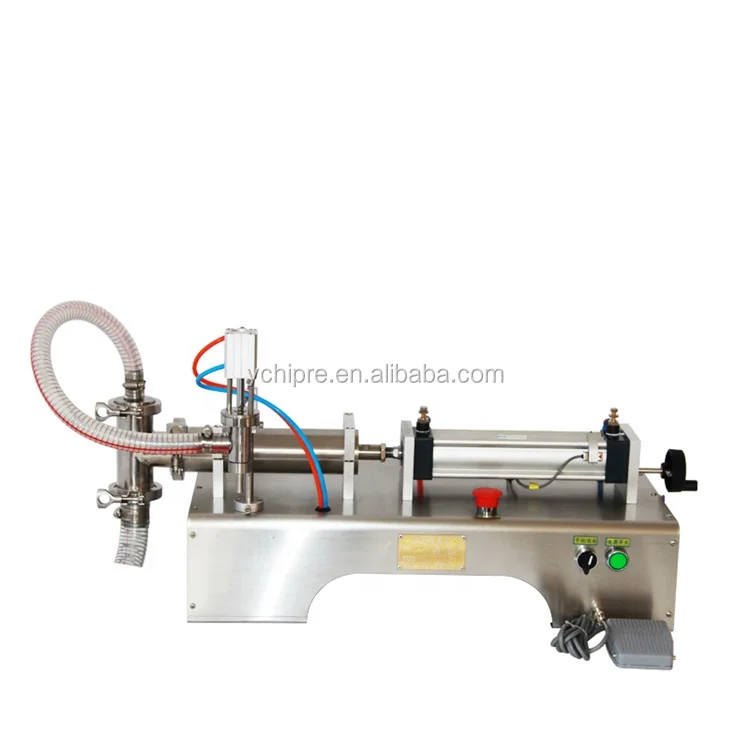

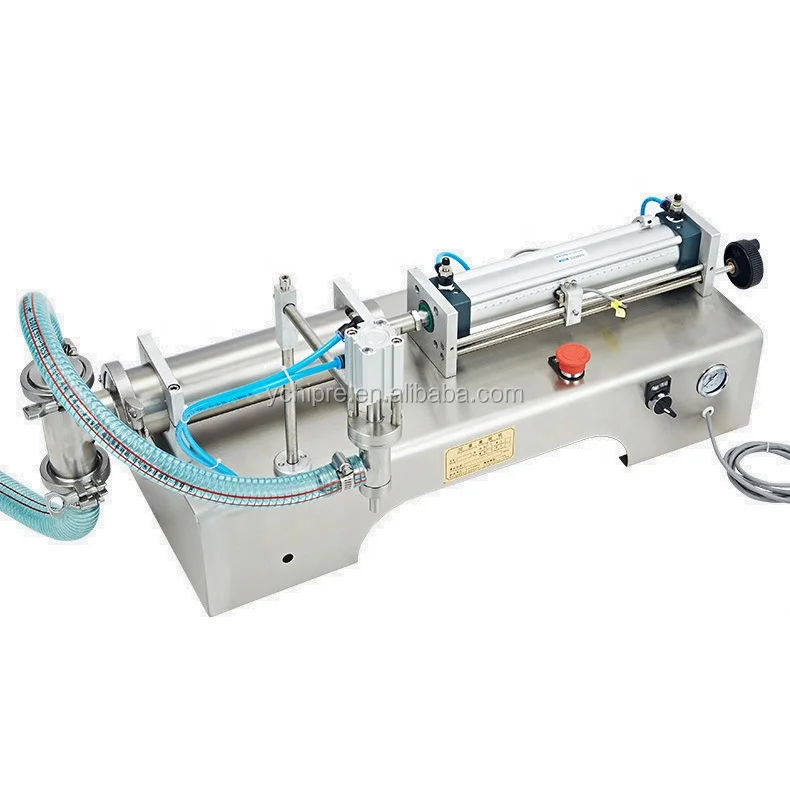

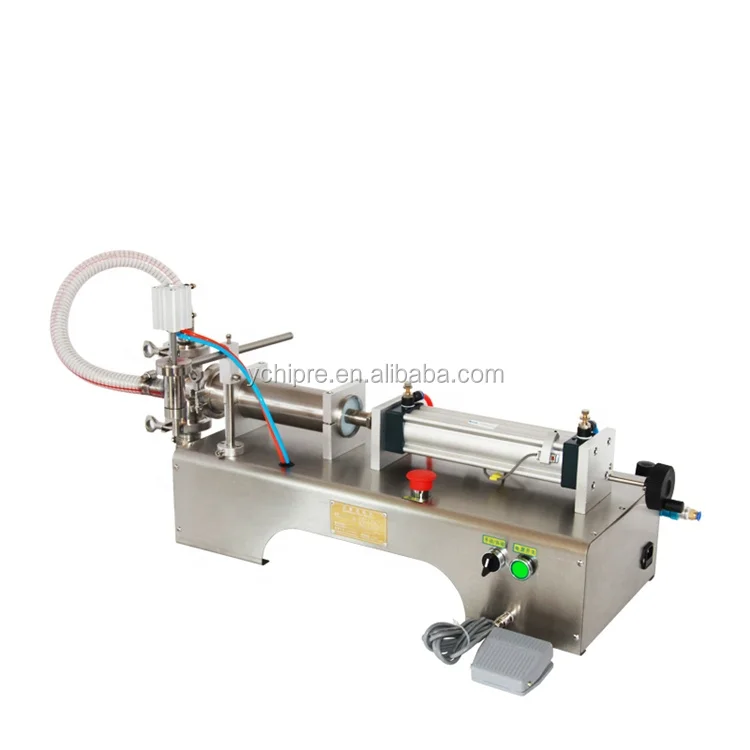

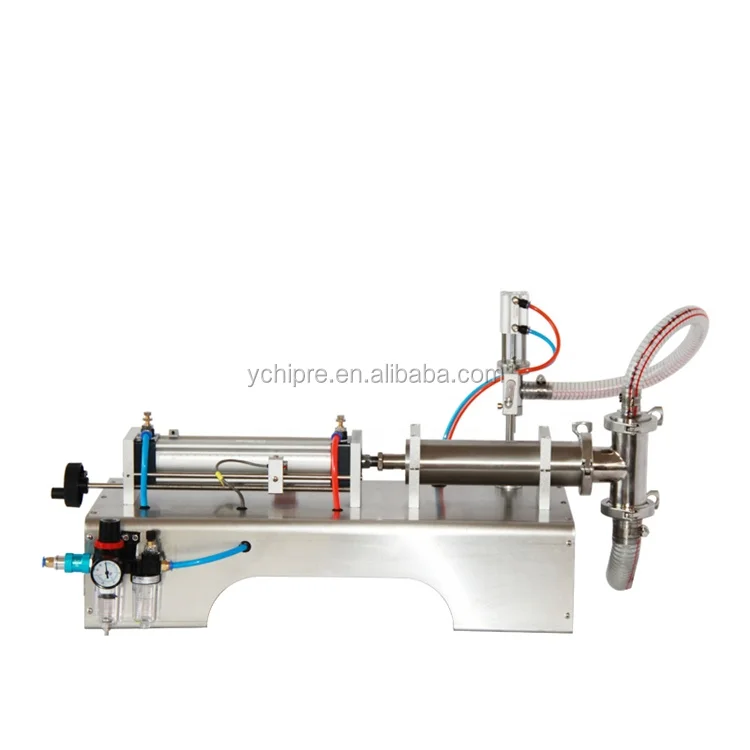

Piston type G1WY series liquid filling machine is driven by electricity and air compressor, is suitable for filling good liquidity products, such as water, oil, beverage, juice, drink, oil, shampoo, perfume etc, widely applied to food, commodity, cosmetic, agriculture etc, it is an ideal quantitative liquid filling equipment for small and medium-sized enterprises.
Filling range
|
5-100ml
|
10-300ml
|
50-500ml
|
100-1000ml
|
500-3000ml
|
1000-5000ml
|
|||||
Filling speed
|
15-35 bottles/min
|
||||||||||
Filling error
|
≤±1%
|
||||||||||
Voltage
|
AC 220V 50Hz / 110V 60Hz
|
||||||||||
Air pressure
|
1.5Hp air compressor ; 0.4-0.6mpa air pressure
|
||||||||||
Dimension(cm)
|
98*40*39
|
98*40*39
|
98*43*40
|
115*40*34
|
143*40*41
|
118*48*46
|
|||||
Net weight
|
31kg
|
32kg
|
33kg
|
35kg
|
42kg
|
50kg
|
