Steel Crawler 200m Portable hydraulic Water Well Drilling Rig

ر.س24,000.00

Clear
Qty:
Compare

Request quotation for: Steel Crawler 200m Portable hydraulic Water Well Drilling Rig

The JK-DR200S drilling rig with AC(Air Compressor) method is capable of drilling upto 203mm (8 inch) diameter holes for pore-forming purposes to a depth of 200 meters

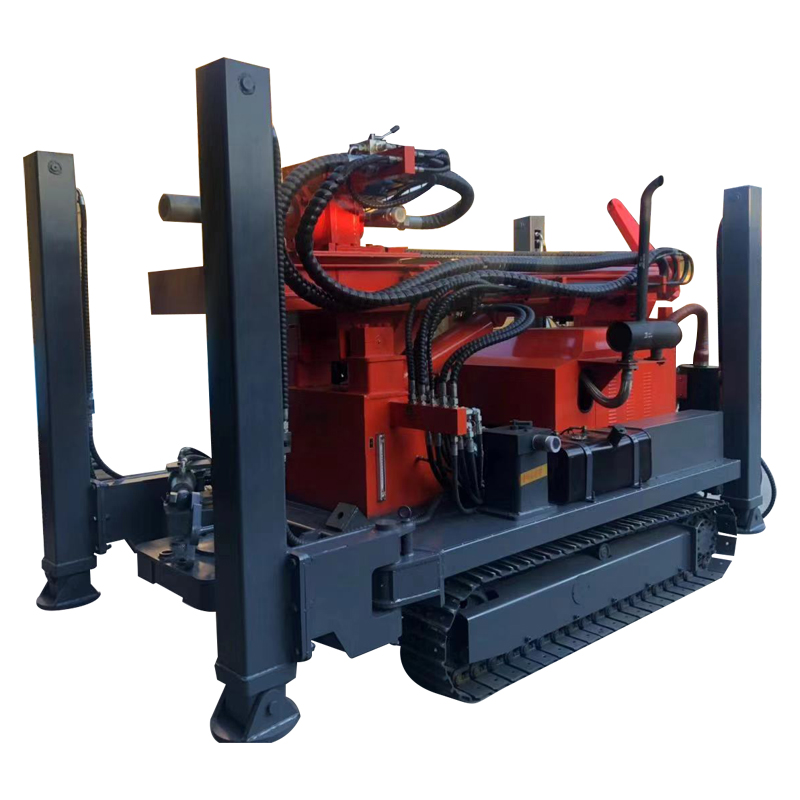

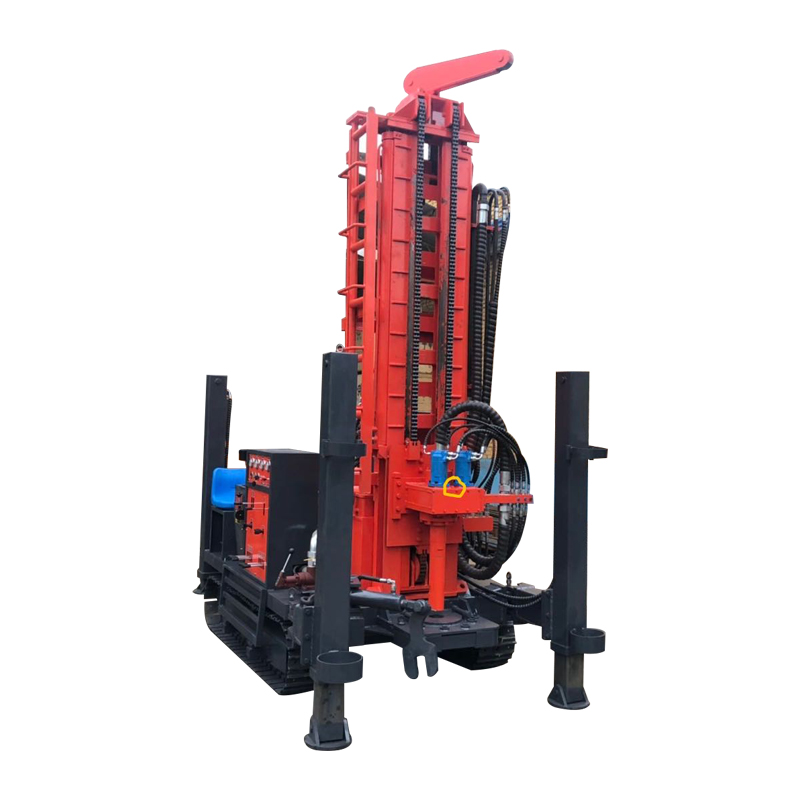

Product Display
Product Parameters
Maximum drilling depth
200m
Bore diameter
90-315mm
Working wind pressure
1.7-3.0Mpa
Air consumption
17-35m3/min
Drill rod length
3m
Drill rod diameter
76/89mm
axial pressure
4T
lifting force
14T
Hoisting speed
2.5m/min
Fltting speed
0.5-5m/min
Fast hoisting speed
18m/min
Fast Fltting speed
35m/min
Swing torque
4500-6500Nm
Swing speed
50-70r/min
Hoisting force of winch
1.5T
High hydraulic leg stroke
1.5m
The penetration efficiency
10-35m/h
Travelling speed
2.0Km/h
Gradeability
30°
Weight
5.4T
Dimensions(mm)
3.9M×1.7M×2.15M
Engine
72KW YUCHAI 4-cylinder
Product Advantages
1.The engine uses YUCHAI 72 KW turbocharged engine;

2.Walking Type: crawler mounted ,trailer mounted for choice.
3.Hydraulic oil pump:Parallel gearbox design separates the oil pump unit, the power
supply is adequately distributed, the hydraulic system is uniquely designed, and the maintenance cost is small;
4.Rotary head device:gearbox integrated casting, dual motor power, large torque, durable, low maintenance costs;
5.Drilling machine chassis:professional digging chassis, durable, heavy bearing, wide chain plate, less damage to hard roads;
6.Lifting force:design composite tower, 3.4m long stroke, double cylinder lift capacity 14 ton .
7.Each rig is equipped with a relief valve to raise the boom to protect the cylinder and ensure work safety;
8.Each hydraulic oil pipe is covered with a protective jacket to make the oil pipe last longer.
Accessories(Two Drill Methods)

Application

Related Products

Packing&Delivery

Model Number

JK-DR200S

Power

74KW
