Description:
Principle:
Standard :
Features:
2.Automatic return: sample fracture, automatic return to the initial position.
3.Automatic shift: according to the size of the load, can switch different gear, to ensure the accuracy of measurement.
4.Change the speed: the machine can change the test speed according to different samples.
5.Value calibration: the system can realize the accurate calibration of the force value.
6.Control method: according to the test needs can choose test force, test speed, displacement, strain and other test methods.
7.One machine multi-purpose: equipped with different specifications of the sensor, can achieve one machine multi-purpose.
8. Curve traversal: after the completion of the test, the mouse can be used to arbitrarily find the force value and deformation data of the test curve point by point and analyze it.
9, display: data and curve test process dynamic display.
10. Results: The test results were accessible and the data curve was analyzed.
11, limit: with program control and mechanical limit.
12, overload: when the load exceeds the rated value automatically stop.
Technical parameters:
Sensing method: Force sensor automatic display

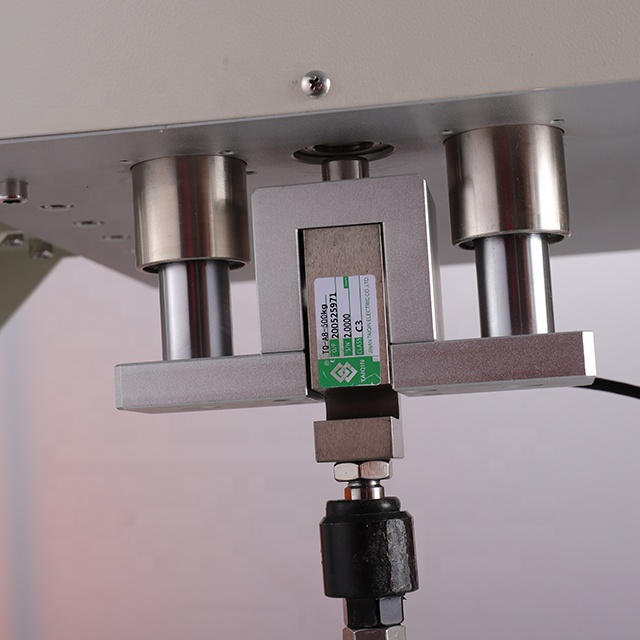

Load Cell Capacity: 200Kg
Motor: servo motor control system
Unit switch: Kg、N、Lb
Resolution: 1/1000
Accuracy: 0.5 (±0.5%)
Testing stroke: 200mm
Test speed: 100±20mm/min

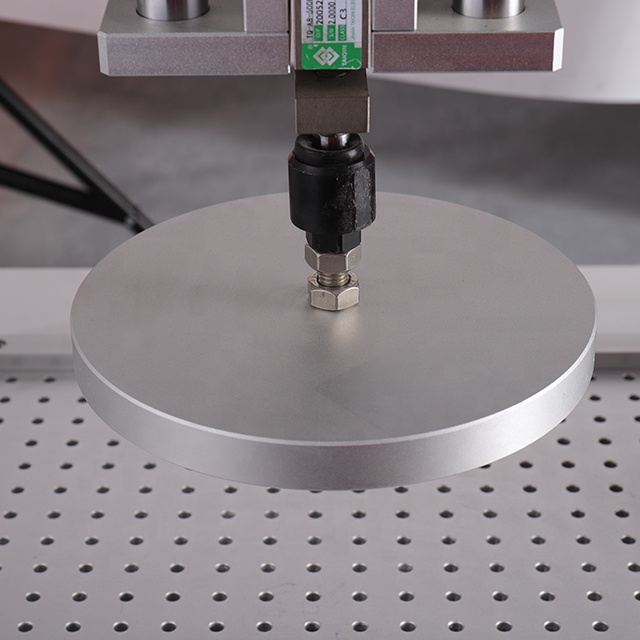

Size of upper compressing plate: diameter 203mm,
Bottom Border-radius: R1mm

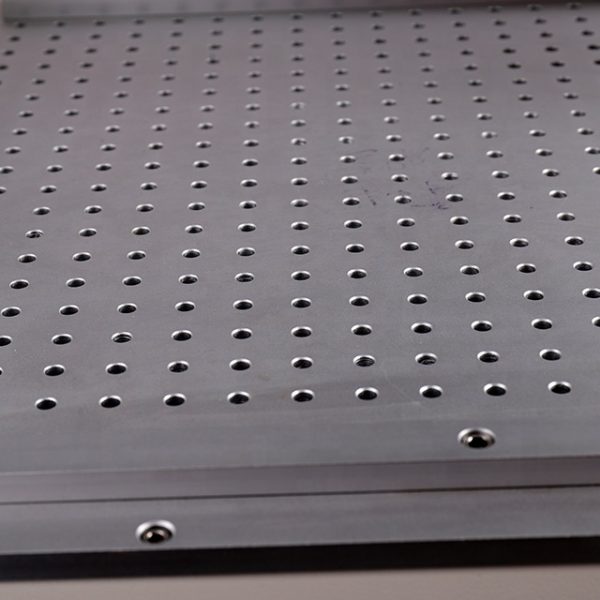

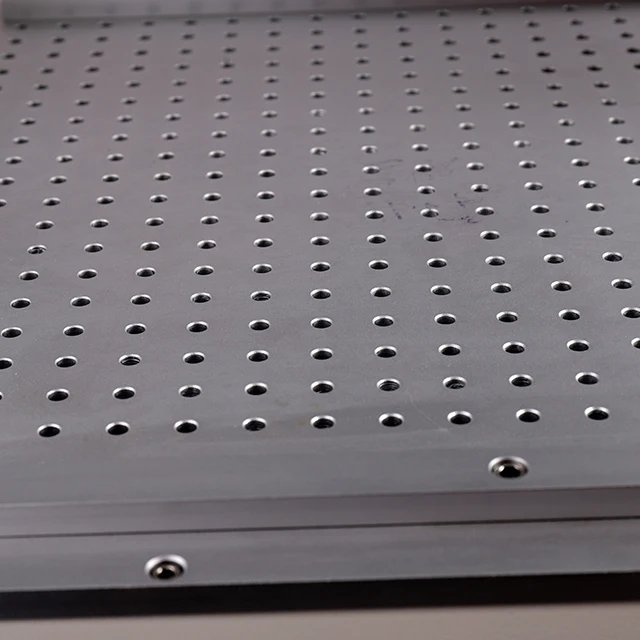

Lower platform: 420mmx420mm，
Air hole diameter: 6.5mm,
Hole center gap: 20mm
Specimen size : length 400mm, thickness 100mm
Volume (WxDxH) 70x42x70cm
Weight: approx 70kg
Power: 1∮ AC220V ，2.6A
