Solar Cell Spread Of Flame & Burning Brand Test Chamber Test Equipment

UL1730 UL790 Solar Cell Spread Of Flame & Burning Brand Test Chember

Description:

This equipment virtually simulates an external fire to evaluate the resistance of the roof and other physical elements of fire, in order to qualify for the flame spread experiments(A~C class), in case of A 1.82m, B 2.4m and C 3.9m. It is an equipment to displacement of the testing material and the exposure and falling of the roof structure.

Standards:

UL 1730 : Smoke Detector Monitors and Accessories for Individual Living Units of Multifamily Residences and Hotel/Motel Rooms: Electrically operated annunciators for residential type smoke detectors.

UL 790 : Standard Test Methods for Fire Tests of Roof Coverings

IEC 61730-2 Annex.A: Fire Tests, Spread-of-Flame and Burning-Brand Tests

ASTM E 108-04: Standard Test Methods for Fire Tests of Roof Coverings

KS C IEC 61730-2 Annex .A: Fire resistance test, Spread-of-Flame and Burning-Brand Test.

Parameter:

Features:

Slop of Deck Plate can be easy to control by Air Cylinder.

Fire resistance board attached eaves of Test Deck.

Using auto control valve for adjusting temperature condition by Class.

– Class A, B : 760 ±28°C(1400 ±50°F) – 21,000 ~ 22,000 Btu/min(369 ~ 387 kWh)

– Class C : 704 ±28°C(1300 ±50°F) – 18,000 ~ 19,000 Btu/min(316 ~ 334 kWh)

Each gases supplied to Burner follows up different measurement and control way.

– LNG: Using MFM, accuracy flow measurement (Flow control is controlled by Auto Control Valve)

– LPG: Using MFC, accuracy flow measurement and control.

Inverter System gives maintain Air Velocity: 19±8 km/h(5.5m/sec) on the Test Deck.

Auto ignition way is adapted for test and ignite in the same time.

Guide Plate is attached in the Air Duct because of protecting of flow turbulence which is supplied to Test Deck.

Slop adjustment panel for adjusting of Air flow direction is installed in the Air Duct.

Individual burner is installed for burning-brand test.

Thermocouple is installed on 58.7mm from top of burning-brand burner, measures for temperature as 888±28°C.

Using DAQ system be programmed to have automatic control and measurement.

Equipment characteristic:
Structural parts
1, Plywood roof covering materials, dimensions: 1,300 (w) X1,000 (d) x120 (h), to
install the test sample;
2, Non-combustibility test Board, installed at the end of testing, can stop the test
panels tempered;
3, Stainless steel fan control board, the test angle can be adjusted,
size: 1,440 (l) x 940 (h) mm;
4, Used to support the testing of the main frame bracket, corrosion-resistant steel, dimensions: 1,020 (l) x 1,000 (d) x 1,473 (h) mm;
5, Non-combustible plate Assembly, installed in front of the frame to simulate the
eaves and cornice, extension of the flame from the burner to the specimen,
dimensions: 330 (w) x 2,130 (d) x 584 (h) mm;
6, Air flow rate for the test panel: 19 ± 8 km/h (5.5M/sec), and configure the
anemometer monitor;
7, Separate ventilation pipes, can be extracted from outside the laboratory air;
8, Honeycomb filter is installed in the air duct, installed gas inlet guide vane;
9, Ventilation ducts equipped with slope adjustment panel for adjusting the air flow direction;
10, Ventilation pipes attached to the Guide, can enhance speed to ensure supply test airflow from the outside interference, guide plates made of stainless steel, location does not change with the wind pressure;
11, Duct materials for stainless steel, corrosion-resistant and heat-resistant, size: 2,130 (w) x 762 (h) x 3,000 (l) mm;
12, Fan 220V,50HZ, three-phase power, is equipped with a reverse system can automatically adjust wind speed, minimum flow for 300m3/min;
13, Infinitely variable speed inverter, 0-100% adjustable;
14, Gas burners (for intermittent Shi Huo, flame spread and flying fire), 1.12m, 60.3mm, moving in the test side has a 12.7mm (w) *0.91m (long) slit;
15, Gas burner can provide a 22,000Btu/min (387kWh), and according to a, b, c three combustion levels, high-precision gas control valve controlling gas flow,
16, Top burner thermocouple is installed 58.7mm, 888 ± can test 28 ºC;
17, Automatic ignition system, ensure the security of test performance, ignition electrode 1.8kVp mass flow controller is the minimum pressure according to different standards, control gas flow rates, Class A and B:21,000 ~ 22,000 Btu/min (369 ~ 387 kWh) for 10 minutes, Class C:18,000 ~ 19,000 Btu/min (316 ~ 334 kWh) 4 minutes;
18, Temperature control system-Class A and B:760±28ºC (1400±50ºF)-21,000 ~ 22,000 Btu/min-Class C:704±28 c (1300±50ºF)-18,000 ~ 19,000 Btu/min
19, High precision pressure gauges and pressure regulating valve controls the gas pressure;
1)-Each transfer to gas in the burners need to follow a different test and control methods;
2)-LNG: using MFM can accurately measure flow (flow control valve control);
3)-LPG: air flow rate using the inverter system: the test deck at 19 ± 8 km/h (5.5M/sec);
20, Metallic mesh support materials, pallets can be rotated, so that full combustion of
materials;
Test section
1, Computer control system of United States special control software for Labview experiment, integration 10.2 “LCD scree;
2, Data acquisition systems, LabView programming language is used to program, data acquisition cards United States NI offers
3, Data acquisition system consists of the following parts:
1) 16-bit thermocouple input module
2) 16 bit a/d conversion input module
3) Data input/output module
4) 12 bit a/d conversion output module
5) 4 and 8-slot backplane
6) Labview modules
7) Labview/Ethernet network module
4, Brand testing systems, gas burners, the flame engulfed the burning material, the gas burner is 880±10ºC temperature can be adjusted;
The standard results
1, General standards for flame spread
1) Any part of the roof covering materials (component or Panel) from the test deck in flame or glowing particles blown,
2) Can slide through, split, curved roof covering materials, such as roof deck open,
3) Fire safety rating A: flame spread range is 1.82M,
Fire safety level B: flame spread range is 2.4M,
Rank C fire safety: fire spreading area is 3.9M,
Measured from the edge of the sample spread of flame,
2, General standards for roof combustion,
1) Any part or component of the Panel from the test deck in flames blowing or falling,
2) Parts of the roof deck or a part of a Panel in the roof structure or component in the form of luminous particles disappear,
3) Continue with components or panels of combustion,

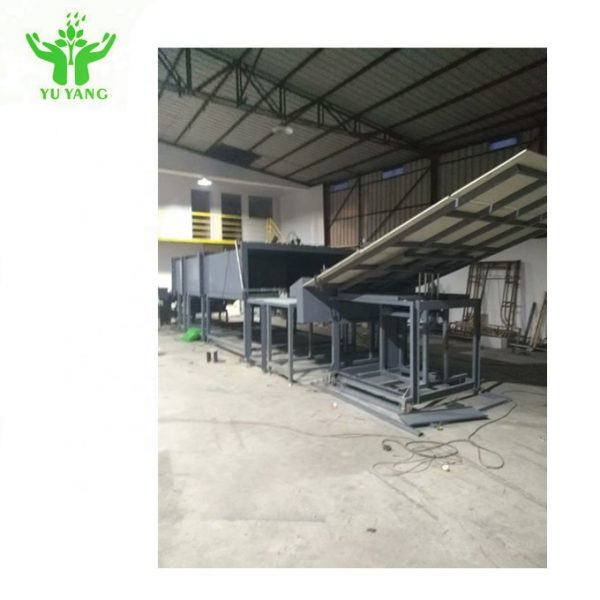

Product Display:
