Product Description
Our products have CE RoHS ISO9001 certificates and highly guaranteed in terms of quality
Two Years Warranty
*Support OEM customization
*Support 2-25.4mm printing height
*Support more than 40 languages
Handheld inkjet printer
*Support OEM customization
*Support 2-25.4mm printing height
*Support more than 40 languages

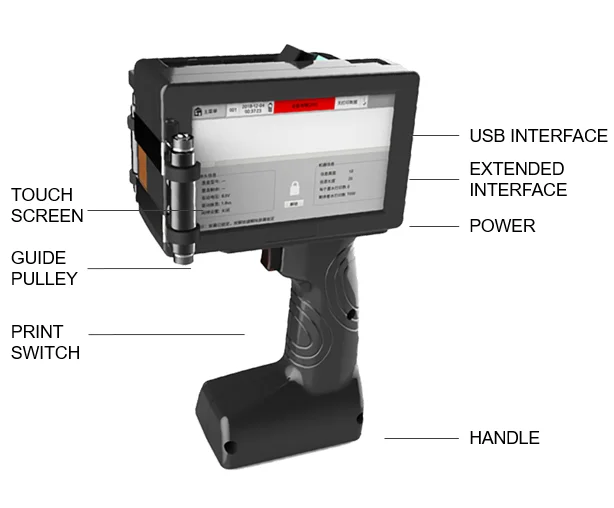

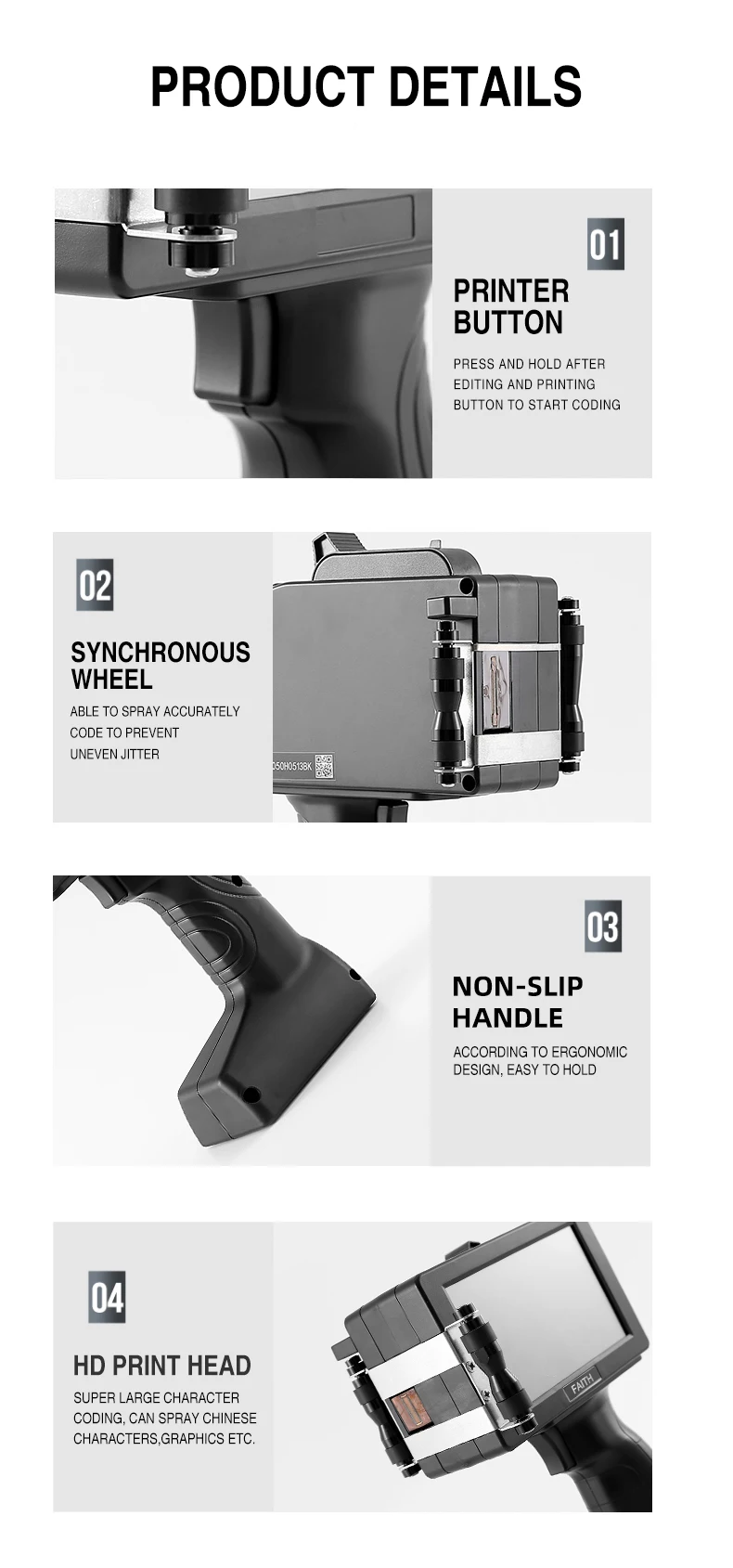

Portable intelligent hand-held inkjet printer
KD110/130-H，which can efficiently and flexibly print dynamic database, support traceability and anti-counterfeiting system, dynamic database real-time high-speed printing , powerful GS1 QR code and bar code function, to meet customers’ various applications. It can be widely used in packaging industry, pipes, profiles and other professional production lines, and is committed to solving your printing problems in all fields.
The size of the whole machine is small and the net weight is only 1.1kg. It can be used in hands. It supports printing in different colors and better meets the needs of customers

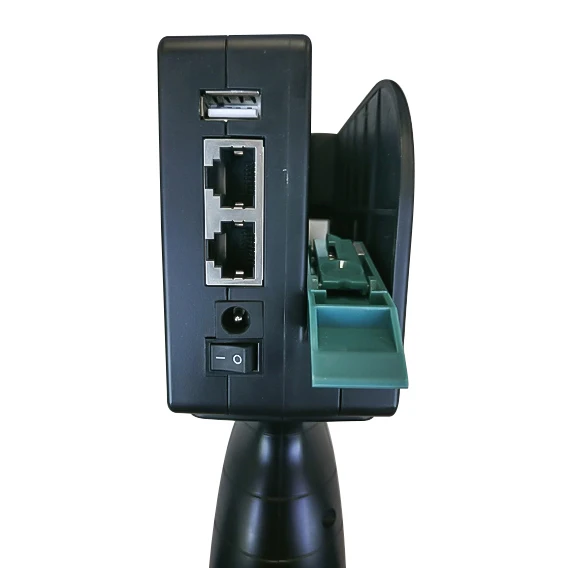

Two data interfaces, four types of information transmission
Interface type: USB, RJ45.
Users can store pictures (.bmp), text (.txt / .csv / .xlsx), database and EXCEL in the U disk to connect this machine to print directly.
Users can store pictures (.bmp), text (.txt / .csv / .xlsx), database and EXCEL in the U disk to connect this machine to print directly.
KD110-h hand held inkjet printerneeds to work with the cartridge
If you need ink cartridge ,please click here
Adopts American TI AM3358CPU.
Will not caused any stuck during operation.
Will not caused any stuck during operation.
Supports GS1 standard, which could satisfy the user’s traceability requirements by printing the worldwide recognized code on their products.
Print Material
If you have any question,please click here” contact us“!
Application
1、Adopting AM3358 Industrial High Performance CPU of TI Company of USA.Spartan 6 Industrial High Speed Computing FPGA of Xilinx Company
2、Printing engine adopts ASIC chipset for industrial TIJ printer.The main board adopts SMT manufacturing technology of anti-interference industrial solid state electronic components
3、Dust-proof, moisture-proof and corrosion-resistant industrial-grade protective fuselage. 7 inch industrial touch screen network USB serial alarm information control and other perfect external hardware interface
4、Suitable for obtaining stable printing quality under high-low temperature, dusty and humid interference environment
|
Spray printing parameters
|
Nozzle type
|
TIJ2.5 thermal foaming nozzle
|
|
Printing accuracy |
Resolution up to 600 × 600DP (longitudinal: 100DP1, 150Dp, 300DP, 600DP | horizontal: 30-600Dp precision adjustment) adjustable
printing gray level 1-6 |
|
|
Printing height |
The minimum printing speed is 1mm, the maximum printing height is 127mm/one inch, the maximum printing height is 254mm (the best
mass distance between the nozzle and the printing surface is 1-2mm) |
|
|
Printing speed |
406 meters / 90DP, 304 meters / 120DP, 240 meters / 150DP, 120 meters / 300DP, 60 meters / 600 DPI (multi-group variable data
ultra-high speed 10 should be printed within 10 milliseconds) |
|
|
Print content |
Multi-language characters / GS1 DataMatrix / dynamic trace QR code / barcode / graphics / serial number / date / shift / counter /
variable database / network serial real-time dynamic data printing… |
|
|
Printing material |
Carton/Plastic/Metal/Plate/Tube/Stone/Cable/Electronic Components/Auto Parts/ Packaging/ Food/Gift Box
|
|
|
Ink type |
Food grade, water-based, oily, weak solvent, solvent 42m ink cartridge, large-capacity ink bag continuous ink supply system
|
|
|
Ink color |
Black, white, red, yellow, blue, green, invisible, UV (food grade inks of various colors)
|
|
|
Ink cartridge chip
|
RF|D non-contact chip, automatic identification of ink parameters and recording ink remaining
|
|
|
The
machine parameters
|
operating system
|
Embedded Linux operating system
|
|
Main hardware
|
US TAM3358 industrial grade CPU, US Xilinx Spartan6 industrial grade FPGA, T|J dedicated ASC module
|
|
|
Communication Interface |
USB, RS232, TCP/P network port (support network remote centralized control management, symmetric heavy machine / conveyor / pager
/ packaging machine / ERP database |
|
|
External interface |
Optical Eye / Encoder / Alarm Control Input / Serial Number Transmission / External Serial Number Reset / External Serial Number
Update / External Sneeze Information Selection / Flip Reverse Control / Nozzle Port |
|
|
Nozzle installation |
Separate sprinkler installation can be seamlessly assembled with double nozzles, separate nozzles can be separated separately (1.8
m link cable) can be equipped with nozzles with anti-collision components |
|
|
Support language |
Support more than 40 countries and regions (Chinese / English / Arabic / Russian / French / Vietnamese / Korean / Burmese /
Indonesian / Hindi / Portuguese / Japanese / Spanish / Italian…) |
|
|
Power parameter
|
Power adapter 100-240V AC input 30∨4A DC output
|
|
|
Machine material
|
Industrial grade standard protective body (aviation grade aluminum / industrial grade stainless steel)
|
|
|
Machine specification
|
Host 202mm*119mm*61.2mm, nozzle group 112mm*79mm*103mm
|
|
|
working environment
|
Temperature 0-45 ° C / humidity 30-70% Rh
|
Packing & Delivery
We will use a high-hardness paper shell, inside with a sponge wrapped machine, to ensure that your goods intact.
|
Packing List
|
||||||
|
Title
|
Size(mm)
|
G.w(kg)
|
Remarks
|
|||
|
External Package
|
415*310*140
|
2.3
|
Card box packing
|
|||
|
Singel Packing
|
Items
|
Pics
|
Standard Packing
|
|||
|
Handheld Inkjet printer
|
1
|
|||||
|
U Disk
|
1
|
|||||
|
Stylus
|
1
|
|||||
|
12 .6 V charger
|
1
|
|||||
|
12V lithium battery pack
|
2
|
|||||
|
Suction clip / syrings
|
1
|
|||||
|
Ink cartridge
|
1
|
Extra Charge
|
||||
After payment is complete, your order will ship within 1-2 days.
We use express UPS, DHL, EMS, FedEx, and the package will reach your hand in 6-12 working days.
Our Company
Shenyang Faith Technology Co., Ltd. is a high-tech enterprise, which integrates independent research and development, production,sales and service.
It specializes in providing industrial coding technology and traceable system solutions. The company was founded in 2010 with a 30-person team and a 500㎡ production workshop. After more than 10 years of unremitting efforts, by early 2020, it has developed into an excellent team of 300 people and a 2500㎡ production workshop.
The company’s products mainly include laser marking machines, CIJ printers, TIJ printers, and conveyor belts. The products are exported to Spain, the United States,Brazil, Argentina, Chile, Saudi Arabia, the UAE, Egypt, Ecuador and other 126 countries, serving more than 200,000 customers.
The company’s philosophy is focus on coding, treats quality as the base and service-oriented principles. Shenyang Faith Technology’s vision is to become the most professional, caring and trustworthy enterprise in the printing industry.
Online After-sales Service 24 Hours
No matter you seek help at any place, any time, we can respond quickly excellent technical consultant, provide the best solution online.
Two Years Warranty
During the warranty period we provide professional, considerate and timely after-sales service.
Our Factory
We have our own factory, can provide the goods for you at the first time, if your goods have any problem, we can solve for you immediately.
Customer Feedback
Our products have been well received by customers, I hope you can rest assured that purchase.
