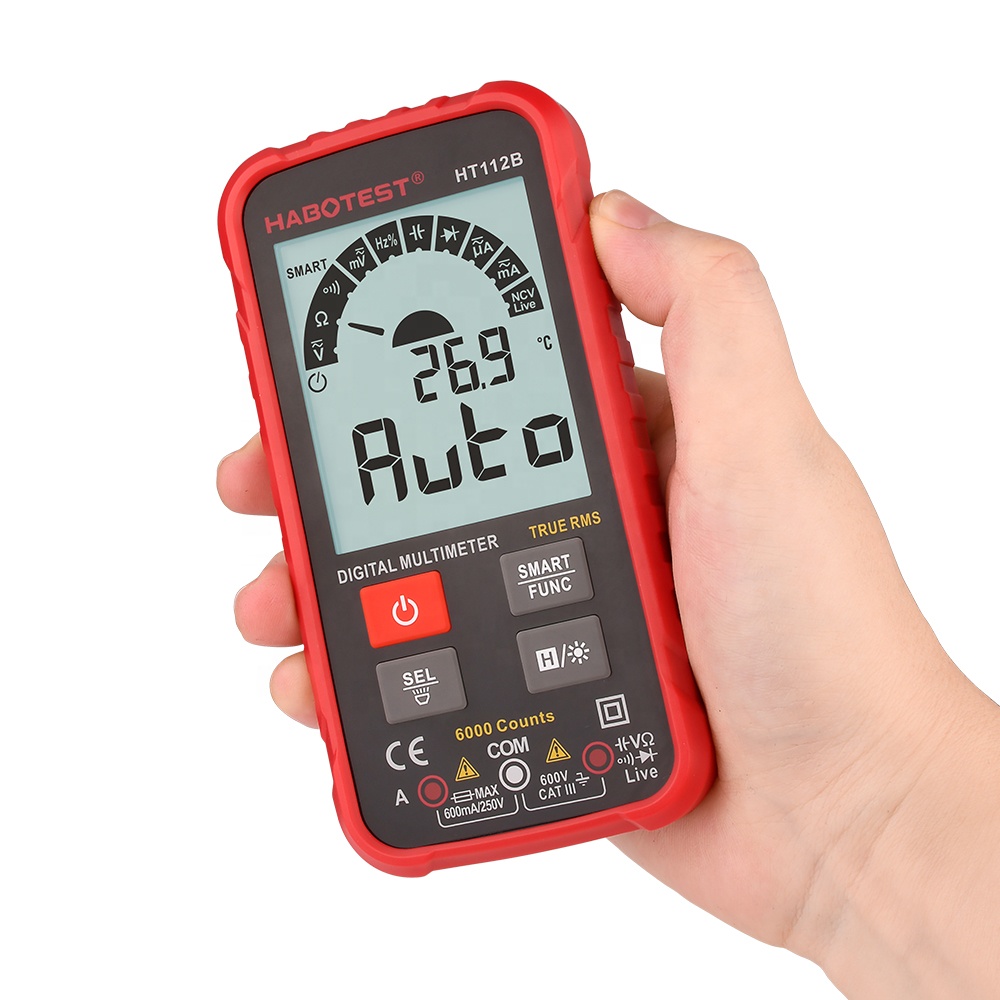

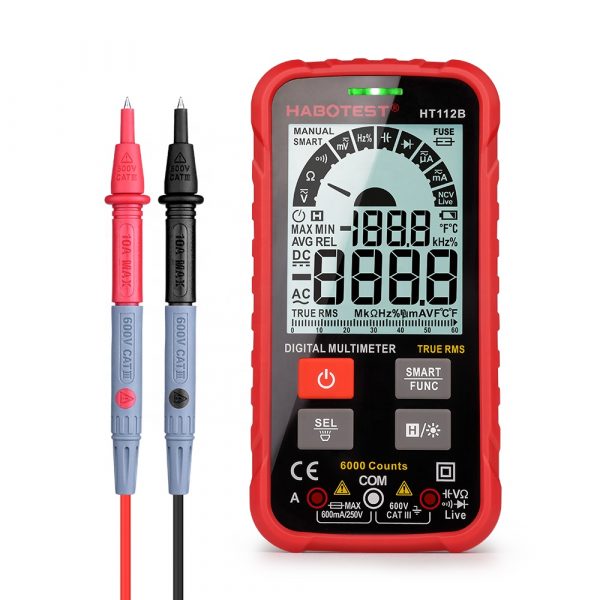

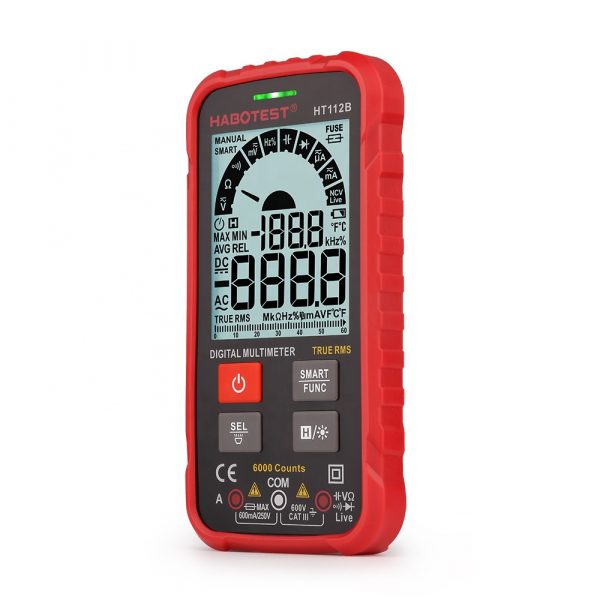

Smart MINI Digital Multimeter HT112B HABOTEST DC AC voltage Current Electrician tool Tester Large LCD Bar graph display
This 6000 counts Smart Digital Multimeter is Autorange with large clear LCD displaly, and Bar graph, LED indication light and features with AC DC current & voltage test,Diode Test, Continuity, Data hold, TRUE RMS function etc. high accuracy and easy operation face.
|
Function |
Range |
Accuracy |
||
|
112A |
112B |
|||
|
DC Voltage |
60mV/600mV/6V/60V/600V |
|
±(0.5%+3) |
|
|
2V/30V/200V/600V |
±(0.5%+3) |
|
||
|
AC Voltage |
60mV/600mV/6V/60V/600V |
|
±(1.0%+3) |
|
|
2V/30V/200V/600V |
±(1.0%+3) |
|
||
|
DC Current |
6000uA/60mA/600mA |
|
±(1.2%+5) |
|
|
20mA/200mA/600mA |
±(1.2%+5) |
|
||
|
AC Current |
6000uA/60mA/600mA |
|
±(1.5%+5) |
|
|
20mA/200mA/600mA |
±(1.5%+5) |
|
||
|
Resistance |
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ |
|
±(1.0%+5) |
|
|
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ |
±(1.0%+5) |
|
||
|
Capacitance |
6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF |
|
±(4.0%+5) |
|
|
Frequency |
10Hz/100Hz/1000Hz/10kHz/100kHz/1000kHz/10MHz |
|
±(1.0%+5) |
|
|
Duty |
1%~99% |
|
±(3.0%+5) |
|
|
Counts |
2000 Counts |
6000 Counts |
||
|
Auto/Manual range |
Auto |
Auto |
||
|
SMART Function |
√ |
√ |
||
|
Auto recognition of probe inserted into current input |
√ |
√ |
||
|
Tips of blow the fuse |
√ |
√ |
||
|
Live test |
√ |
√ |
||
|
NCV |
√ |
√ |
||
|
Diode test |
√ |
√ |
||
|
Continuity |
√ |
√ |
||
|
data hold |
√ |
√ |
||
|
True RMS |
√ |
√ |
||
|
Low battery indication |
√ |
√ |
||
|
Auto power off |
√ |
√ |
||
|
backlight |
√ |
√ |
||
|

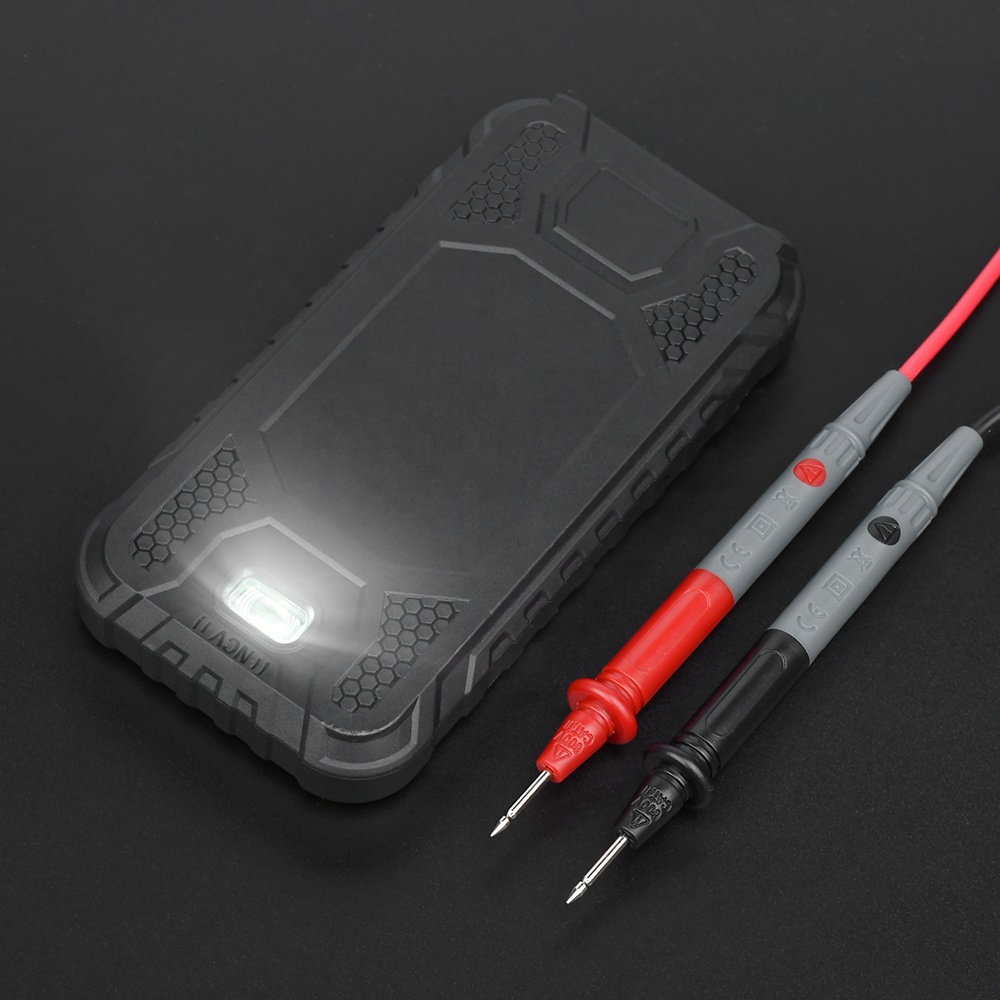

Flashlight |
√ |
√ |
||
|
Power |
2 x 3V CR2032 batteries |
|||
|
Safety Rating |
EN61010-2-030 EN61010-2-033 CAT III 600V |
|||
- Port: Shenzhen
- Lead Time :
-
Quantity(Pieces) 1 – 40 41 – 1000 >1000 Est. Time(days) 3 25 To be negotiated
Dongguan Habotest Instrument Technology Co.,Ltd is an innovation orientied technology enterprise with an over 20 years R&D team, injection molding, professional production line and assembly capabilities.
We offering professional and innovative measuring products as Digital Mltimeter, Digital Clamp Meter, Earth Resistane tester, Insulation Tester, Enviromental detector and other detecting insturments for the worldwide customers to meet the growing global market demend, we also provide electronic test tools, measurement solutions and ODM and OEM services to specific customers.
For providing qualified products and superior serivice to all customers, we have been always producing products which meet the industry standards, and creating unique innovative solutions in high-growth fields.
Habotest is currently developing test meters and instruments in an industry park nearly 5000 square meter facility. With this new facility, Habotest is capable to fully supply product demands from all customers across the world.
Our products is widely used in the field from industrial electronic installation, maintenance service to DIY and daily household needs.
