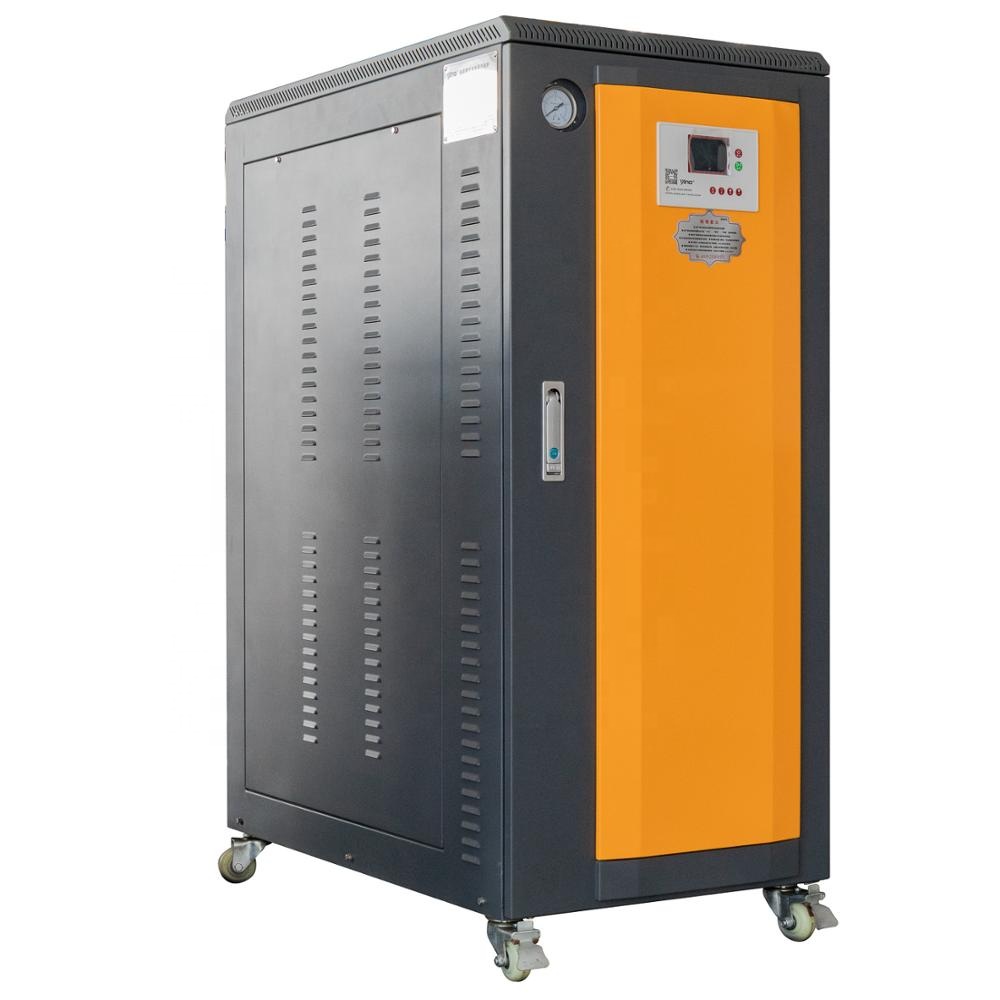

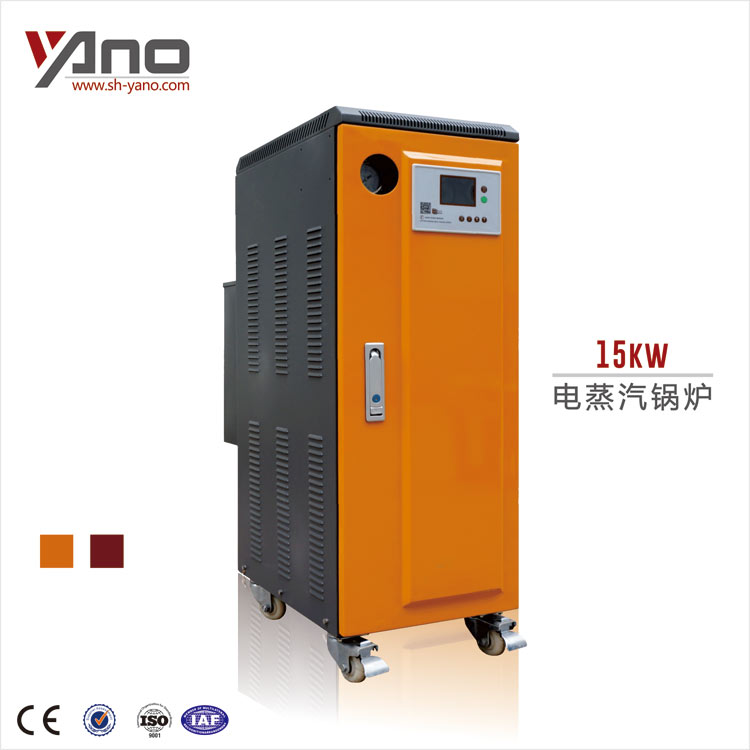

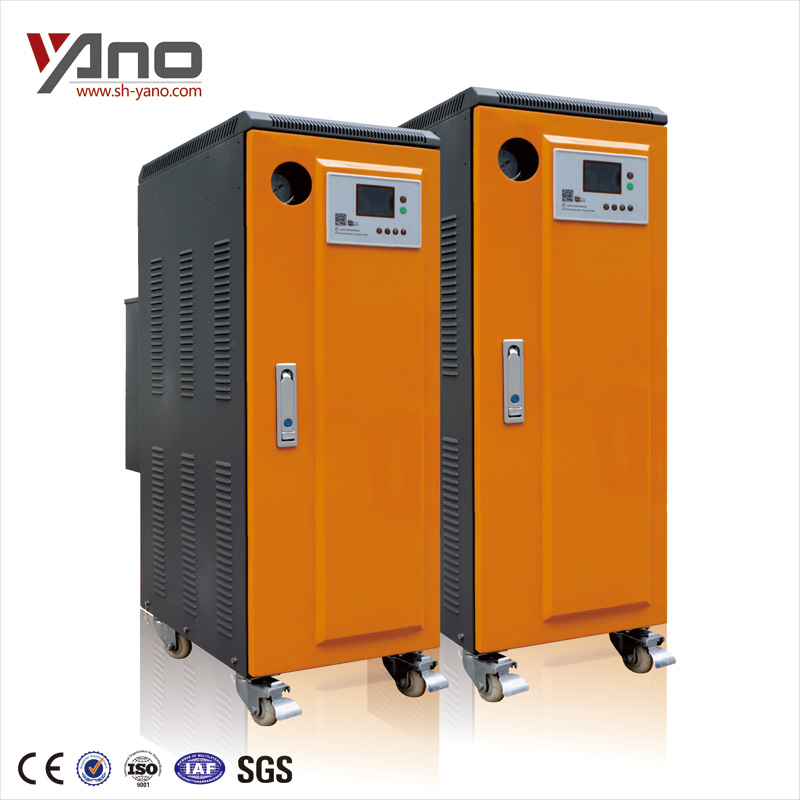

Small Steam Boiler for Tofu Machine
How to use ? (After finished piping)
A: press “ON” button on control panel
B: check pressure gauge, when up to 0.6Mpa, open steam valve, and use steam
Safety assurance:
A: pressure: through pressure control, when steam pressure up to set pressure, electric steam generator shut off automatically.
B: with high water level, low level, super high level protection
Advantage:
Safer Operation
Electric steam generators are flameless and safer. This eliminates the risk of flareback, firebox explosions, and smoke damage.
Economic
Electrical wiring is less expensive to run than steam piping. Not having a separate electric steam generator room or vented
exhaust saves money.
Product parameter
| Spec Type |
YN18- 0.7-D |
YN24- 0.7-D |
YN27- 0.7-D |
YN30- 0.7-D |
LDR 0.051-0.7 |
LDR 0.064-0.7 |
LDR 0.07-0.7 |
| Electric power(kw) | 18 | 24 | 27 | 30 | 36 | 45 | 50 |
| Rated evaporation(kg/h) | 25.8 | 34.4 | 38.7 | 43 | 51 | 64 | 70 |
| Source voltage(V) | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Rated pressure(MPa) | 0.7 /10. | 0.7 /1.0 | 0.7/1.0 | 0.7/1.0 | 0.7 | 0.7 | 0.7 |
| Steam temperature(°c) | 170/185 | 170/185 | 170/185 | 170/185 | 170 | 170 | 170 |
| Power wire(mm2) | 10 | 10 | 10 | 10 | 16 | 16 | 25 |
| Dimension(mm) |
650*420* 1250 |
650*420* 1250 |
650*420* 1250 |
650*420* 12500 |
880*600* 1360 |
880*600* 1360 |
880*600* 1360 |
| Steam caliber(mm) | DN15 | DN15 | DN15 | DN15 | DN20 | DN20 | DN20 |
| Drain outlet caliber(mm) | DN15 | DN15 | DN15 | DN15 | DN20 | DN20 | DN20 |
| Water inlet caliber(mm) | DN15 | DN15 | DN15 | DN15 | DN15 | DN15 | DN15 |
| Weight(kg) | 120 | 120 | 120 | 130 | 230 | 230 | 250 |
