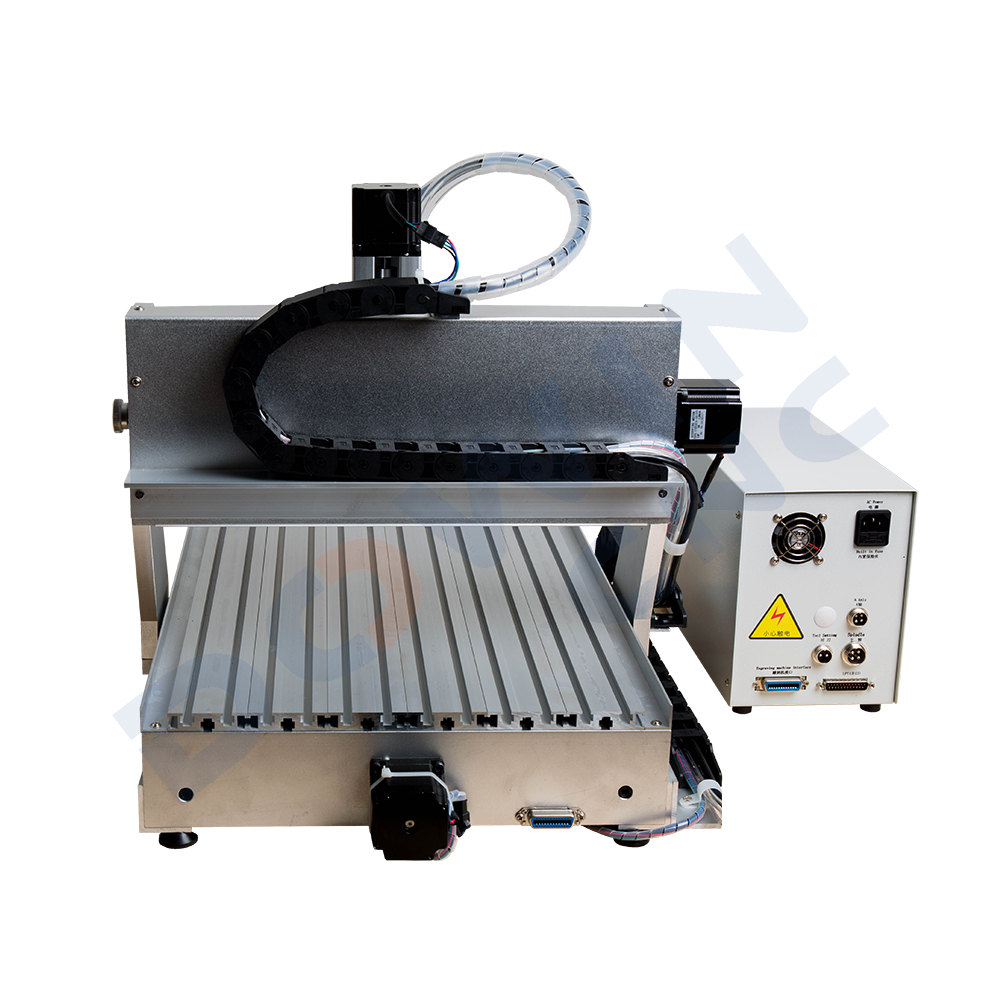

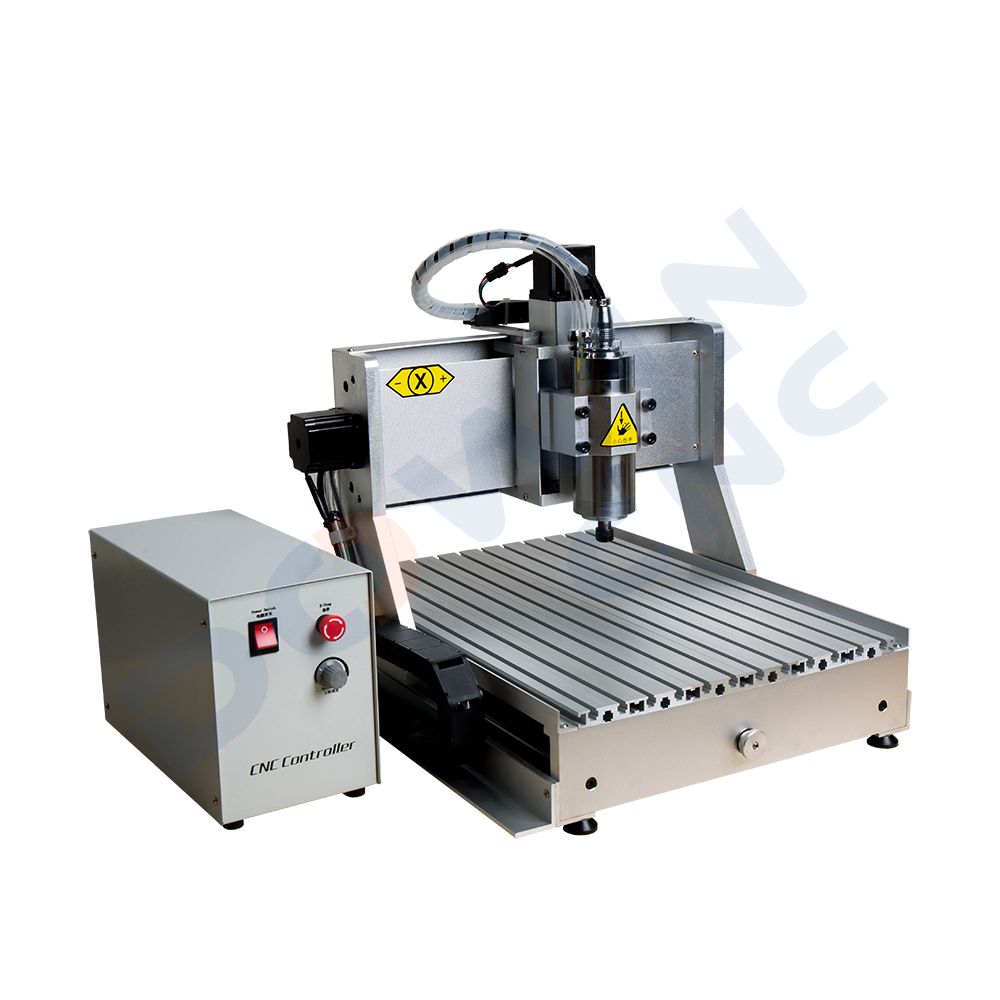

Small size portable 2030 cnc router engraver and cutter machine for aluminium profile metal cnc laser cutting machine
The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.

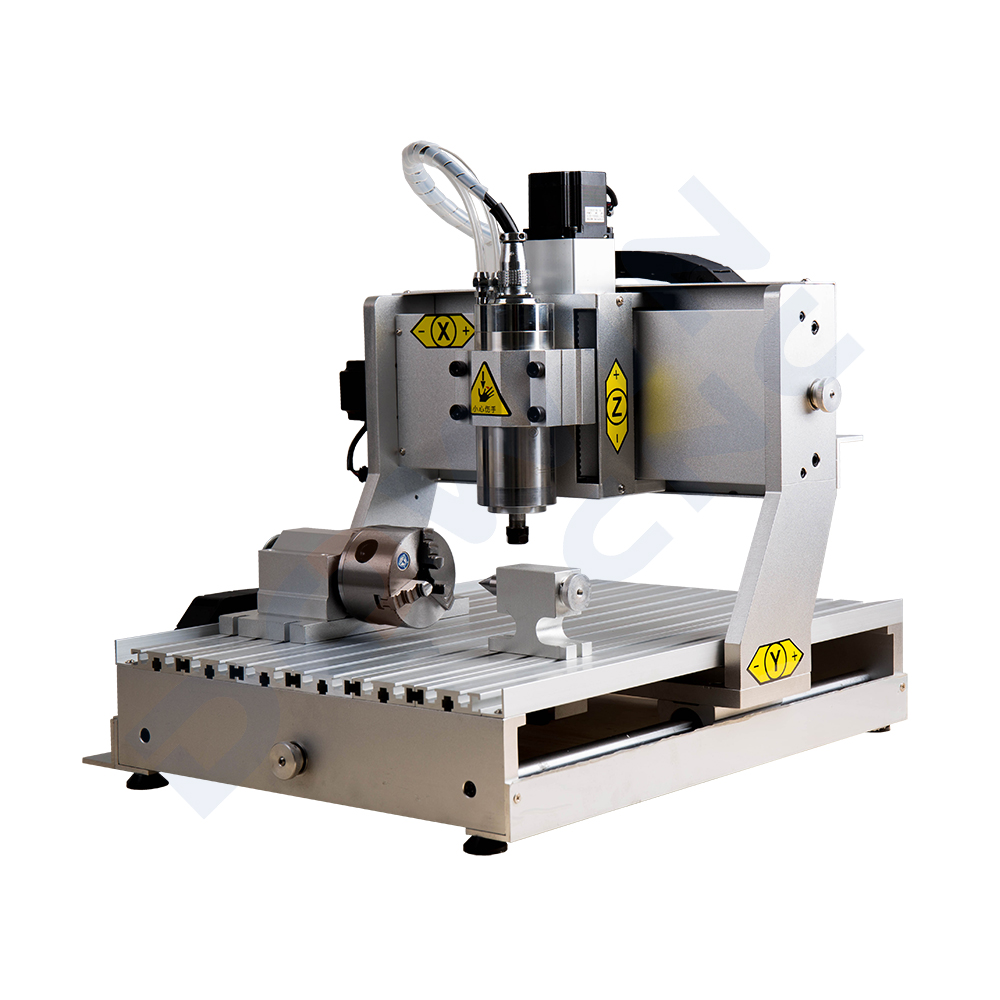

In addition, it can be upgraded to be installed a rotational axis
|
Model: |
DW-2030CNC |
|
Rack material: |
6061 and 6063 Hard aluminum alloy |
|
Engraving area: |
400X300mm |
|
Z-Axis Stroke: |
80mm, Engraving depth depends on the length of the tool edge |
|
Acceptable material thickness: |
≤80mm |
|
Rail type: |
Chromeplate shaft + Linear Bearings, Surface hardening 61HRC |
|
Type of screw: |
Ball screw 1605, Pitch 4mm |
|
Spindle motor: |
500W/800W VFD water cooling spindle , 0-24000r/min |
|
Collet type: |
ER11,1/8″(3.175mm) Collet |
|
Stepper motor and drive: |
two-phase hybrid stepping motor 57BYGH56-4011YD, 8 segments drive. |
|
Maximum operating speed: |
4000mm/min (Engraving speed : 300-3000mm/min) |
|
Repeat positioning Accuracy: |
0.03mm |
|
Communication interface: |
USB port |
|
Software Compatability: |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) |
|
Command code: |
G code/.nc/.ncc/.tab/.txt |
|
Machine weight: |
50kg |
Small size portable 2030 cnc router engraver and cutter machine for aluminium profile metal cnc laser cutting machine
Small size portable 2030 cnc router engraver and cutter machine for aluminium profile metal cnc laser cutting machine
Sale a and after-sale Service:
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
DOWIN CNC
Factroy focus on researching and manufacturing laser machine for 11 years.
Dowin signs tech Co., Ltd. specializes in R&D and production of various laser equipment, such as laser cutting machine, laser engraving machine,laser marking machine and cnc router machine. All series machines are with One-three year’s warranty. Also our service support various languages, like English, Spanish, Russian,and so on. Meanwhile, customized equipment are available according to different requirements.Within the laser engraving and cutting field, Dowinlaser has passed CE qualifications.Which assures high-efficient production and products’ reliability. After years of hard work, Dowinlaser’s products have made presence in more than 100 Countries such as North America, West Europe, South Asia, South America and Mid East etc…
What we offer :
100% quality machine, 120% service .
Email replied in 24 hours ,Mobile/Whatsapp/Wechat 7*24 hours online
Contact:Summer
Skype:Summer Chiao
QQ:2201738552
Wechat or Whatsapp:+8617788130246
