Contact us for Wholesale Price
Embedded Mini Fixed Mount Barcode Scanner Module Scan Engine
1D Laser / 1D CCD / 2D
Support customization !!! Support second development
Just tell us your requirements
Products Description
|

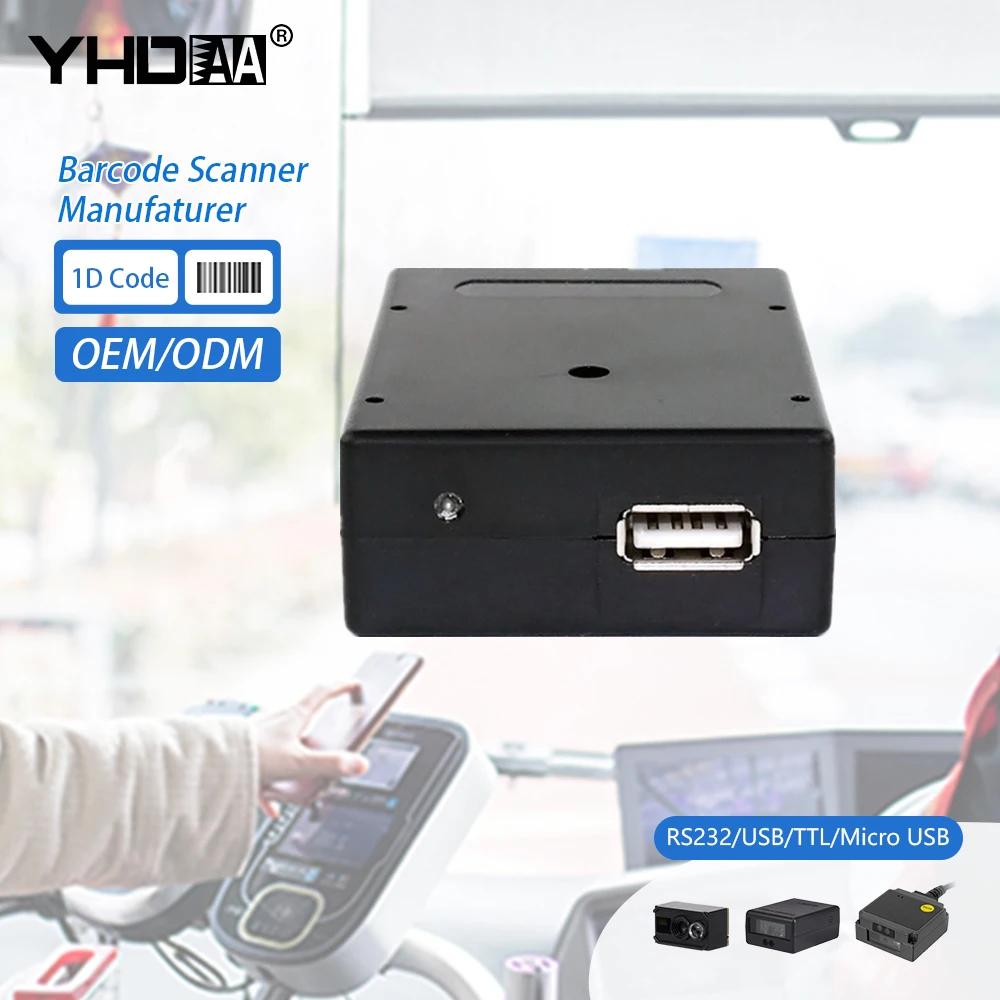

Model: YHD-M100L 1D Embedded Mini Barcode Scanner Module Scan Engine
|
||||||||
|
Optical Source
|
650nm Visible red light diode
|
Material
|
ABS+PC
|
|||||
|
Imaging Sensor
|
Laser
|
Relative Humidity
|
5 ~ 95%
|
|||||
|
Indication
|
Buzzer & LED
|
Printing Contract
|
≥ 25%
|
|||||
|
Resolution
|
4mil
|
Interface
|
RS232,USB,TTL,Micro USB
|
|||||
|
Trigger Mode
|
Continuous,Auto-Induction
|
Decoding speed
|
300scans/sec
|
|||||
|
Scanning angle
|
±60°，± 65°， ± 42°
|
Bit error rate
|
1/5millon
|
|||||
|
Temperature
|
Working : -20℃-60℃
|
Temperature
|
Storage: -40℃-70℃
|
|||||
|
Dimension
|
70×50×23 mm
|
Weight
|
47g
|
|||||
|
Current Working
|
156mA(Max)
|
Working Voltage
|
DC3.3 V ± 10%
|
|||||
|
Current Stand-by
|
52mA
|
Drop test
|
1.5m
|
|||||
|
Decode Capability
|
1D Code：UPC-A，UPC-E，EAN-8，EAN-13，Code 128， Code 39，Code 93，Code 11，Interleaved 2 of 5，Matrix 2 of 5，Standard 2 of 5,Coda bar，MSI Plessey，RSS，etc.
|
System Compability:
Linux、Android、Windows XP、 7、8、10、11，MAC |
Extremely small and easy to embedded into miniature equipment.
|
|||||
Small Fixed Barcode Scanner Module Engine Laser Bar code Reader Module for Kiosk Equipment Vending Machine RS232 USB Interface
Features

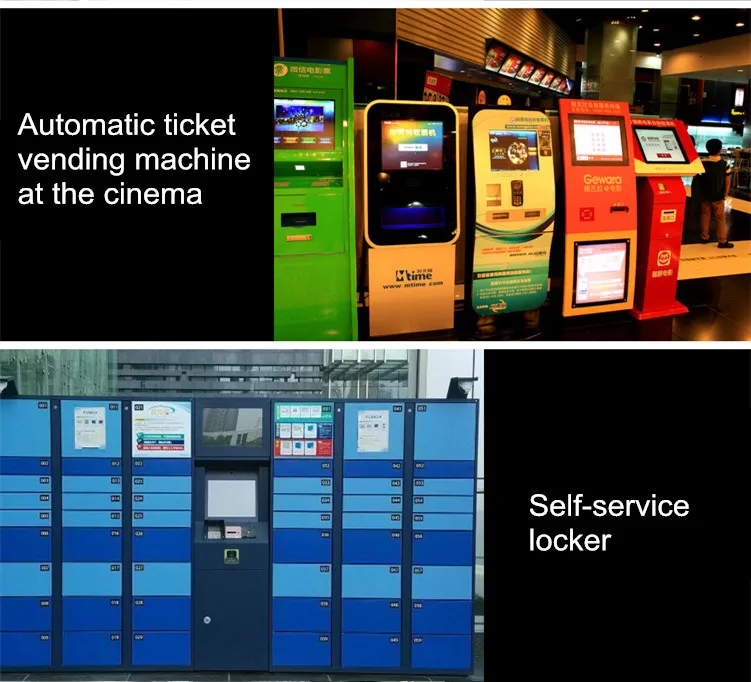

* Mini Size: 7 *5 *2.3cm/ 2.7 *1.9 *0.9in. * Fast and accurate in reading 1D codes. * Plug and play, driver-free, convenient for usage. * Supports Continuous/Auto-Induction , 2modes for option. * Small size,easily to integrate into any device, especially for limit space application. * Auto-sensing scanning saves power and time — when the product barcode passes through the scanning window, the module wakes up to read the barcode instantly. * Support secondary development — the serial port development instruction is complete to satisfy each kind of host computer control interactive demand. * Application fields: parcel locker,supermarket locker, ticket machine, self-service vending machine, intelligent express cabinet, kiosk,locker, access control machine,self-service store, check-in machine, bank counter machine, factory assembly line,logistics, hospital,etc. * Can be customized according to customer demand.
* Mini Size: 7 *5 *2.3cm/ 2.7 *1.9 *0.9in. * Fast and accurate in reading 1D codes. * Plug and play, driver-free, convenient for usage. * Supports Continuous/Auto-Induction , 2modes for option. * Small size,easily to integrate into any device, especially for limit space application. * Auto-sensing scanning saves power and time — when the product barcode passes through the scanning window, the module wakes up to read the barcode instantly. * Support secondary development — the serial port development instruction is complete to satisfy each kind of host computer control interactive demand. * Application fields: parcel locker,supermarket locker, ticket machine, self-service vending machine, intelligent express cabinet, kiosk,locker, access control machine,self-service store, check-in machine, bank counter machine, factory assembly line,logistics, hospital,etc. * Can be customized according to customer demand.
