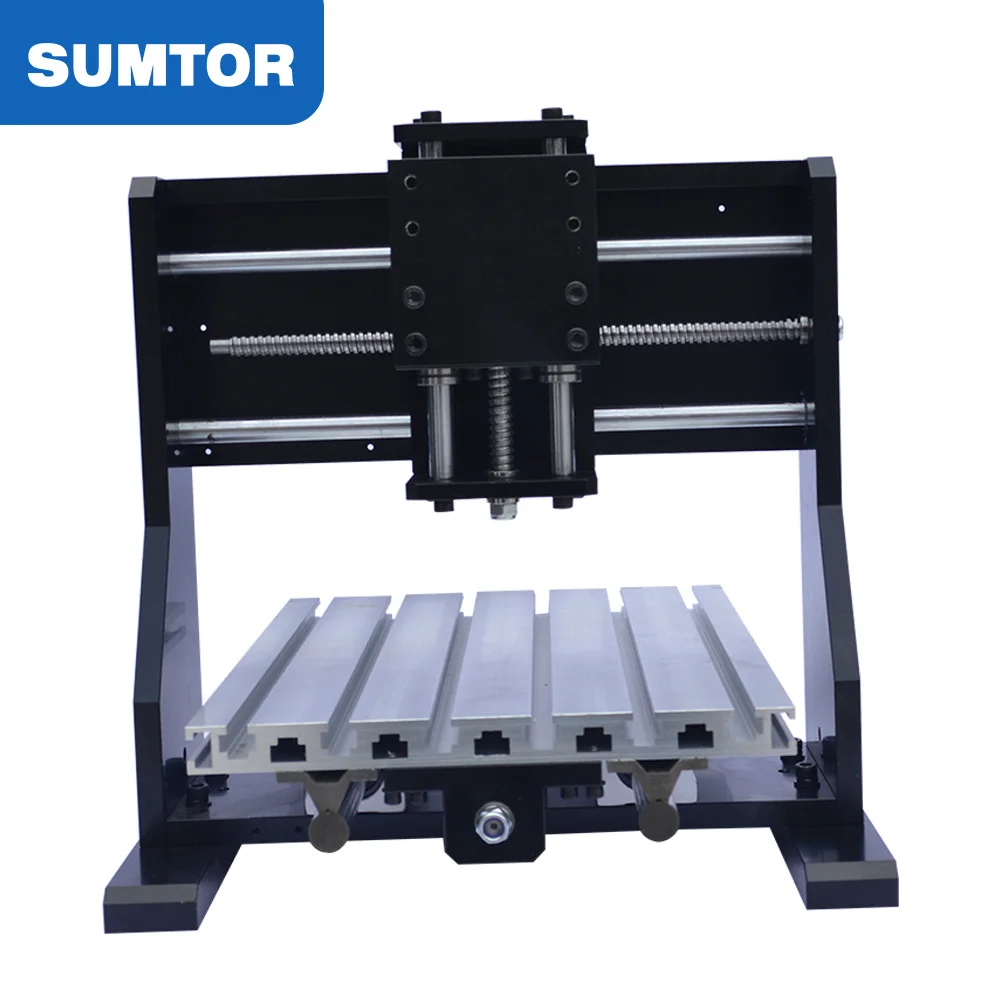

Small 3d Cnc Wood Engraving Machine Frame with 50mm Chuck 4 Axis Automatic Router for Carving
Small 3d Cnc Wood Engraving Machine Frame with 50mm Chuck 4 Axis Automatic Router for Carving - Image 2
Small 3d Cnc Wood Engraving Machine Frame with 50mm Chuck 4 Axis Automatic Router for Carving - Image 3
Small 3d Cnc Wood Engraving Machine Frame with 50mm Chuck 4 Axis Automatic Router for Carving - Image 4
Small 3d Cnc Wood Engraving Machine Frame with 50mm Chuck 4 Axis Automatic Router for Carving - Image 5
Small 3d Cnc Wood Engraving Machine Frame with 50mm Chuck 4 Axis Automatic Router for Carving - Image 6

Small 3d Cnc Wood Engraving Machine Frame with 50mm Chuck 4 Axis Automatic Router for Carving

This product is currently out of stock and unavailable.

Print Send to a friend
SKU: 212180816019181 Categories: , ,
small 3d cnc wood engraving machine frame with 50mm chuck 4 axis automatic router for carving
Product Description
1520 ball screw engraving machine frame
Working operation: X/Y/Z=200/150/60mm
Maximum machining workpiece thickness: ≤60mm
Bed dimension: length*width=310*240mm
PositionaI accuracy: <0.03mm
Frame materials: 6061 hard aluminum alloy
Drive unit: Ball screw/trapezoid rod (with clearance nut)
Control system: MACH3 (can also change other control systems)



detailed part

Application Areas
Production process
winding line
stator waveform check
wiring
R cover assembly
F cover assembly
driver a screw
magnetizing
characteristic check
axis height check
visual inspection
attach a label
packaging
