Small 180m Water Well Drilling Rig Kit Bit Pipe Drilling Rig 180 150 Meter m Water Well Drilling Rig for Water Well Machine

ر.س466.27 – ر.س809.95

Qty:
Print Send to a friend
SKU: 212456682019181 Categories: , ,
Diesel Compressor for Water Well Drilling Rig
18bar 260psi
22bar 320psi
24bar 350psi
25bar 360psi
650cfm   18m3/min
800cfm   22m3/min
1000cfm   29m3/min
1100cfm   31m3/min
Cummins engine 162kw
Cummins engine 228kw
Cummins engine 295kw
Cummins engine 309kw
30bar 450psi
16bar 235psi
18bar 260psi
20bar 450psi
1300cfm   36m3/min
650cfm   18m3/min
700cfm   20m3/min
800cfm  22m3/min
Cummins engine 410kw
Cummins engine 132kw
Cummins engine 164kw
Cummins engine 194kw
Product Specification
ZG180 Crawler Water Well Drilling Rig Specification
The weight (T)
5.2
Drill pipe diameter (mm)
Φ76 Φ89
The hole diameter (mm）
140-254
Drill pipe length (m)
1.5m 2.0m 3.0m
Drilling depth (m)
180
Rig lifting force (T)
12
One-time advance length (m)
3.3
Rapid rise speed (m/min)
20
Walking speed (km/h)
2.5
Fast feeding speed (m/min)
40
Climbing angles (Max.）
30
Width of loading (m)
2.4
Equipped capacitor (kw)
60
Hoisting force of winch (T)
—-
Using air pressure (MPA)
1.7-2.5
Swing torque (N.m)
3200-4600
Air consumption (m3/min)
17-31
Dimension (mm)
4000×1630×2250
Swing speed (rpm)
45-70
Equipped with hammer
Medium and high wind pressure series
The penetration efficiency (m/h)
10-35
High leg stroke (m)
1.4
The engine brand
Yuchai engine

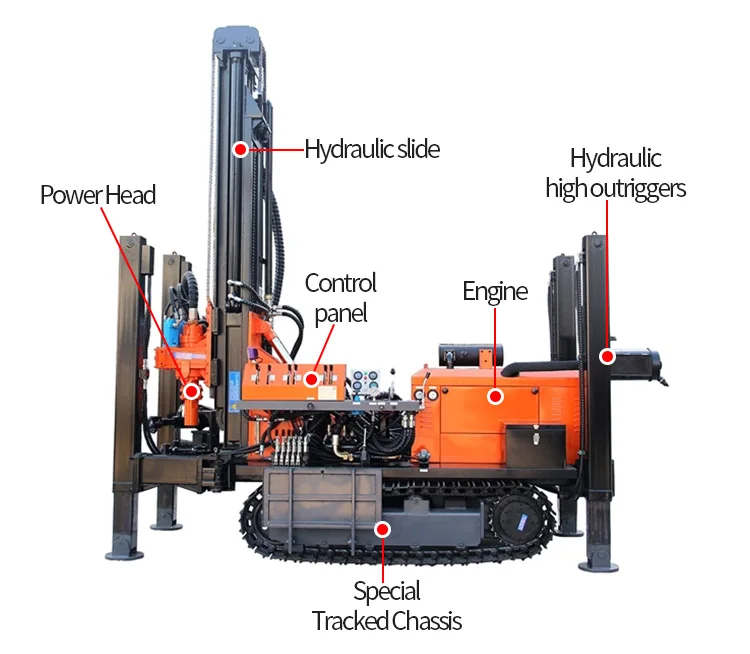

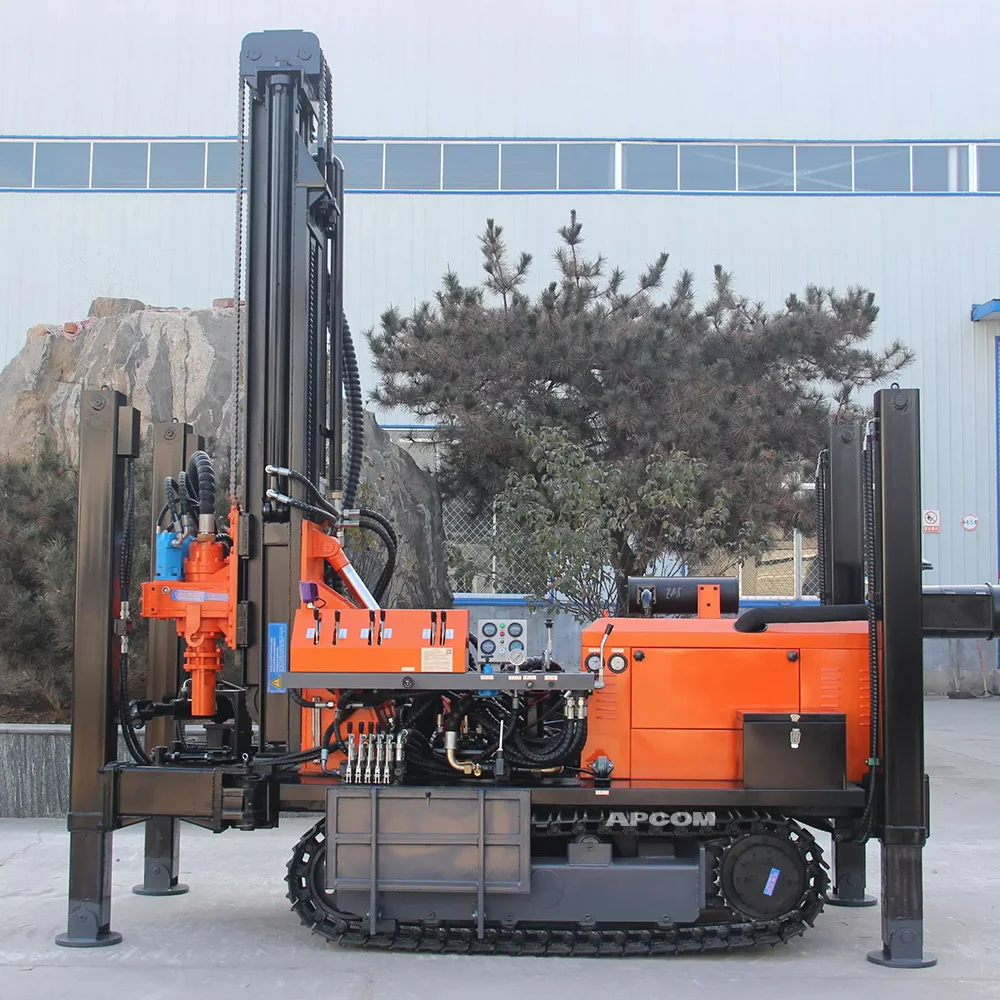

Details Images

Online 24 hours

WhatsAp: +86-137-0579-6425 WhatsAp: +86-181-6701-6615

Consttruction case
Contact customer service for more construction cases
