Specification
|
Model Number
|
SM206
|
|
Operating Temperature
|
0~50℃
|
|
Dimensions
|
132*65*38mm
|
|
Model
|
SM206
|
|
Display
|
3-3/4 LCD display, maximum 3999
|
|
Shift
|
<±3% /year
|
|
Sampling Time
|
0.25 seconds/time
|
|
Operating Temperature and Humidity
|
0~50℃, <80%RH
|
|
Storage Temperature and Humidity
|
-10~60℃, <70%RH
|
|
Size
|
132*65*38mm
|
|
Resolution
|
0.1W/m2, 0.1 Btu/(ft2-h)
|
|
Range Error
|
± 10W/m2 [±3 Btu/(ft2-h)] or ±5% of the measured value Temperature
|
|
Temperature Error
|
±0.38W/m2 / °C [ ±0.12 Btu/(ft2-h)/°C] deviation at 25°C
|
|
Overload Display
|
"OL"
|
|
Measurement Range
|
0.1-399.9 W/m2, 1-3999 W/m2, 0.1-399.9 Btu/(ft2-h), 1-3999 Btu/(ft2-h)
|
|
Battery
|
9V battery (NOT included)
|
|

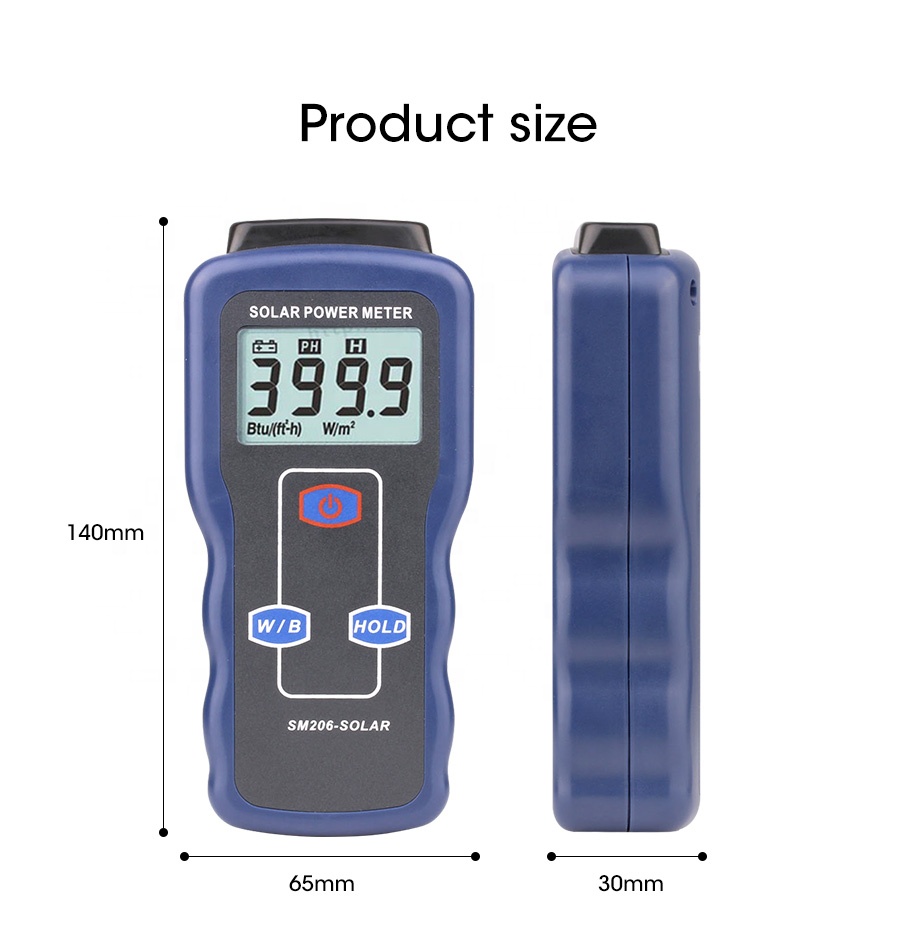

Size
|
132*65*38mm / 5.2*2.6*1.5in
|

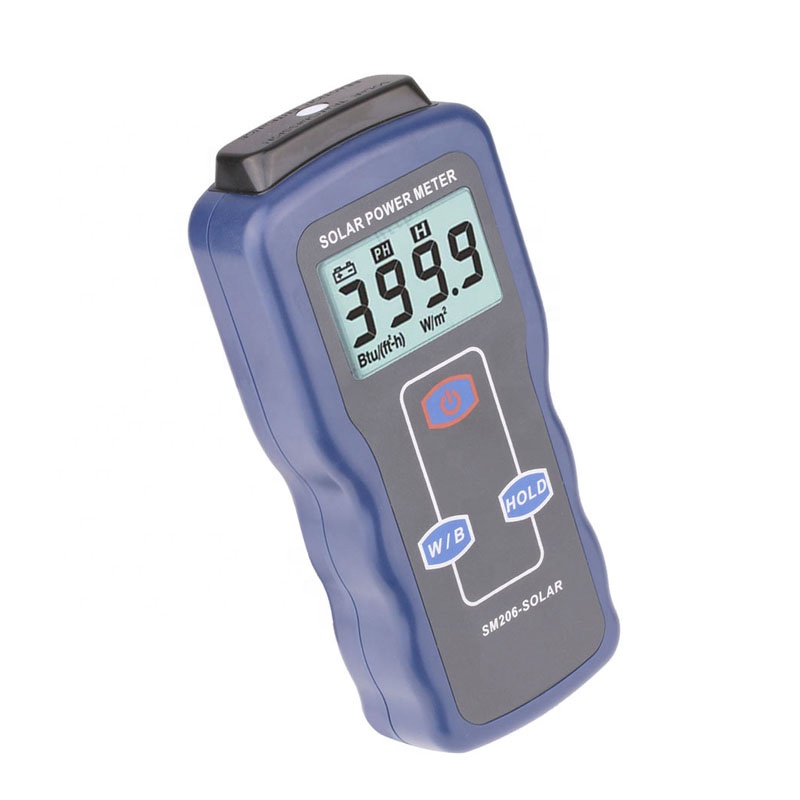

SM206 Solar Power Meters Light Meter Mini Solar Lipo Charger Board Solar Radiation Tester 0.1-1999.9 Solar Lux Power Meter
Features:
This meter is a precision instrument measuring the intensity of sunlight.
There are two units that can be selected: W/m⊃2; and Btu.
It supports maximum value hold function and data hold function.
Measure directly without adjustment, steadily measure for a long period.
Widely used for solar radiation measurement, solar energy research, meteorology, agriculture, physical and optical experiments.
It can also be used to measure the light transmission intensity of glass to verify the performance of the glass, for example, car window performance test.
This meter is a precision instrument measuring the intensity of sunlight.
There are two units that can be selected: W/m⊃2; and Btu.
It supports maximum value hold function and data hold function.
Measure directly without adjustment, steadily measure for a long period.
Widely used for solar radiation measurement, solar energy research, meteorology, agriculture, physical and optical experiments.
It can also be used to measure the light transmission intensity of glass to verify the performance of the glass, for example, car window performance test.
Package list:
1 * Solar Radiation Measuring Instrument (battery is NOT included)
1 * User Manual
1 * Packing Box
1 * Solar Radiation Measuring Instrument (battery is NOT included)
1 * User Manual
1 * Packing Box
