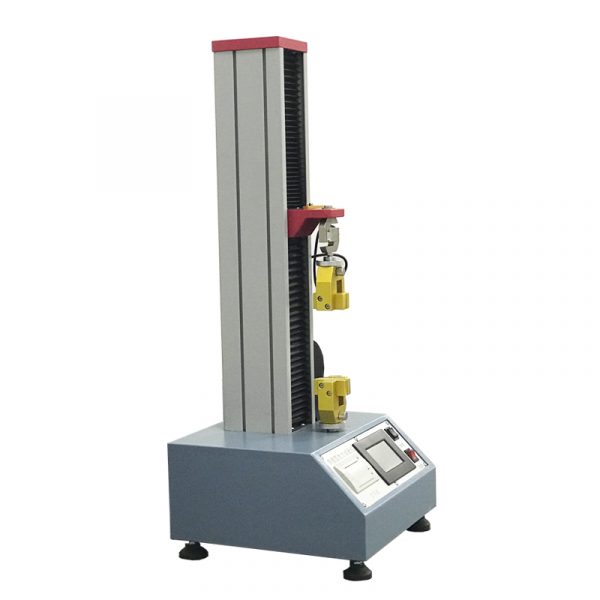

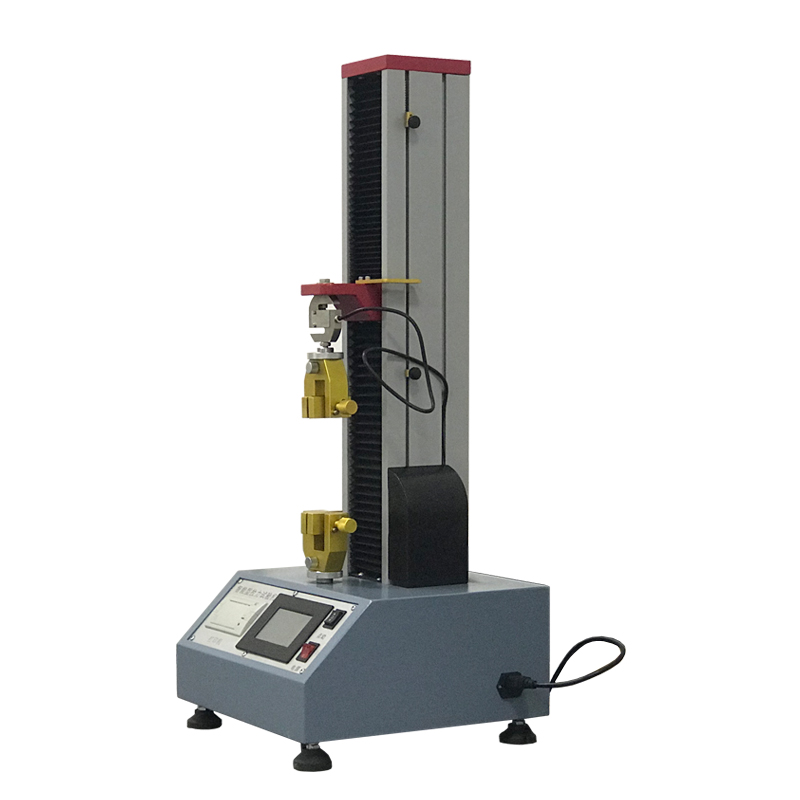

universal tensile testing machine
structure type: | Single arm structure |
Maximum test force (N): | 1000N |
Test force level: | Level 1 |
Test force measurement range: | 2%–100%FS |
Test indication relative error: | ±1% of the indicated value |
Force resolution: | 1/100000 |
Displacement measuring device: | Photoelectric encoder |
Displacement indication relative error: | ±1% of the indicated value |
Displacement resolution (mm): | 0.01 |
Displacement rate (mm/min): | 1-500 stepless speed regulation |
Safety protection device: |
Mechanical limit protection and software overload protection |
Effective stretching space (mm): | 400 |
Stretching fixture: | According to material selection |
Mainframe dimensions (mm): | 420×280×680 |
Host power: | 0.3KW/AC220V±10% |
Host weight (KG): | 60 |
About the after sale service:
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers.
If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
About the production time:
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
About the install:
Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
