Product Description
Description

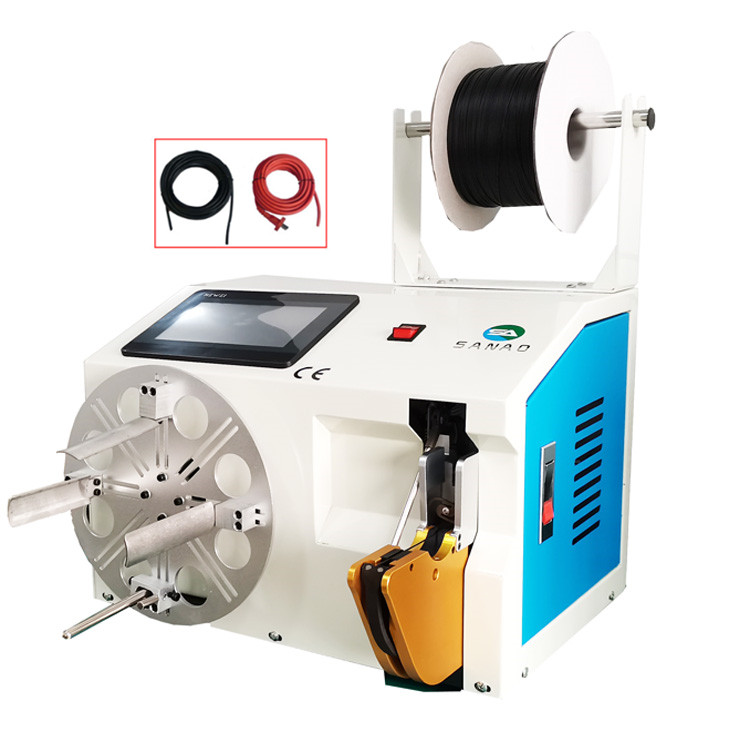

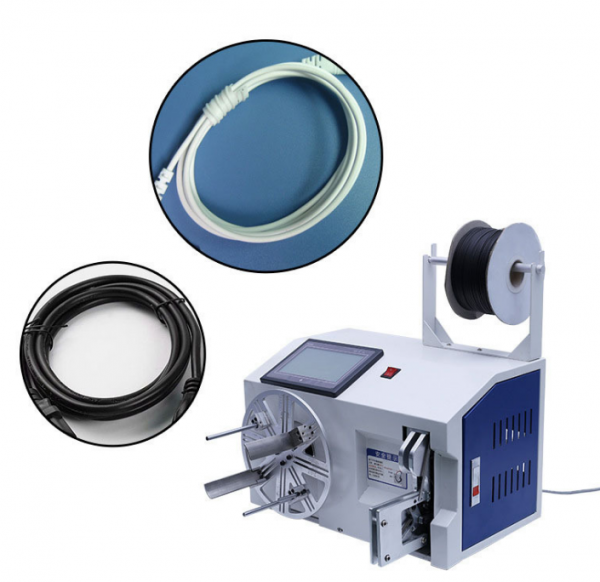

This equipment is suitable for optical fiber connectors, optical fiber jumpers, AC power cords, DC power cords, USB data cables, earphone cables, RCA cables, video cables, HDMI high-definition cables and other transmission lines that are twisted into bundles with rubber cores. It can also be used for tapes and other applications that require rubber-coated iron core sealing. This machine can reduce the fatigue strength of employees, improve work efficiency, and save cable ties. Employees only need to put the wire on the winding port to automatically wind the wire, and then put the wound wire at the wire binding port, and the machine can automatically tie the tape. This machine can be used to set the cable length, the number of turns, the number of coils, and the speed of the winding, as well as the output count. This machine adopts PLC program control, text display for parameter setting, and the operation is simple and convenient.
Installation Instructions
Product Paramenters
|
Power supply voltage
|
AC220V
|
||
|
Power frequency
|
50HZ/60HZ
|
||
|
Rated power
|
80W
|
||
|
Winding size
|
can be adjusted (50-150MM)
|
||
|
Winding speed
|
can be set by yourself (1-30 gears)
|
||
|
Number of windings
|
can be set by yourself (1-999 turns)
|
||
|
JIASU-30A new style
|
60-140
|
Φ05-40mm
|
|
|
JIASU-40A new style
|
150-260
|
Φ30-70mm
|
|
|
JIASU-25A
|
75-130
|
Φ05-25mm
|
|
|
JIASU-35A
|
120-200
|
Φ05-40mm
|
|
|
Number of coils
|
can be set by yourself (recommended 2-6 turns)
|
||
|
Thread tie speed
|
can be set by yourself (1-3 gears (recommendation 2)
|
||
|
Recommended PE material for cable tie
|
coated iron core
|
||
|
Protection device
|
fuse, fault alarm shutdown
|
||
|
Dimensions (/LXWXH)
|
350x250x220mm
|
||
|
Total weight
|
12Kg
|
||
