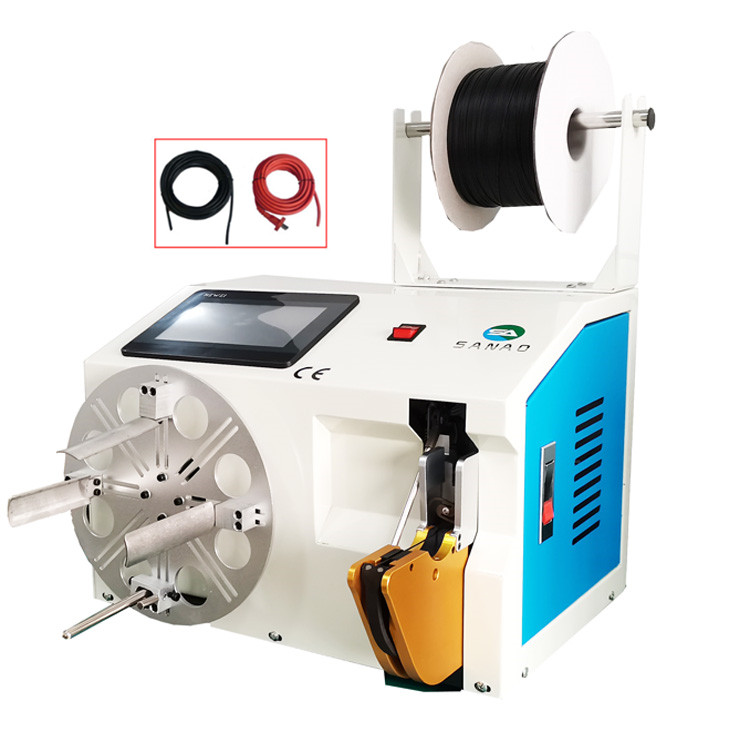

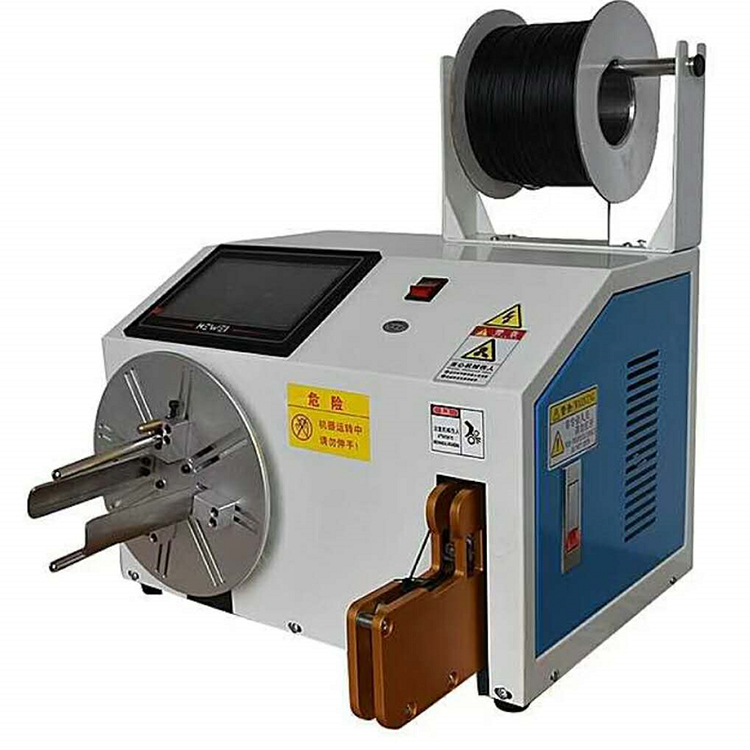

Semi automatic wire cable winder binding machine cable coiling machine cable winding and tie machine

ر.س4,084.61

Clear
Qty:
Compare

Request quotation for: Semi automatic wire cable winder binding machine cable coiling machine cable winding and tie machine

Product Description
Description
This equipment is suitable for optical fiber connectors, optical fiber jumpers, AC power cords, DC power cords, USB data cables, earphone cables, RCA cables, video cables, HDMI high-definition cables and other transmission lines that are twisted into bundles with rubber cores. It can also be used for tapes and other applications that require rubber-coated iron core sealing. This machine can reduce the fatigue strength of employees, improve work efficiency, and save cable ties. Employees only need to put the wire on the winding port to automatically wind the wire, and then put the wound wire at the wire binding port, and the machine can automatically tie the tape. This machine can be used to set the cable length, the number of turns, the number of coils, and the speed of the winding, as well as the output count. This machine adopts PLC program control, text display for parameter setting, and the operation is simple and convenient.
Installation Instructions
Product Paramenters
Power supply voltage
AC220V
Power frequency
50HZ/60HZ
Rated power
80W
Winding size
can be adjusted (50-150MM)
Winding speed
can be set by yourself (1-30 gears)
Number of windings
can be set by yourself (1-999 turns)
JIASU-30A new style
60-140
Φ05-40mm
JIASU-40A new style
150-260
Φ30-70mm
JIASU-25A
75-130
Φ05-25mm
JIASU-35A
120-200
Φ05-40mm
Number of coils
can be set by yourself (recommended 2-6 turns)
Thread tie speed
can be set by yourself (1-3 gears (recommendation 2)
Recommended PE material for cable tie
coated iron core
Protection device
fuse, fault alarm shutdown
Dimensions (/LXWXH)
350x250x220mm
Total weight
12Kg
Recommend Products
Delivery&Packing
Company Profile
FAQ
1.Are you a factory or a trader?
-we are factory.
2.What is your MOQ?
-MOQ 1 piece.
3.Do you provide sample services?
-Yes, we will provide samples(Samples at prices announced by chuanglixun).
4.How will you ship to me?
– We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.
5.How do we pay
-Book in advance or multiple payment methods such as T / T and T / L.
6.How long is your product warranty?
-The warranty period is 1 year (the warranty period  will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7.Do you provide customized services?
-Yes, we provide customized services, According to customer requirements and description.
