Semi Automatic Small Manual Bottle Liquid Filling Machine Hummus Honey Cosmetic Cream Filling Machine Price

ر.س3,115.58

Qty:

Semi automatic small manual bottle liquid filling machine hummus honey cosmetic cream filling machine price

 10

Product Description

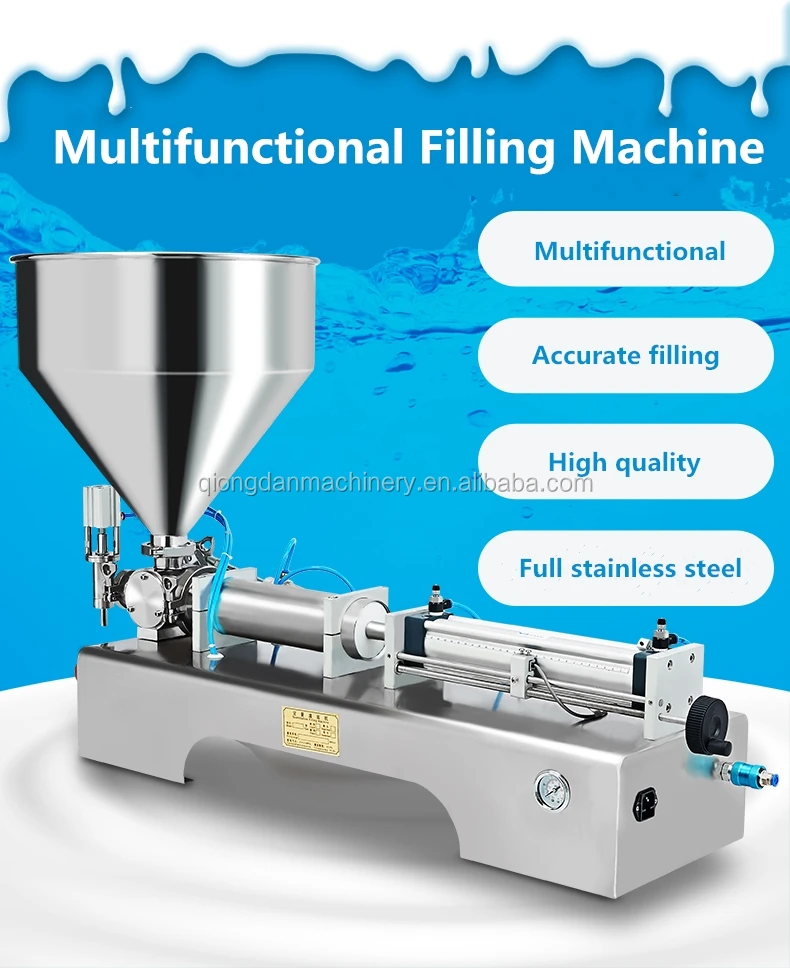

 Description of Liquid filling machine

This series can be applied to filling of wine,soy sauce,oil and all flowable liquid .It is also caters to industries like food ,cosmetics medicine ,chemicals and drinks. All components are made of stainless steel which is clean and easy to unpick , Precise in measurement and easy to operate,It is widely used among small companies and individual users.

 9

 3

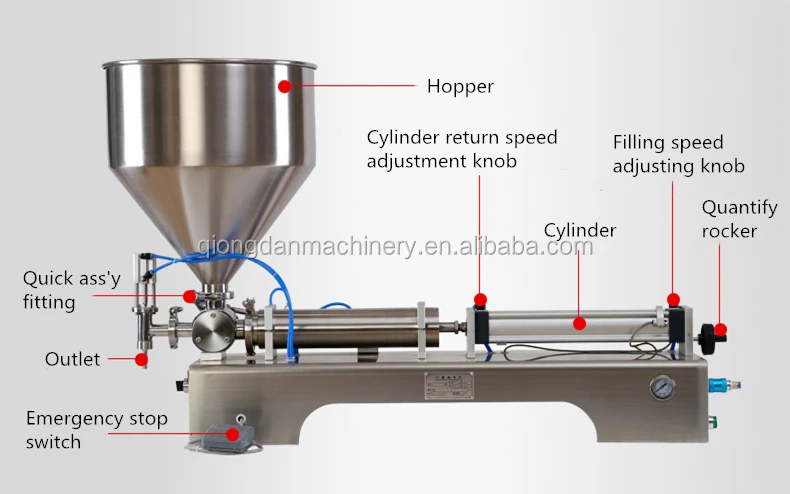

 Structure of Liquid filling machine

 7

 Features of Liquid filling machine
1. Using high quality cylinder as driven part such as AirTAC cylinder, EMC cylinder etc
2. It is easy to install, disassemble and clean
3. High quality O ring makes working life longer
4. All machine body is made of SUS 304. It is easier to clean and more hygeian.
5. The filling accuracy can reach 99.5%
6. Filling range is wide and adjustable.
7. This filling machine can run automatically or operated by a pedal.
8. This series of machine can be installed with a sucking tube or a hopper.
9. Using advanced anti-leaking technology to keep the filling head from leaking.

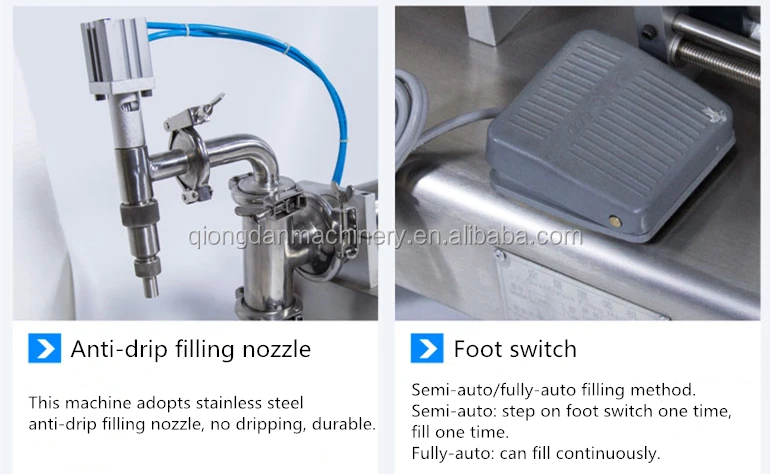

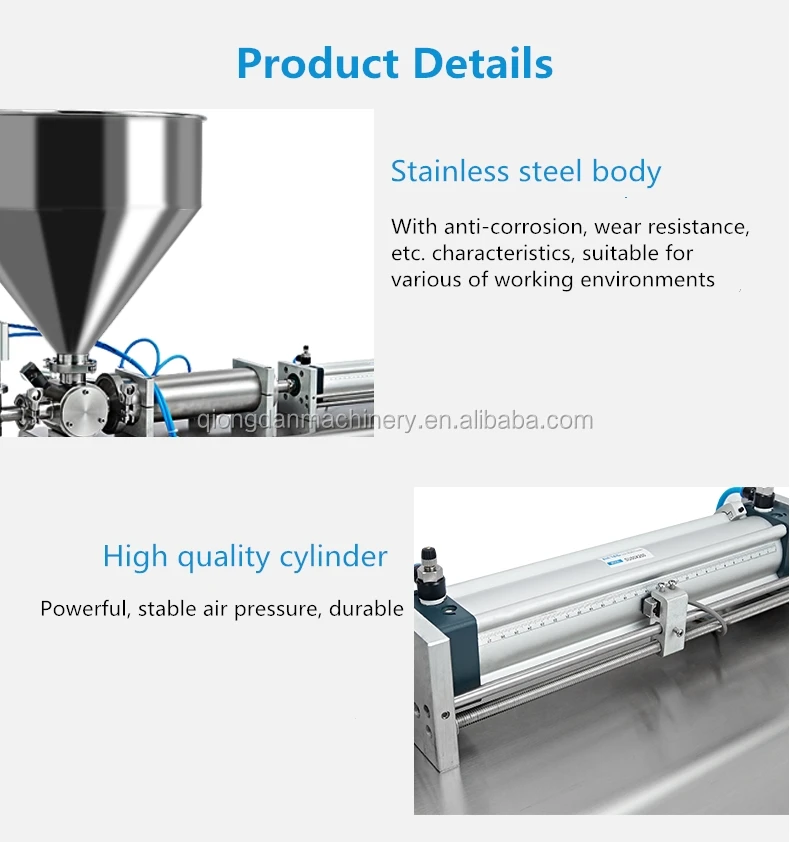

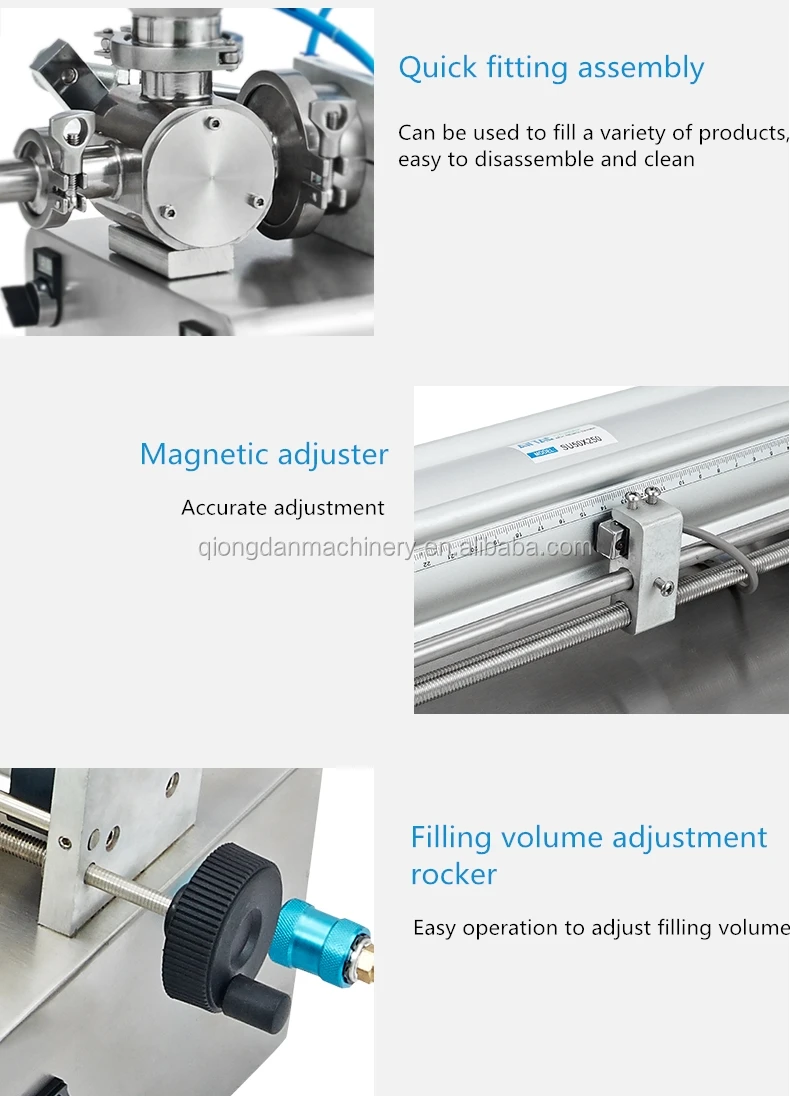

 Details of Liquid bottle filling machine

 1 2

 8

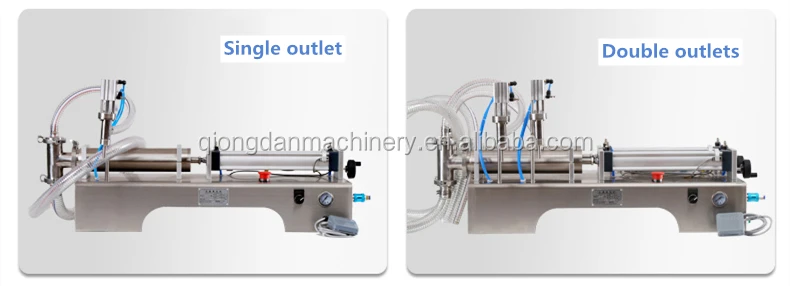

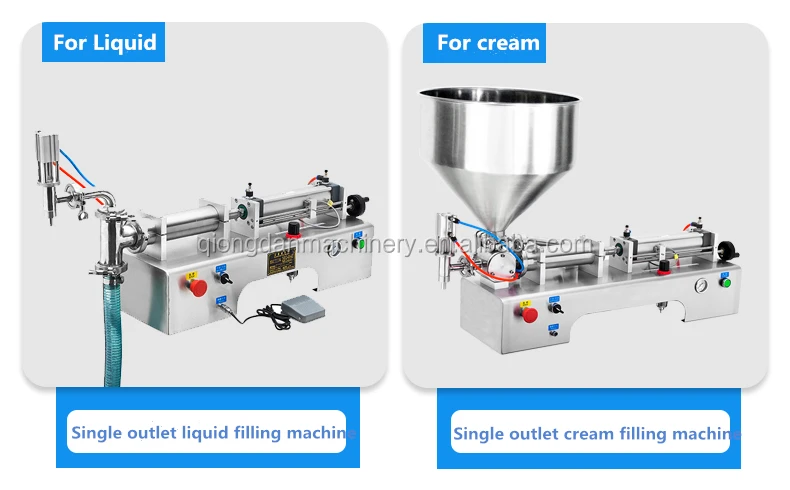

 Different types of Liquid filling machine

 4 5

 Parameter of Liquid filling machine

Model QD-100 QD-300 QD-500 QD-1000 QD-2000 QD-3000 QD-5000
Type Pneumatic
Filling range 10-100ml 30-300ml 50-500ml 100-1000ml 200-2000ml 300-3000ml 500-5000ml
Filling speed 10-20 bottles/minute
Size(cm) 86*23*24 86*23*24 90*23*25 95*27*29 105*27*30 110*27*35 125*27*35
Weight 20kg 21kg 24kg 30kg 35kg 37kg 43kg

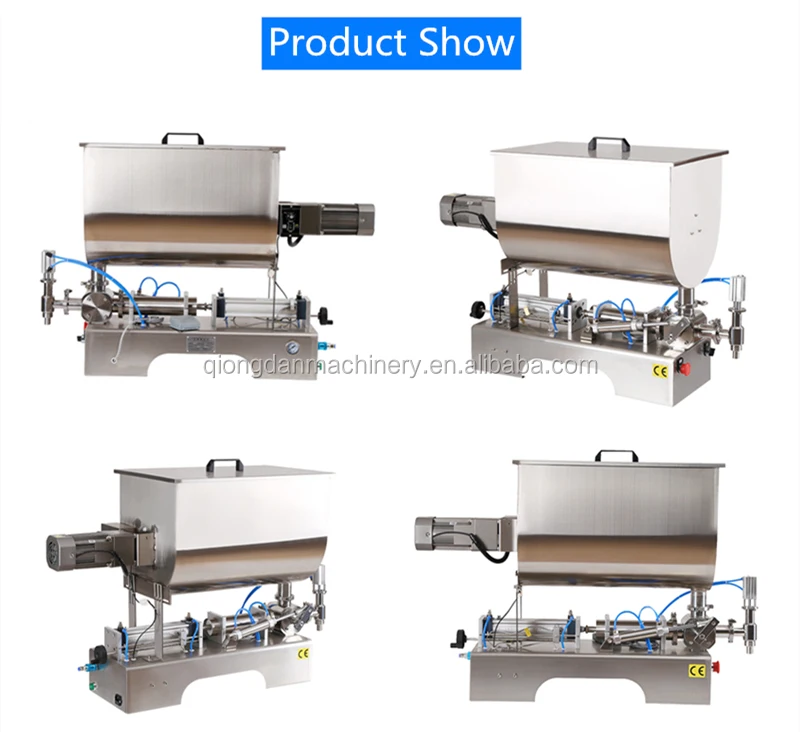

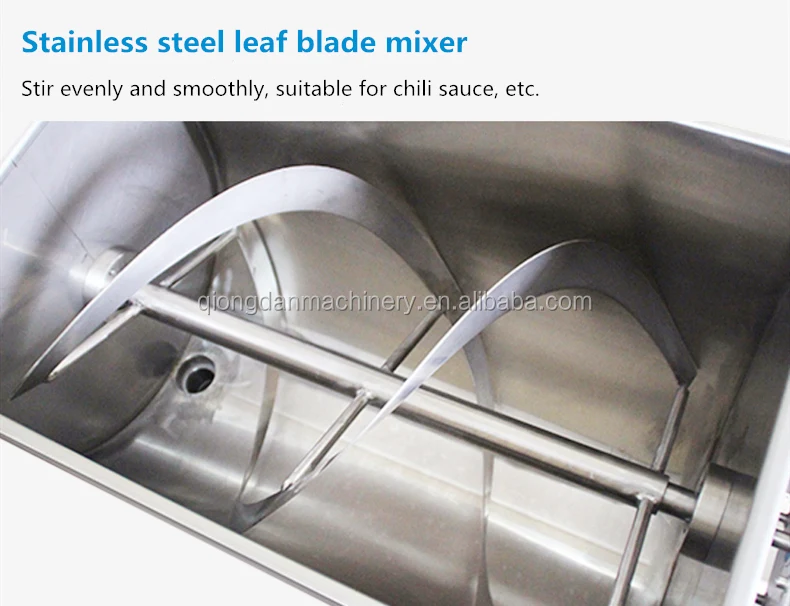

 Liquid/paste filling machine with horizontal mixer

 12

 Application of Liquid/ paste filling machine with horizontal mixer

21

 11

 13

 More pictures of Liquid filling machine with horizontal mixer

 14
