Products Description
description
The silent terminal machine is designed for terminal crimping. It uses cam reciprocating to complete one stamping. It has simple structure, low failure rate and easy maintenance. To replace the mold, simply disassemble the plug and adjust the stroke. Use the foot switch to operate the production, the response is quick, and the production of skilled workers can reach 4000-5000 points per hour.
|
Model
|
BG-1.5T
|
BG-2.0T
|
BG-3.0T
|
BG-4.0T
|
BG-6.0T
|
10T以下
|
|||||
|
Crimping ability
|
1.5ton
|
2ton
|
3ton
|
4ton
|
6ton
|
customized
|
|||||
|
Applicable wire diameter
|
2.5 square less
|
4 square less
|
6 square less
|
25 square less
|
50 square less
|
Look demand
|
|||||
|
Size（mm)
|
230*260*600
|
270*270*650
|
270*270*650
|
300*300*730
|
380*380*850
|
customized
|
|||||
|
Motor power
|
0.55kw
|
0.75kw
|
0.75kw
|
1.1kw
|
1.5kw
|
customized
|
|||||
|
power
|
AC220V 50/60Hz
|
||||||||||
|
Stroke
|
30mm(can be customized 40mm)
|
||||||||||
|
Can be equipped with mold
|
OTP single grain mold, OTP horizontal mold, OTP straight mold, C-type mold, 2000 horizontal mold, 2000 straight mold, 2000
single-grain mold (2000 mold needs to replace the bottom plate) quadrilateral mold, hexagon mold, four-point mold |
||||||||||
Various mold parameters
|

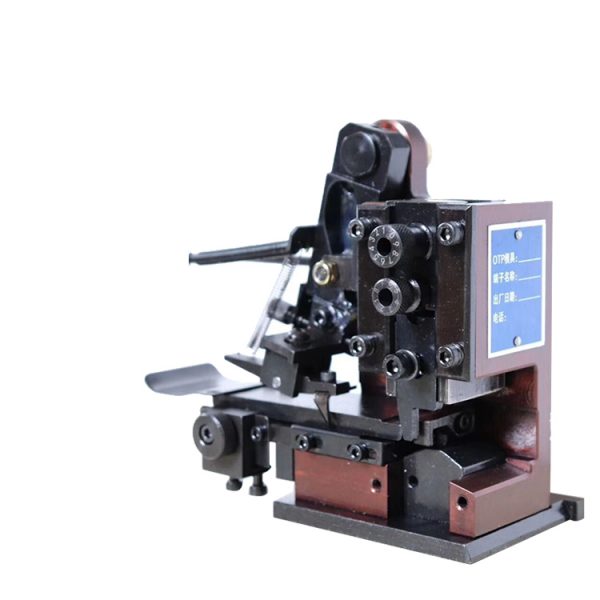

OTP series mold
|
||||||
|
|
Suitable for terminal
|

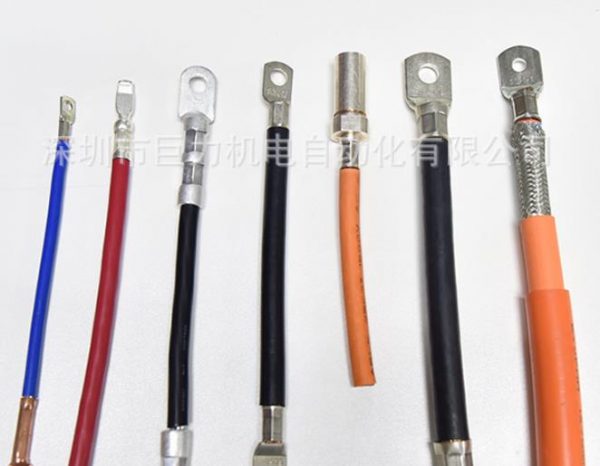

Crimping sample
|
||||

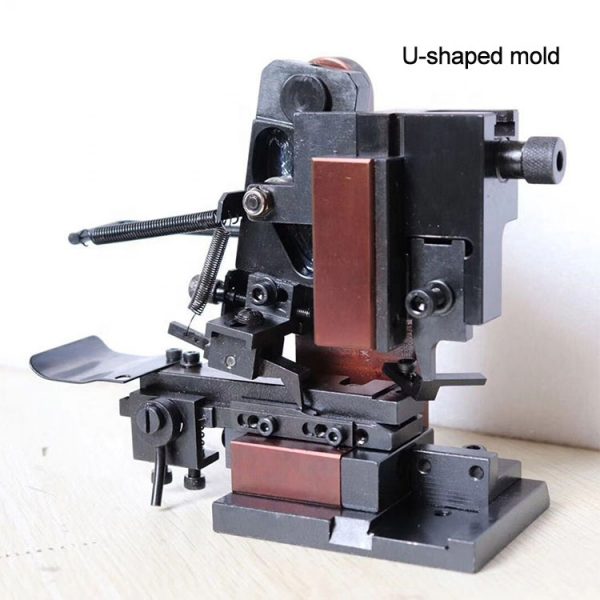

OTP horizontal mold

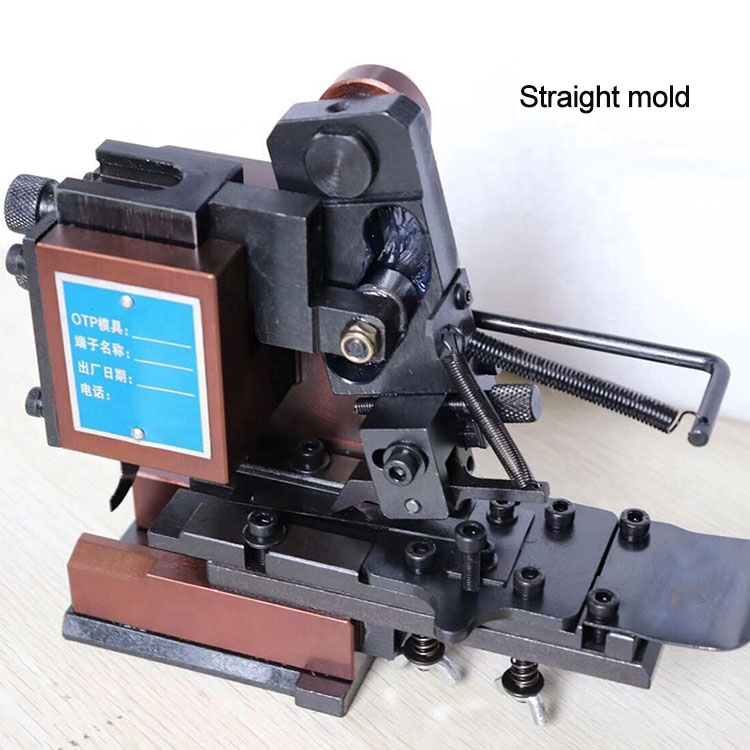

OTP straight mold
JL-X620-L4D Four-point mold
feature
1. Simple operation and convenient use;
2. Exquisite appearance, high efficiency and good quality.
2. Exquisite appearance, high efficiency and good quality.
|
name
|
Four-point crimping mold
|
model
|
JL-X620-L4D
|
||
|
Crimping range
|
Diameter 0-6mm (depending on the terminal, the wall thickness should not exceed 1.0mm, preferably within 0.5mm) wire harness
within 4 square meters |
Blade thickness
|
6mm
|
||
|
size
|
145.5*80*160mm
|
weight
|
4Kg
|
||
|
Crimping shape
|
Point shape
|
stroke
|
30mm
|
||
|
Applicable equipment
|
Mute terminal crimping machine
|
||||
JL-X620-L6B Hexagonal mold(120 square)
feature：
1. There is no need to change molds for large and small terminals, saving time for repeated mold changes;
2. Simple operation, convenient use and high cost performance;
3. Small and beautiful appearance, convenient and fast, and high efficiency;
4. Crimp accuracy ±0.02mm;
2. Simple operation, convenient use and high cost performance;
3. Small and beautiful appearance, convenient and fast, and high efficiency;
4. Crimp accuracy ±0.02mm;
|
name
|
120 square hexagon crimping die
|
model
|
JL-X620-L6B
|
||
|
Crimping range
|
2.5-120mm2
|
Blade thickness
|
12mm，10mm，6mm
|
||
|
Size
|
210*95*250mm
|
weight
|
8Kg
|
||
|
Crimping shape
|
hexagon
|
strok
|
30mm
|
||
|
Applicable equipment
|
15T servo terminal crimping machine、30Tservo terminal crimping machine
|
||||
JL-X620-S6B Hexagonal mold（25 square）
feature：
1. There is no need to change molds for large and small terminals, saving time for repeated mold changes;
2. Simple operation, convenient use and high cost performance;
3. Small and beautiful appearance, convenient and fast, and high efficiency;
4. Crimp accuracy ±0.02mm;
2. Simple operation, convenient use and high cost performance;
3. Small and beautiful appearance, convenient and fast, and high efficiency;
4. Crimp accuracy ±0.02mm;
|
Name
|
25 square hexagonal mold
|
model
|
JL-X620-S6B
|
||
|
Crimping range
|
2.5-25mm2
|
Balde thickness
|
12mm，10mm，6mm
|
||
|
Size
|
120*70*145 mm
|
weigth
|
8Kg
|
||
|
Crimping shape
|
Hexagon
|
strok
|
30mm
|
||
|
Applicable equipment
|
Mute terminal crimping machine、15T servo terminal crimping machine（replace the bottom plate）、30T servo terminal crimping
machine（replace the bottom plate） |
||||
JL-X620-K6B Opening hexagon mold
feature：
1. There is no need to change molds for large and small terminals, saving time for repeated mold changes;
2. Simple operation, convenient use and high cost performance;
3. Small and beautiful appearance, convenient and fast, and high efficiency;
4. Crimp accuracy ±0.02mm;
2. Simple operation, convenient use and high cost performance;
3. Small and beautiful appearance, convenient and fast, and high efficiency;
4. Crimp accuracy ±0.02mm;
|
Name
|
120 square opening hexagon mold
|
Molde
|
JL-X620-K6B
|
||
|
Crimping range
|
2.5-120mm2
|
Blade thickness
|
12mm(can customized)
|
||
|
Size
|
188*100*250mm
|
Weight
|
8Kg
|
||
|
Crimping shape
|
Hexagon
|
Strok
|
30mm
|
||
|
Applicable equipment
|
15T servo terminal crimping machine、30T servo terminal crimping machine
|
||||
JL-X620-S4B Quadrilateral mold
feature:
1. There is no need to change molds for large and small terminals, saving time for repeated mold changes;
2. Simple operation, convenient use and high cost performance;
3. Small and beautiful appearance, convenient and fast, and high efficiency;
4. Crimp accuracy ±0.02mm;
2. Simple operation, convenient use and high cost performance;
3. Small and beautiful appearance, convenient and fast, and high efficiency;
4. Crimp accuracy ±0.02mm;
|
Name
|
50 square quadrilateral mold
|
model
|
JL-X620-S4B
|
||
|
Crimping range
|
（Soft cord within 50 square）0-50mm2
|
Blade thickness
|
15mm,12mm
|
||
|
Size
|
130*68*175mm
|
Weight
|
4.5Kg
|
||
|
Crimping shape
|
Square
|
Strok
|
30mm
|
||
|
Applicable equipment
|
Mute terminal crimping machine
|
||||
