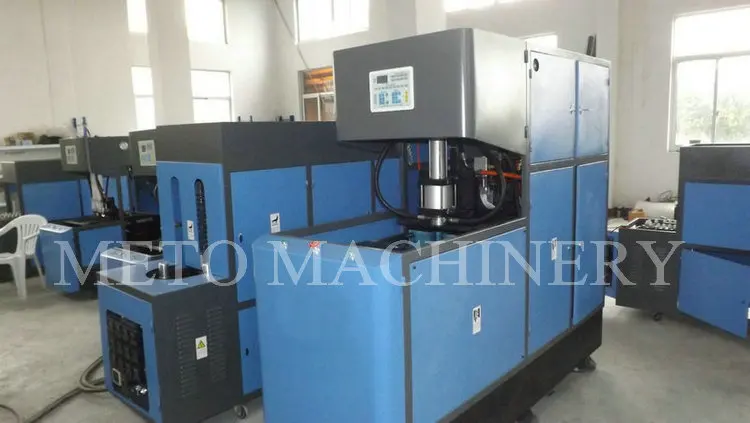

Semi-Automatic 20-Liter Pet Bottle Blowing Machine for 5-Gallon 18.9-Liter Mineral Water Dispenser Big Tank Making Machine
Feature:
1. The function is perfect,with economy model.
2. With advantage of small floor area, stable structure and save space.
3. Easy to operate, one worker enough.
4. Less consumption, not easy to damage, use the new type hyperbolic arm connecting rod clamping, structure stable, suitable for high pressure bottle blowing system.

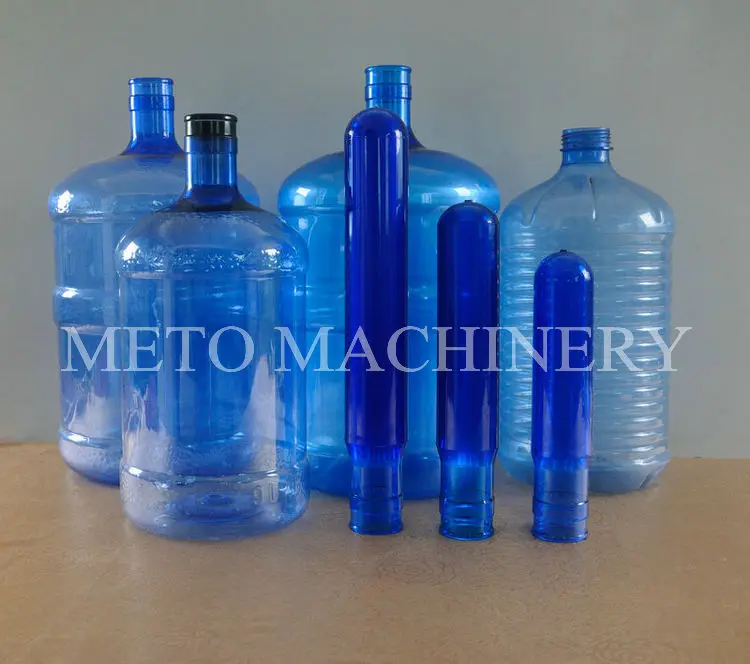

5. We can provide 3 to 5 gallon bottles cap and preform mould.
ITEM
|
MT-1T5G/B
|
Theoretical output
|
90
|
Max.container volume
|
20L
|
Max.neck diameter
|
150MM
|
Max.container diameter
|
400MM
|
Max.container height
|
600MM
|
Number of cavity
|
1
|
Number of lamp
|
60
|
Max.heating power
|
25KW
|
Operating low pressure
|
0.7-1.0Mpa
|
Blowing pressure
|
2.5-3.5Mpa
|
Flow rater
|
40 L/min
|
Machine dimension
|
3.7×1.0×1.8
|
Machine weight
|
2200Kg
|
