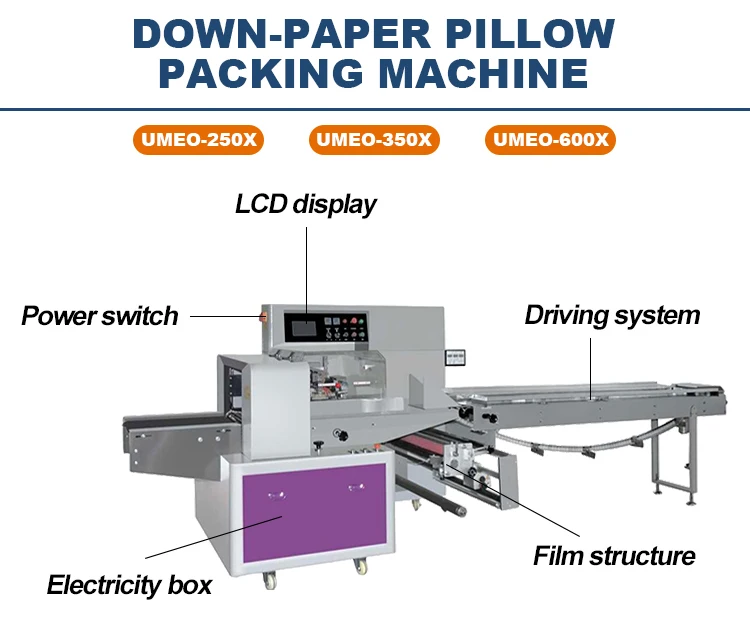

Specification
|
Model
|
Umeo-250
|
Umeo-320
|
Umeo-350
|
Umeo-250X
|
Umeo-350X
|
Umeo-600X
|
|||||
|
Bag Length
|
65-190mm/120-280mm
|
65-190mm/120-280mm
|
90-220mm/150-330mm
|
65-190mm/120-280mm
|
65-190mm/120-280mm
|
150-450mm
|
|||||
|
Bag Width
|
30-110mm
|
50-160mm
|
50-160mm
|
30-110mm
|
50-160mm
|
80-280mm
|
|||||
|
Max.Product H
|
55mm
|
55mm
|
60mm
|
55mm
|
70mm
|
100mm
|
|||||
|
Film Roll Dia
|
320mm （Max.)
|
320mm
|
320mm
|
320mm
|
320mm
|
320mm
|
|||||
|
Max.Film W
|
250mm
|
320mm
|
350mm
|
250mm
|
350mm
|
600mm
|
|||||
|
Packing Speed
|
40-230 packet/min
|
40-230 packet/min
|
40-180 packet/min
|
40-230 packet/min
|
40-230 packet/min
|
40-150 packet/min
|
|||||
|
Power
|
220V AC 50HZ,2.4Kw
|
220V AC 50HZ,2.6Kw
|
220V AC 50HZ,2.6Kw
|
220V AC 50HZ,2.4Kw
|
220V AC 50HZ,2.6Kw
|
220V AC 50HZ,2.8Kw
|
|||||
|
Dimension（mm）
|
3770(L)×670(W)×1450(H)
|
3770(L)×720(W)×1450(H)
|
4020(L)×770(W)×1450(H)
|
3920(L)×670(W)×1400(H)
|
4020(L)×720(W)×1450(H)
|
4020(L)×920(W)×1450(H)
|
|||||
|
Net Weight
|
500KG
|
550KG
|
600KG
|
500KG
|
600KG
|
900KG
|
|||||
|
Packaging Film
|
Complex film(OPP/CPP,OPP/PE,PET/PE,Aluminumfoil,PE/PE etc)
|
Complex film(OPP/CPP,OPP/PE,PET/PE,Aluminumfoil,PE/PE etc)
|
Complex film(OPP/CPP,OPP/PE,PET/PE,Aluminum foil,PE/PE etc)
|
Complex film(OPP/CPP,OPP/PE,PET/PE,Aluminum foil,PE/PE etc)
|
Complex film(OPP/CPP,OPP/PE,PET/PE,Aluminum foil,PE/PE etc)
|
Complex film(OPP/CPP,OPP/PE,PET/PE,Aluminum foil,PE/PE etc)
|
|||||
|
optional
|
Air Filling device/Linking device/Ethyl alcohol device
|
Air filling device/linking device/ethyl alcohol device
|
Air filling device/linking device/ethyl alcohol device
|
Air filling device/linking device/ethyl alcohol device
|
Air filling device/linking device/ethyl alcohol device
|
Air filling device/linking device/ethyl alcohol device
|
|||||
Product Description
FAQ.
1.What kinds of product does you company have ? Our products include Powder Packing Machine/Liquid Packing Machine/Granule Packing Machine/Vacuum Packing Machine/Counting Packing Machine/Auto Weighing Packing Machine/Auto Dispensing Packing Machine/Auto Sealing Packing Machine/Auto Bag Cutting Packing Machine/Vertical Packaging Machine/Gusseted Bags Packing Machine/All-in-one Packing Machine/Multi-Functional Packing Machine/Multi-lane Liquid Packing Machine/Bowls Feeder And Counting Packing Machine/Measuring Cup Packing Machine/Semi-Auto Packing Machine/Doypack Packing Machine/Premade Bag Packing Machine/Rotary Pillow Packing Machine/Z Type Material Elevator/Spiral Conveyor/Finished Product Conveyor/Rotary Table/Expanded Food Packaging Production Line;Also the customized packing machine is available,especially the Production Packing Line is welcome. 2.What is product your packing machine can pack ? Our packing machine mainly pack Granule ( bean,rice,candy,hardware etc.); Liquid ( water,shampoo,jelly,soup etc) ; Powder ( flour,milk powder,coffee powder,detergent powder etc);Vacuum Filling;Counting packing;Auto Weighing Packing;Auto Dispensing Packing;Auto Bag Cutting Packing;Multi-Functional Packing;Measuring Cup Packing;Doypack Packing;Rotary Pillow Packing. 3.What is bag shape your packing machine can make ? Usually back sealing bag ( pillow bag ),three-side sealing bag,four-side sealing bag,qual seal bag,gusset bag,triangle bag,linking bag,box bag,stand-up bag,spout pouch,premade bag,stick bag,flat bottom bag,zipper bag etc. 4.I know little about the packing machine before,How to use it ? Is it complex ? It is very simple we make sure you can use it easily as per our advice. As you can get any information that can help you to install and use the packing machine,such as a detailed instruction,a whole set design,a installation video,even our technician. 5.How about your packing machine quality ? any certification you have ? We have a strict Quality Control system which is from Design Dept.-Purchasing Dept.-Product Dept.-Quality Dept.-Packing Dept. ; eighty percent have over 8 year experience,and the left twenty percent has 5 year experience; Meanwhile our packing machine has International Standard CE certification which has passed the most important standard of MD and LVD at the same time. 6.How to choose the suitable packing machine for my product ? You just need to tell us about your packing product details,packing request that we will provide a reasonable advice and the D Graph for you; even we can provide some choices for you to get a best one. 7.What is the process to order the packing machine ? First: we will provide the most suitable and reasonable packing machine for you as per your request and offer you a best quotation; Second:we will arrange the production once get your confirmation and the payment advice;About 10-30 days later we will take the finished pictures and working video for you;meanwhile our Department of Quality Assurance will inspect it till make sure every part is no problem completely; then we pack and ship it,but usually you need to arrange the balance payment before shipment; Third: we deal with the Customs Clearance and provide the shipment document for Customs and you; After some time that you can get packing machine well. 8.What is the after-sales and guarantee ? First: we will assist you to install the packing machine and make sure it can work smoothly; Second: we will provide one year of maintenance and warranty period free of charge. The buyer will carry out the maintenance tasks and we will supply and ship the replacement for defective parts to the buyer free of charge, except the damage is caused by buyer.
Reviews
There are no reviews yet.
