Sales price 7-50N Made in China Pointer Tension gauge for testing screens

1. Features:

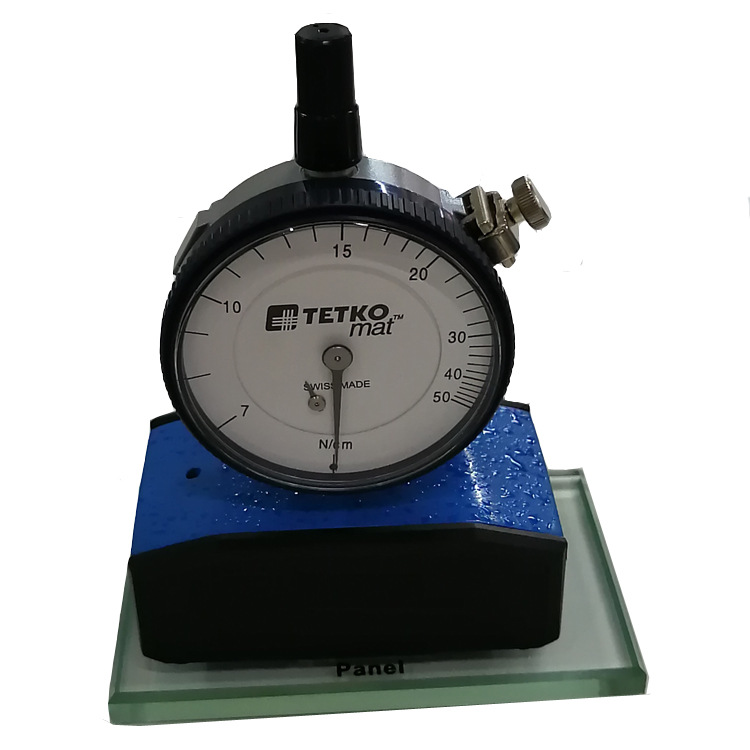

The tensiometer is suitable for testing the tension of various types of screen plates. The pointer indicates the tension (unit: Newton) without any power supply. The tension at any position of the tensioned mesh can be detected at will. The tension meter generally tests the radial and weft tension of the screen to make the screen reach the same diameter and weft direction. Whether it is a newly stretched screen or a reused old screen, the CMMY Tensiometer can provide reliable tension test data.

2. Scope of application:
1. Suitable for high-demand screen printing/stencil printing.
2. Measurement result: average point of warp, latitude, longitude and latitude.
3. Reading: 7-50N/CM OR 7-80N/CM
4. Accuracy grade: ±0.5, Swiss movement, with standard correction glass,
5. The Newton display screen tension meter is a relative value to express the tension,
6. It uses the weight of the tensiometer to sink the screen,
7. The centimeter value of sinking represents tension.
8. It is a Newton/cm (N/CM) tension meter. This type of tension meter is easy to use. When measuring, place it on a tight screen, and the needle will indicate the tension of the measured screen in Newton/cm (N/CM). Value, the measurement data is accurate!
