fingerprint/ Smart Pin Code Building Biometric Fingerprint Metal Barrier Gate Access Control System IC Card Reader
Product Description
The device is a standalone access control and proximity card reader which supports EM & MF card types, and the fingerprint builds-in STC microprocessor, with strong anti-interference ability, high security and reliability, powerful function and convenient operation.
This series of product is a new generation of mufti-function standalone access control. It adopts new ARM core 32-bit
microprocessor design, which is powerful, stable and reliable. It includes card reader mode and standalone access control mode etc.. Its widely applied to different occasions, such as offices, high-end buildings, residential communities, villa, bank and prison etc..
microprocessor design, which is powerful, stable and reliable. It includes card reader mode and standalone access control mode etc.. Its widely applied to different occasions, such as offices, high-end buildings, residential communities, villa, bank and prison etc..
Selling point
Static facial fingerprint access control attendance all-in-one machine 1) Appearance: 2.8 inch TFT color LCD screen 2) SmartKM industrial grade ARM9 400Mhz low-power architecture platform: industrial grade HSA8.0, FLASH: 1GB 3) Verification and comparison: facial recognition, fingerprint ID swiping (customizable IC card), password verification, and four combination methods. 4) Storage capacity: 300 faces, 3000 fingerprints, 3000 ID or IC cards, 100000 attendance records: 5) Communication method: USB interface, TCP/IP 6) Access control function: anti demolition alarm, door ajar alarm, forced door opening alarm, alarm linkage and output, a set of door opening signals, group permission control during time periods, external access control reader, Wigan 26/34 input and output 7) Computer free software, USB drive for exporting attendance records 8) Language: Chinese Simplified Overall English (other languages can be customized) 9) Self check function: Yes, intelligent update: Yes 10) Power supply: DC12V
Static facial fingerprint access control attendance all-in-one machine 1) Appearance: 2.8 inch TFT color LCD screen 2) SmartKM industrial grade ARM9 400Mhz low-power architecture platform: industrial grade HSA8.0, FLASH: 1GB 3) Verification and comparison: facial recognition, fingerprint ID swiping (customizable IC card), password verification, and four combination methods. 4) Storage capacity: 300 faces, 3000 fingerprints, 3000 ID or IC cards, 100000 attendance records: 5) Communication method: USB interface, TCP/IP 6) Access control function: anti demolition alarm, door ajar alarm, forced door opening alarm, alarm linkage and output, a set of door opening signals, group permission control during time periods, external access control reader, Wigan 26/34 input and output 7) Computer free software, USB drive for exporting attendance records 8) Language: Chinese Simplified Overall English (other languages can be customized) 9) Self check function: Yes, intelligent update: Yes 10) Power supply: DC12V
Specification
|
Item
|
Value
|
|
Protocol
|
WG26
|
|
Frequency
|
125KHZ
|
|
Product
|
Access control keypad
|
|

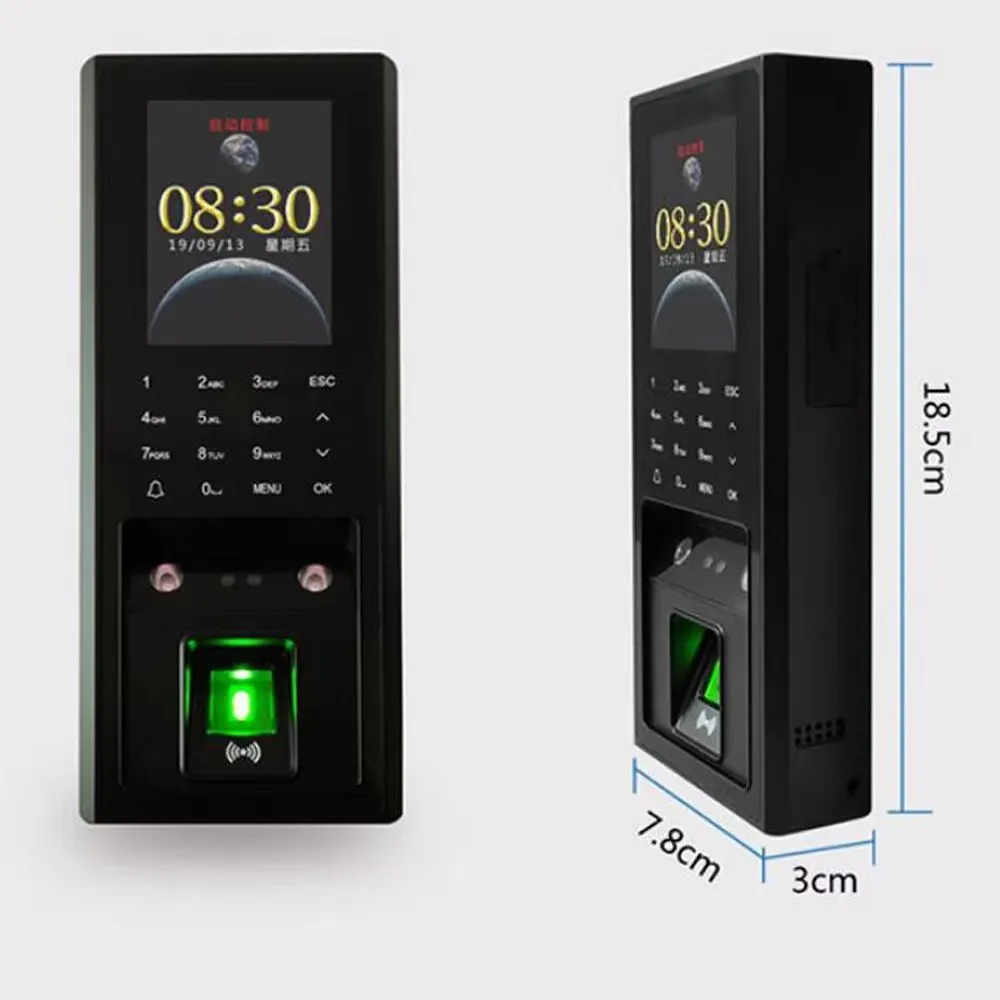

Dimension
|
185*78*30(mm)
|
|
Working Voltage
|
DC12V±10%
|
|
Ultra low power
|
Standby current is less than 30mA
|
|
Reading Range
|
2~6cm
|
|
Certificate
|
CE RoHS FCC
|
|
Application
|
For entrance safety access control
|
|
Feature
|
Waterproof
|
|
Searching time
|
Less than 0.1s after reading card
|
|
Backlight keypad
|
Operate easily at night
|
|
Doorbell interface
|
Support external wired doorbell
|
|
Access ways
|
Card, pin code, card & pin code, fingerprint
|
|
Card type
|
EM/MF
|
|
Power supply
|
Electricity
|
|
OEM / ODM
|
Support
|
|
Warranty
|
One year
|
