Product Name: |

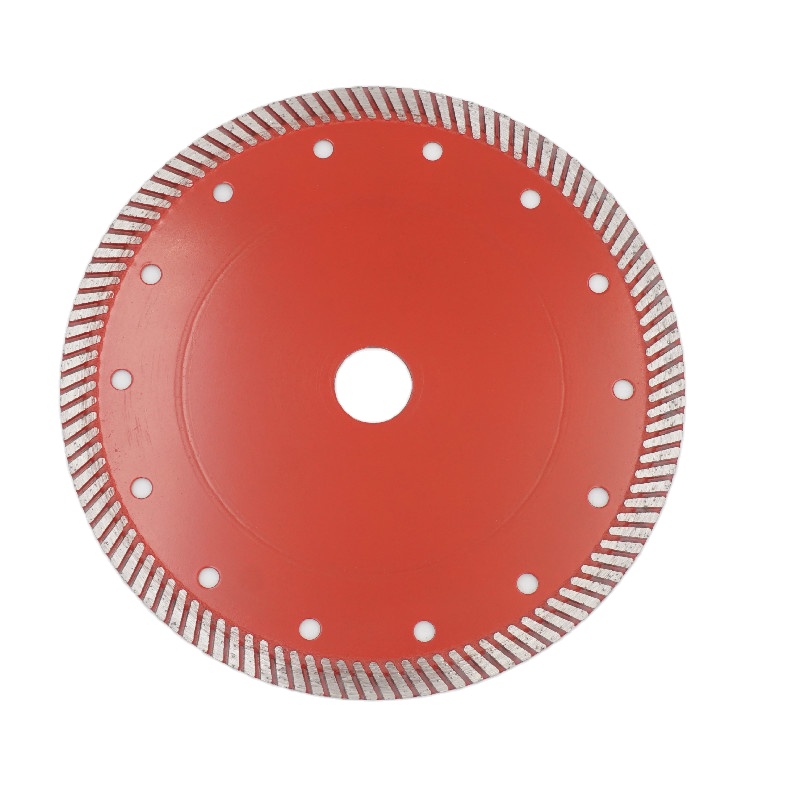

S14 BB Continuous Turbo Blades |
Brand: |
Diany Saw |
Application: |
Granite, Concrete, Quartz, Engineered Stone, Sandstone etc. |
Specification: |
1. Sizes: 4” – 14” (105-350mm) 2. Segment Height: 8/10/12mm 3. Arbor: 22.23/25.4mm |
Wet and Dry: |
Dry Use |
Features: |
1. S14 BB turbo blade is made specially for cutting very hard materials such as quartzite, engineered stone, quartz, as well as granite. 2. Made with very high diamond content and a bond to keep sharp, the S14 BB turbo blade will cut fast and clean. 3. Designed with air cool holes to stay cool for continuous cutting and the BB blade comes with a solid stiff core which will not deflect, bend, or flex during the cut. 4. 8mm or 10mm segment heights are available by Customer’s choice. 5. Ultra thin segments are also available. |
Quality Control: |
1. Raw materials and diamond particle are tested when received; 2. Cores tested and when received; 3. Sintering process is run by computer program, which will guarantee quality consistency; 4. Blades are tested one by one after sintering; 5. Final appearance inspection will take place before packing. |
Processing: |
Hot Press Sintered Process |
Package: |
Paper Internal Box and Carton External Box |
Paint: |
Black or Customized |
Logo: |
Sticker or Laser Marking or Screen Printing (Private Label Is Available) |
Size |
Regular Segment |
Arbor |
Part # |
4”/105mm |
8*2.0mm |
22.23mm |
S14X105 |
4.5”/115mm |
8*2.0mm |
22.23mm |
S14X115 |
5”/125mm |
8*2.2mm |
22.23mm |
S14X125 |
6”/150mm |
8*2.2mm |
22.23mm |
S14X150 |
7”/180mm |
8*2.4mm |
22.23mm |
S14X180 |
8”/200mm |
8*2.4mm |
22.23mm |
S14X200 |
9”/230mm |
8*2.6mm |
22.23mm |
S14X230 |
10”/250mm |
8*2.8mm |
25.4mm |
S14X250 |
12”/300mm |
10*3.2mm |
25.4mm |
S14X300 |
14”/350mm |
12*3.2mm |
25.4mm |
S14X350 |
