CE 1/4-2inch 4sp Layers Wire Hydraulic Flexible Rubber Hose Cutter Skiving Machine Dustless Hose Cutting Machine For Sales
| Our crimping machine models and size details | ||
| Crimping inner diameter | Crimping max outer diameter | Model |
| 1/16”-1”(1mm-27mm) | 35mm | KSD27, KSD27A |
| 1/8”-1.5”(3mm-38mm) | 70mm | KSD382, KSD382T |
| 1/8”-2”(3mm-51mm) | 83mm | KSD8,KSD501,KSD502A,KSD502,KSD503,KSD504, KSD505, KSD506,KSD507,KSD-CNC |
| 1/8”-2.5”(4mm-64mm) | 110mm | KSD64, KSD64T |
| 1/8”-3”(4mm-76mm) | 115mm | KSD76 |
| 1/4”-4”(6mm-102mm) | 135mm | KSD102 |
| 1/4”-6”(6mm-170mm) | 184mm | KSD170, KSD170A,KSD170B |
| 1/4”-8”(6mm-200mm) | 250mm | KSD200 |
| 1/4”-10”(6mm-250mm) | 325mm | KSD250 |
| KSD52M | hose crimping&skiving machine | |
| KSD53M | hose crimping&skiving&cutting machine | |
| other related production | hose cutting machine, hose skiving machine, hose pressure test machine , hydraulic hose and fitting | |
The price and following detail just are for hose cutting machine.
|
Outside measurement |
580×588×1220mm |
|
Voltage |
380V/220V/415 50Hz 60HZ |
|
Power |
1.5KW |
|
Maximum ID of peel hose |
1/4-2inch |
|
Protection class |
IP54 |
|
Dies |
10pieces |

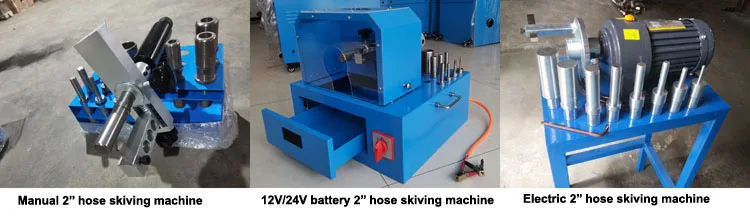

Other model hose skiving machine
We also have hose crimping machine, If you need hose crimping machine like 1inch/1.5inch/2inch/2.5inch/3inch/4inch/6inch/8inch/10inch, please contact us, we will send the information to you.
Welcome to click the web link to get more different Model information :KSD hose crimping machine
hose pressing machine
|
Die mould: different pressing product need different dies mould. Like air suspesion ring, air conditioner hose,brake hose,hydraulic hose,cable, steel pipe,so you can tell us what you need to crimp, then we make diesmould for your products. |
hose pressing machine
hose pressing machine
Our machine can crimp below stuffs,and if you have other shape stuff to crimp, you can send us the
details or your products sample,we will provide you with products tailored to the machine and mold.hose pressing machine
hose pressing machine
hose pressing machine
hose pressing machine
1.We have many agents all over the worlds, so you can contact our agent to buy our products
2.Technical support any time, Our engineer cellphone:+86113821414323
3.Warranty time 3years, the warranty card with machine together to you.
4.Supply Video to learn how to use machines.
5. Door to door service, we are in charge of sending the machine to your office, after payment.hose pressing machine
6.we can design machines as your draw and requirements. OEM
hose pressing machine
hose pressing machine
|
Trouble phenomena |
Trouble reason |
Eliminating method |
|
Machine has not action |
Oil tank has not been filled with oil |
Fill oil as per requirement |
|
Motor rotation direction is not correct |
Regulate two phase lines |
|
|
Electric trouble |
Overhaul electric circuits |
|
|
Scale is damaged |
The scale is fastened on the oil cylinder end face by the screw |
Regulate the scale as per the instruction to make scale to telescope freely |
|
Conductor at scale location is connected with scale |
Anew connect the scale conductor to make it to be insulated from scale base |
|
|
Electric trouble |
Overhaul electric circuits and electric elements |
|
|
Scale conductor cutting |
Anew connect scale |
|
|
System pressure is excessively low |
Adjust buckling pressure-regulating valve |
|
|
No buckling |
The valve core of solenoid reversal valve is seizured by foreign matters |
Dismount solenoid reversal valve, use gasoline to clean the valve core. |
|
Electric trouble |
Overhaul electric circuits |
|
|
Mould is not opened |
Opening mould pressure is excessively low |
Adjust opening mould pressure regulating valve |
|
Electric trouble |
Overhaul electric circuits |
|
|
Lubrication is poor |
Smear grease on the working inclined face of mould base |
|
|
Oil leakage |
Joint is not tightened closely |
Tighten the oil pipe joint |
|
Sealing washer is damaged. |
Replace sealing washer |
hose pressing machine
|
We have more models and products for you choose, like crimping machine range from 2mm-300mm,1/8-10inches, skiving machine,cutting machine, pipe cutting machine, crimping&skving machine, crimping&skving&cutting machine,hose test machine,pipe bending machine and so on. |
hose pressing machine
hose pressing machine
