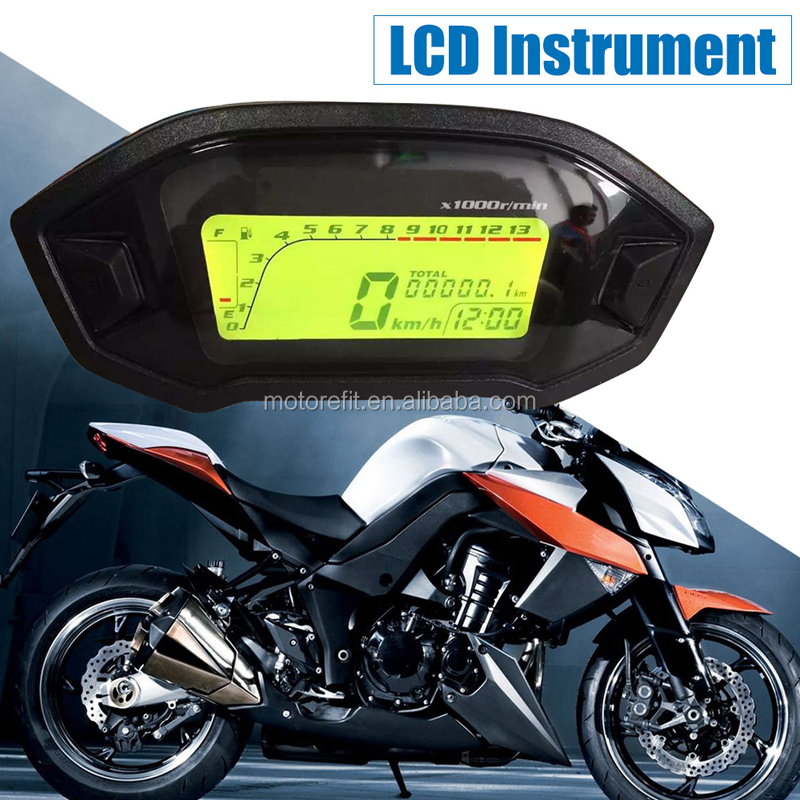

10-15V available,for motorcycle use.
Right click to switch the backlight color.
LCD display,see more clear in dark environment.
Environmentally friendly ABS shell,protect the environment,lead green life.

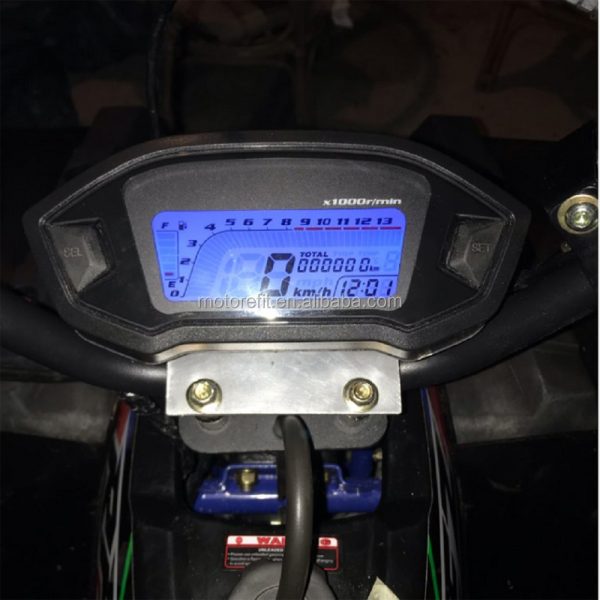

LCD 7 color backlight (red, purple, pink, green, white, blue, green, sky blue, default to red).
Specifications:
Working Voltage: 10V-15V
Speed Calibration: 42.5Hz corresponds to 60KM/H
Speed Calibration: 166Hz corresponds to 10*1000r/min
Fuel Calibration: E Point 98 O-mega, F Point 8 O-mega
Voltage: Undervoltage symbol below 11.3V flickers, undervoltage symbol above 11.7V does not display
Package Weight:460g/16.23oz
Package List:

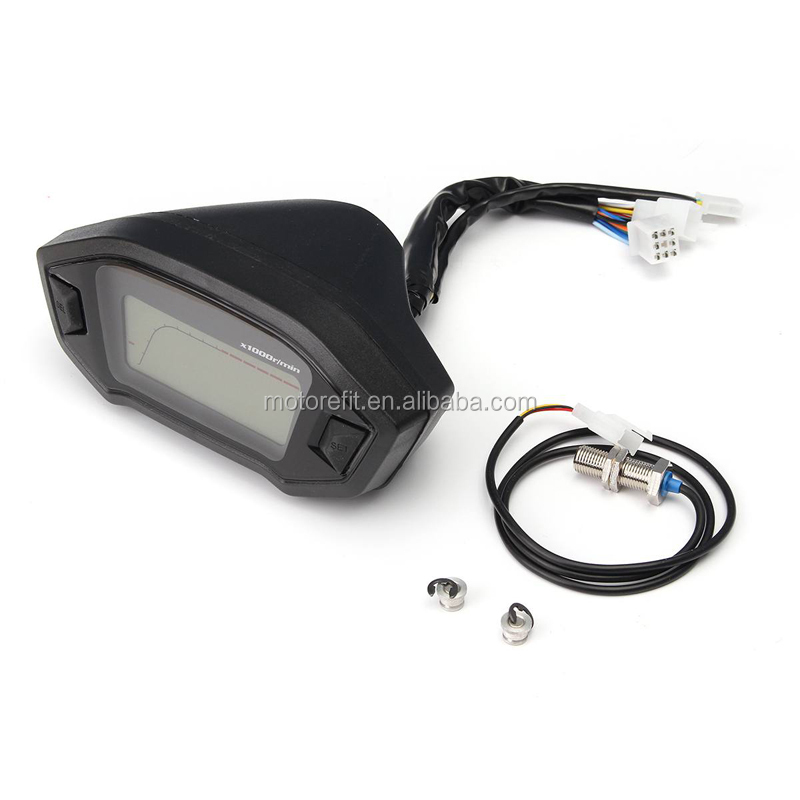

1*Seven Colour Backlight LCD Instrument
Note:
Press the left key of subtotal, the subtotal switch is in the subtotal state, hold the right key for 3 seconds to reset the
subtotal. Long press left key speed flicker. Short right-click switch, then left-click switch clock settings, time flicker, short
left-click plus 1, then left-click multiple flickers, short right plus 1, then press left-click save and exit.
Product Name
|
LCD Instrument
|
Material Type
|
ABS
|
Item Size
|
19.5×10.6×8.2cm
|
Item Weight
|
0.46kg
|
A:Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after geting your authorization letters.
Q: What is your terms of payment?
A:T/T 30% as deposit, and 70% before delivery. We’ ll show you the photos of the products Cand packages before you pay the balance
Q:What is your terms of delivery?
A:EXW, FOB, CFR, CIF, DDU.
A:Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
A:Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
A:Yes, we have 100% test before delivery.
A:1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
