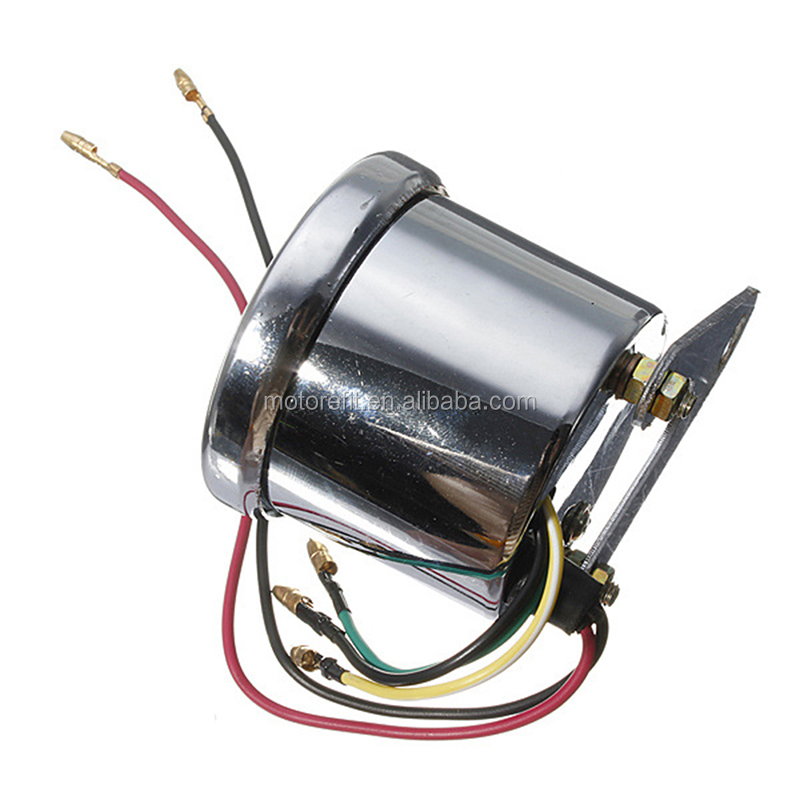

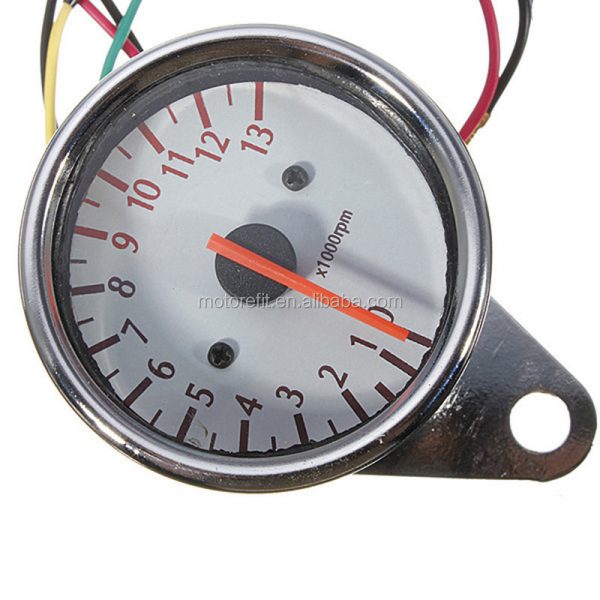

12V Motorcycle Tachometer with Backlight and Pointer Modification Speedometer Tacho Gauge in Silver Motorbike Accessories
Description
Product Features:
1. Product Name: Tachometer with Backlight
2. Product Color: Silver
3. Material: stainless steel
4. Operating voltage: DC 12V
5. Product size:
diameter of the dial: about 60mm/ 2.36in
height: about 55mm/ 2.17in
diameter of the mounting hole: about 10mm/ 0.39in
6. Wiring method:
Two long wires: connect the red one to the positive electrode;
connect the black one to the negative electrode.

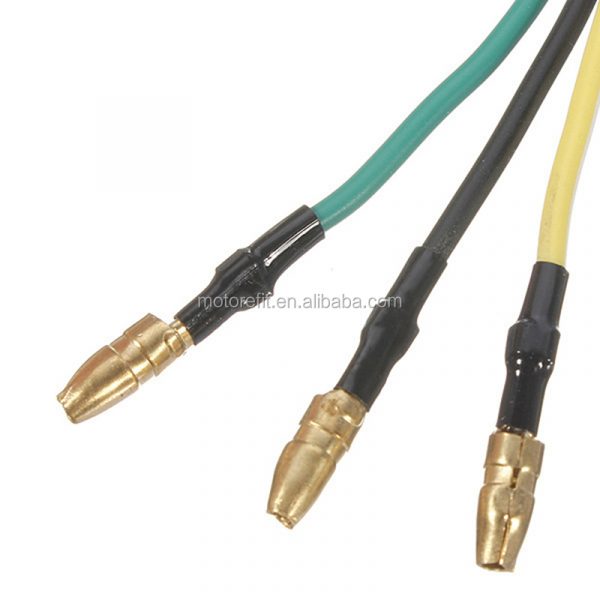

Three short wires: connect the black one to the positive electrode;
connect the green one to the negative electrode;
connect the black / yellow one to the engine speed signal wire.
| Product Name | 12V Motorcycle Tachometer |
| Material Type | Stainless steel |
| Item Size | 6* 6* 5.5cm |
| Item Weight | 0.22kg |
