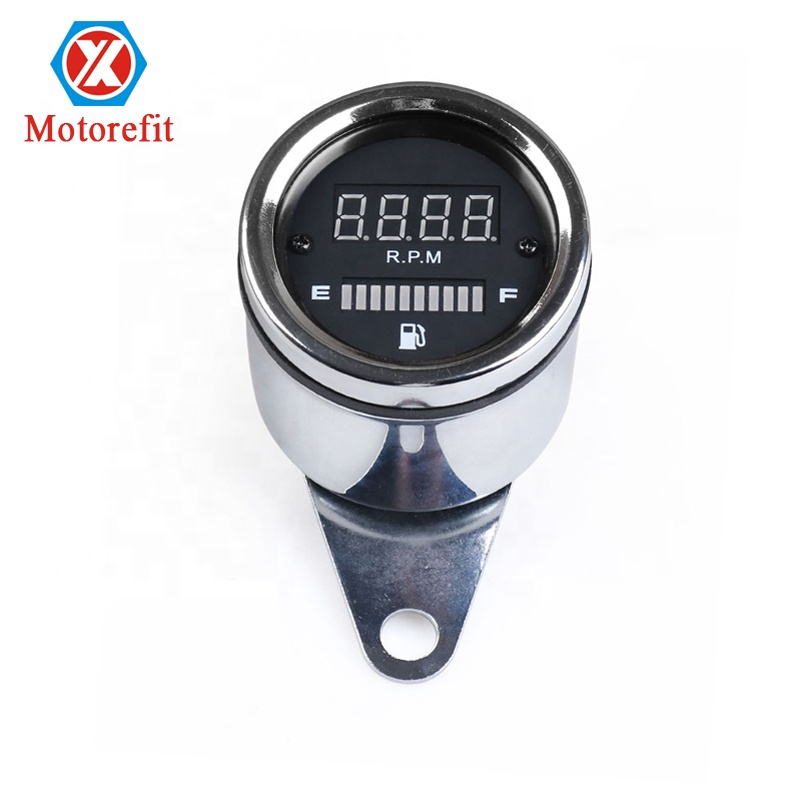

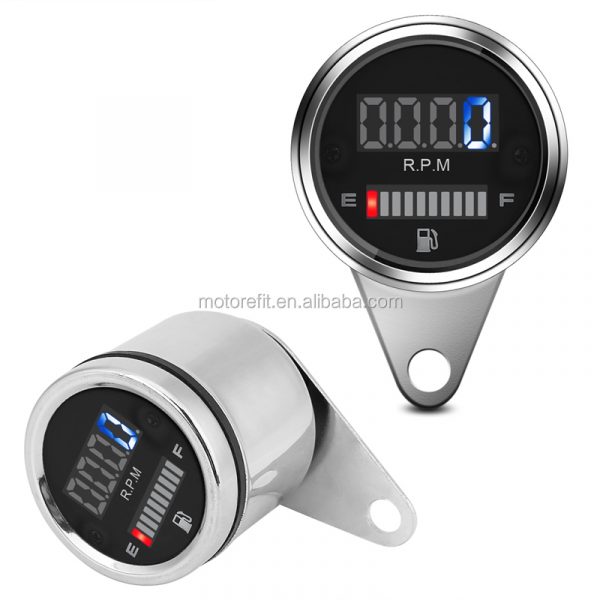

RTS 12 V motorcycle tachometer Meter LED Backlight LCD motorcycle Speedometer digital level gauge oil 12RPM

12 V motorcycle tachometer Meter LED Backlight LCD motorcycle Speedometer digital level gauge oil 12RPM

Description

Fitment:
Universal fit for any motorcycles(Not Work if your motorcycle doesn’t have fuel sensor)

Specifications:
Input Voltage: DC 12V
Dial diameter:50mm(2”)
Overall diameter:62mm(2-7/16″)
Wire Length: Approx. 30cm(11.8”)

Features:
Tachometer and fuel gauge combined into one, a high performance kit for motorcycle.
Stainless steel shell with glass lens, rustless, anti-corrosion allows it to withstand abominable condition.
The gauge is of high sensitivity and unrivaled accuracy, display the data precisely.
Fully electronic digital display with black face and bright LED reads out, easily viewing at all angles during lighting conditions or in the darkness.
SMD chip electronic components, automatic placement engineering, stable operation.
Professional characteristics, high reliable for motorcycle modifying.

Wire connection:
Red wire connect to the power positive pole.
Black wire connect to the negative pole.
Green wire connect to the engine speed signal line.
Yellow wire connect to the fuel gauge signal line.

Tachometer installation and debugging method:
1.Connect the positive and negative pole to power supply correctly.
2.Turn on the electric door switch,tachometer will display to 0,and then let the signal line touch the positive pole of power supply.
If the digital display changes,it can work normally.
3.Connect the signal cable,start the car,and then it can display speed.

Fuel gauge installation and debugging methods:
1.Connect the positive and negative pole to power supply correctly.
2.Turn on the electric door switch,fuel gauge displays a grid of red,and then connected signal line to the negative pole.
Wait for a while,LED light will all light up slowly,indicating normal operation.
3.Connect the signal line, fill up,slowly adjust the potentiometer to make all the LED lights on.
When oil runs out,slightly adjust potentiometer so as to make only one red LED light on.(Please note: The original fuel gauge can not be used together)

Package :
1x LED tachometer
