Products Description
|
Parameter
|
||||||
|

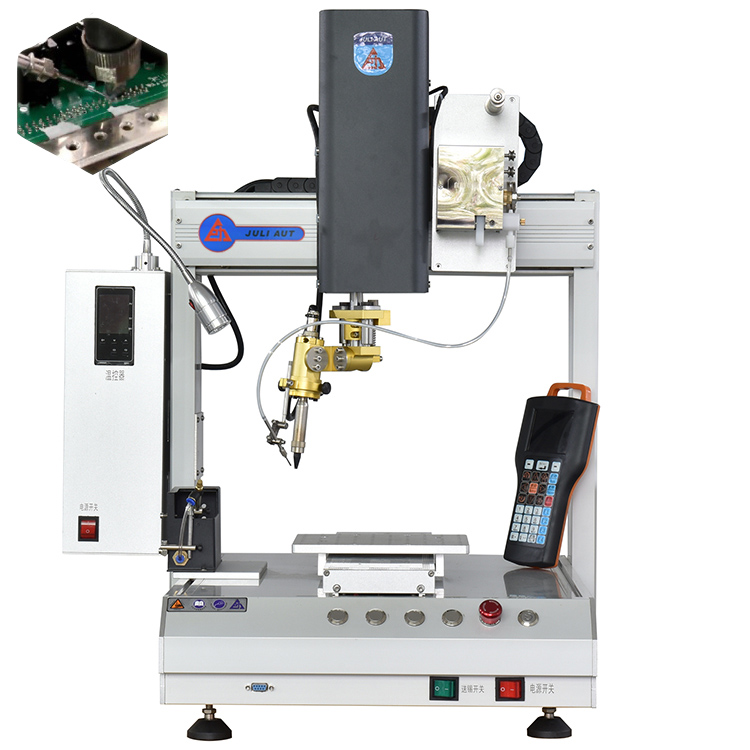

Model
|
BG-441R
|
|||||
|
Number of controlled axes
|
Triaxial
|
|||||
|
Effective travel
|
X axis
|
Y axis
|
Z axis
|
|||
|
400mm
|
400mm
|
100mm
|
||||
|
Transmission mode
|
Double-track timing belt
|
|||||
|
Power source
|
Stepper motor
|
|||||
|
Top speed
|
X, Y axis 500mm / sec, Z axis 300mm / sec
|
|||||
|
Repeat accuracy
|
±0.05mm
|
|||||
|
Maximum load
|
X/Y/Z-5kg/5kg/3kg
|
|||||
|

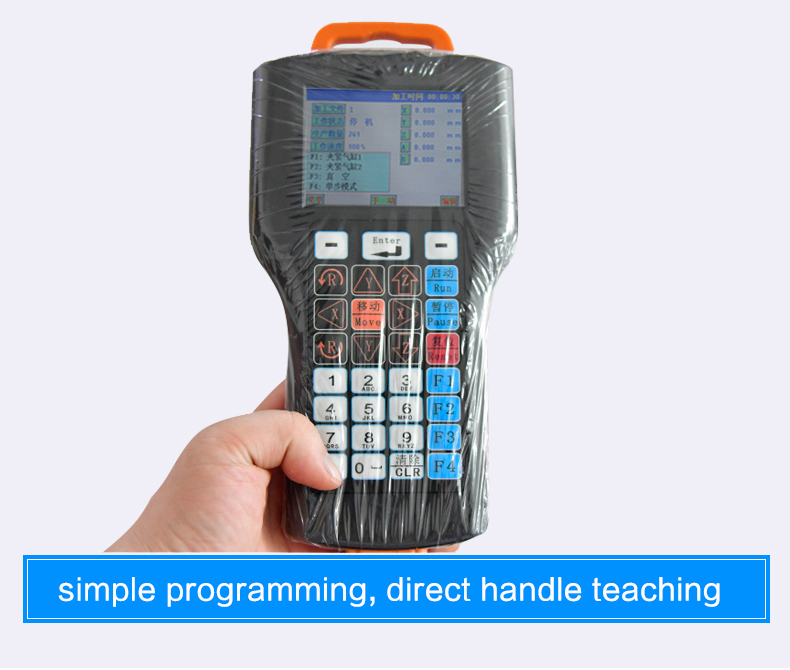

Control System
|
Three-axis control system
|
|||||
|
File storage space
|
A single processing file takes up to 3M storage space (5000 processing points)
|
|||||
|
Supporting Documents
|
CAD,CorelDRAW
|
|||||
|
Machine power
|
AC110-250V 50-60HZ 350W
|
|||||
|
Heating power
|
150W
|
|||||
|
Temperature range
|
50-500 degrees
|
|||||
|
Tin feeder
|
Standard tin broken tin feeder
|
|||||
|
Cleaning box
|
Air blow cleaning box
|
|||||
Packaging & Shipping
Our Services
1. Talk with our sales man and will get your fullrequirements; our engineer will design and creat the solution with engineering drawing;
2. after confirmed, we will start to prepare all stuff of the machine;
3.Assembly by another department will be the third step;
4. Debug and test will be a very important step ,make sure the machine working well before ship;
5. For sea transportation, the machine will be vacuum packed and waterproof to make sure arrives safe in long distance ship.
2. after confirmed, we will start to prepare all stuff of the machine;
3.Assembly by another department will be the third step;
4. Debug and test will be a very important step ,make sure the machine working well before ship;
5. For sea transportation, the machine will be vacuum packed and waterproof to make sure arrives safe in long distance ship.
Customers’ satisfy is the most important for us. From our engineers to the assembly workers, we are clearly that only the best product and service brings long run relationship.You will have no worries to work with a professional manufature who have 10 years of experience of customization service.
