Rock Bore Hole Crawler Mobile 200m Water Well Drilling Rig Machine Truck Trailer Tractor Mounted Water Well Drilling Rigs
Rock Bore Hole Crawler Mobile 200m Water Well Drilling Rig Machine Truck Trailer Tractor Mounted Water Well Drilling Rigs - Image 2
Rock Bore Hole Crawler Mobile 200m Water Well Drilling Rig Machine Truck Trailer Tractor Mounted Water Well Drilling Rigs - Image 3
Rock Bore Hole Crawler Mobile 200m Water Well Drilling Rig Machine Truck Trailer Tractor Mounted Water Well Drilling Rigs - Image 4
Rock Bore Hole Crawler Mobile 200m Water Well Drilling Rig Machine Truck Trailer Tractor Mounted Water Well Drilling Rigs - Image 5
Rock Bore Hole Crawler Mobile 200m Water Well Drilling Rig Machine Truck Trailer Tractor Mounted Water Well Drilling Rigs - Image 6

Rock Bore Hole Crawler Mobile 200m Water Well Drilling Rig Machine Truck Trailer Tractor Mounted Water Well Drilling Rigs

ر.س50,407.13

Qty:
Print Send to a friend
SKU: 211903019019181 Categories: , ,
Factory Full Hydraulic Hard Rock Water Well Drilling Machine Deep Crawler Water Wells Drilling Rig
Product Description
Water Well Drilling Rig/Water Well Drilling Machine
Pneumatic water well drilling rig is an efficient and multifunctional drilling equipment. It is mainly suitable for drilling water wells, agricultural irrigation wells, geothermal air conditioning holes and other wells, especially suitable for water intake projects in mountainous areas and rock formations. . The efficiency is ten times higher than that of traditional rotary drilling rigs, and the economic benefits created for users are extremely considerable. In particular, it solves the difficulty in drilling the soil layer with air DTH hammer, and the construction problem of the rotary drilling rig in the hard rock layer, gravel and pebble layer. It can work efficiently under various geological structures and realize the perfect combination of water drilling and air drilling.
Product Paramenters
Model
YG-FYX180
YG-FY200
YG-FY280
YG-FY300
Drilling Depth
180m
200m
280m
300m
Drilling Hole Diameter
90~350mm
Power
55Kw
70Kw
75Kw
85Kw
Working Pressure
1.7~3.0Mpa
Air Consumption
17~30m3/min
17~35m3/min
Lifting Force
12T
15T
17T
18T
Swing Torque
3200~4600N.m
3500~4800N.m
4000~5700N.m
5700~7500N.m
Dimension
3.8*1.5*2.2M
4*1.75*2.45M
4*1.85*2.5M
4.1*1.95*2.6
Weight
4.5T
5.8T
6.5t
7T

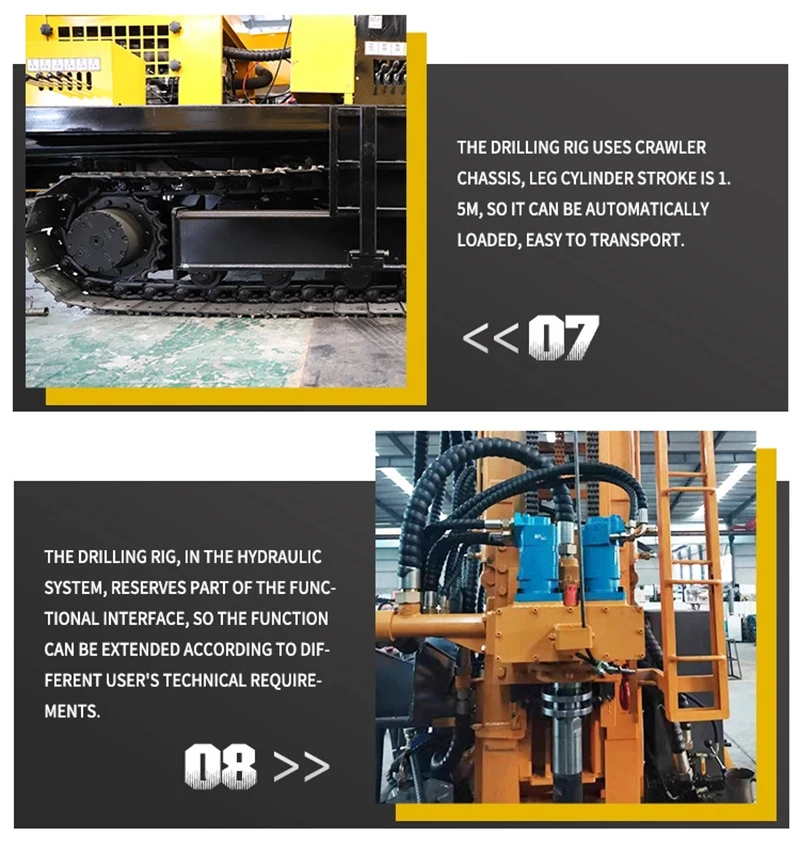

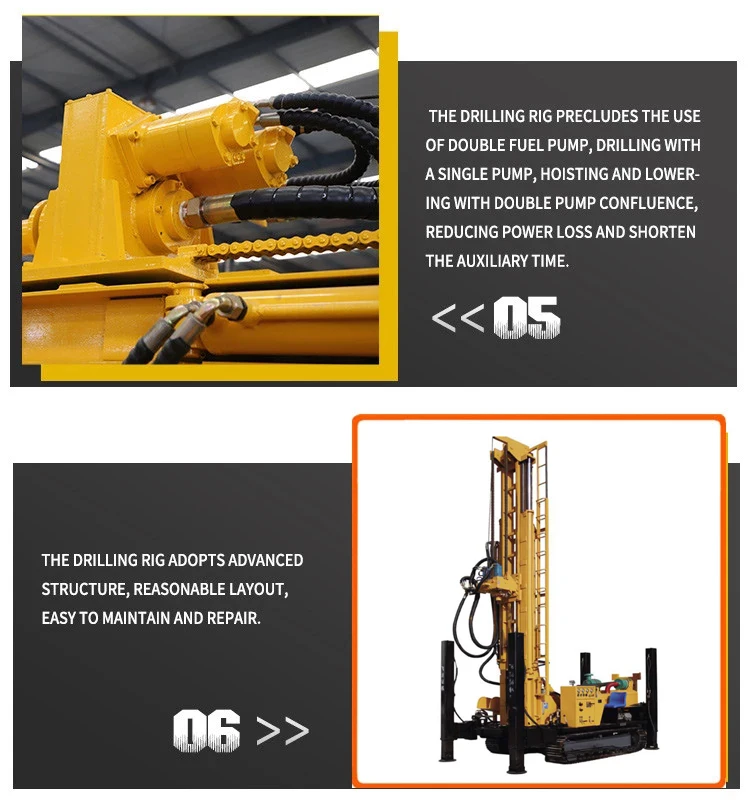

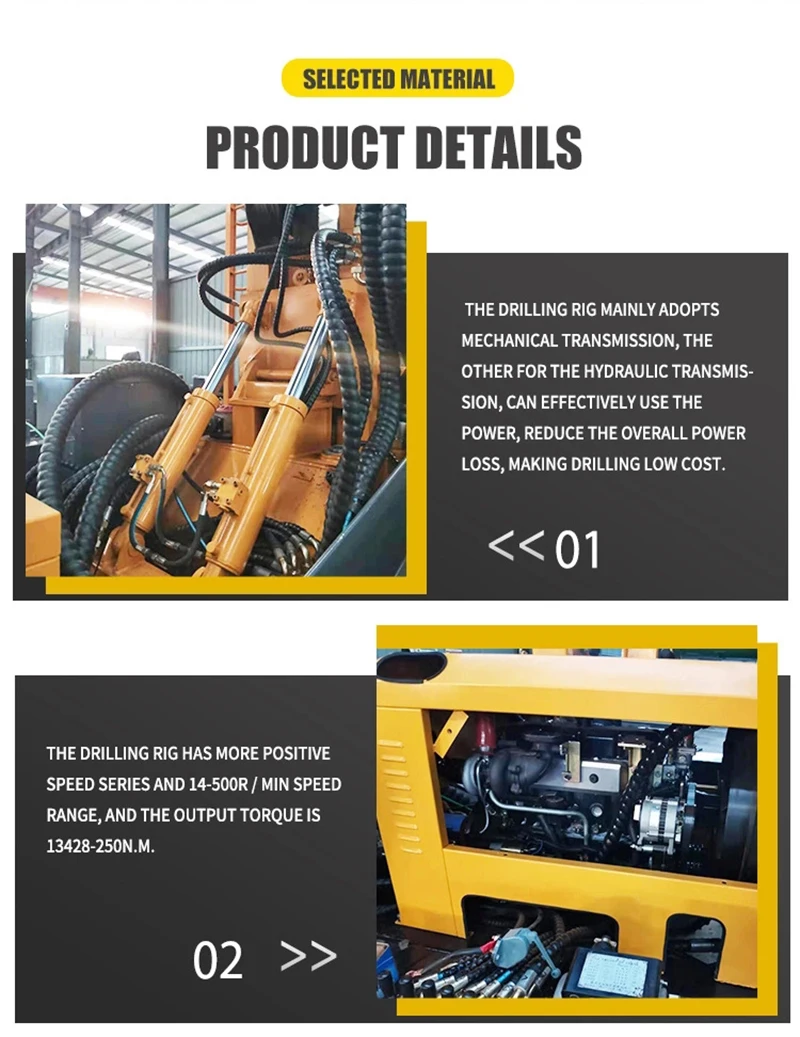

Detailed Images
Product Features
Water Well Drilling Rig/Water Well Drilling Rig
1. It improves drilling efficiency and reduces labor intensity With hydraulic automatic feeding mechanism. 2. It can be achievedwithout stopping to change rods, easy to operate, safe and reliable with ball clip holding mechanism orhydraulic chuck. 3. It hashole bottom pressure gauge to be easy to master the situation in the hole. 4. It also has advantage of Compact structure,concentrated handle, small footprint, light weight, strong decomposition, easy tomove. It can be operated in plains and mountainareas.

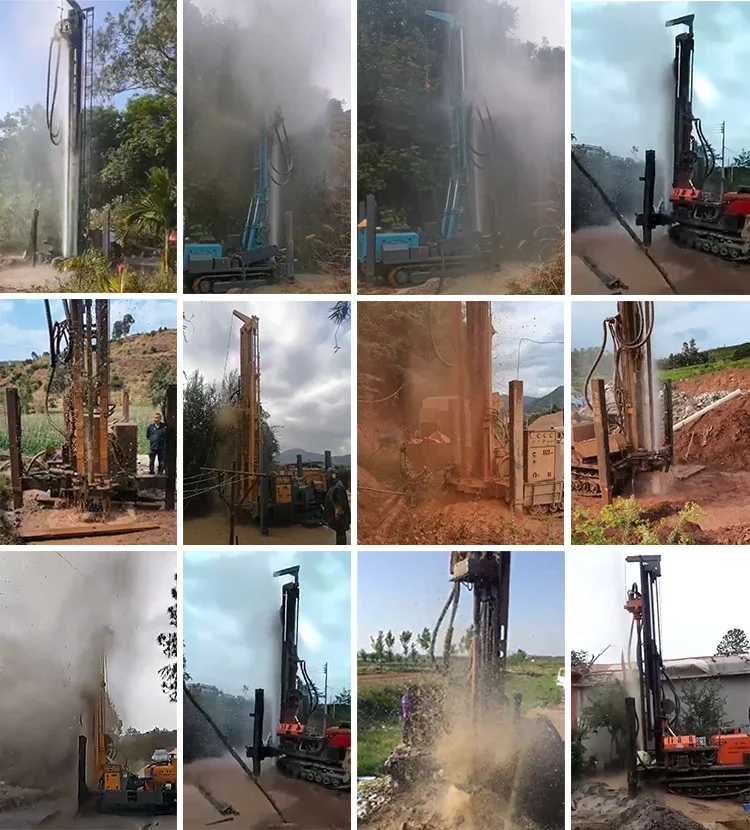

Application

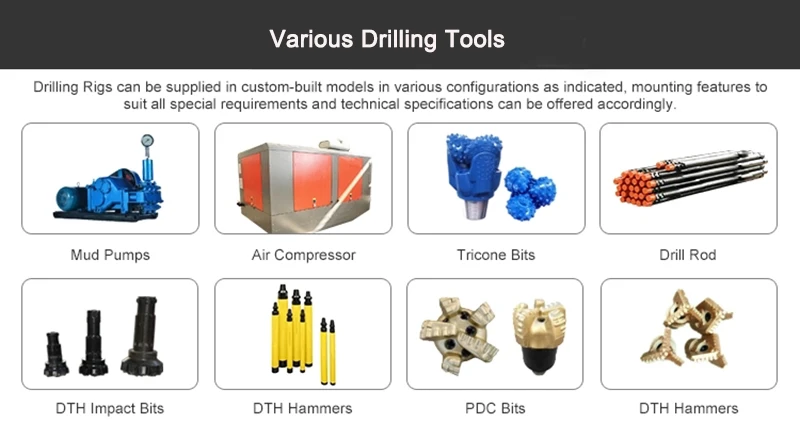

Spare Parts
