Products Description
Reanin-K3000 is a professional, cost-effective polyurethane spray and injection machine. It is equipped with a specially designed horizontal booster pump, which not only has small fluctuations in working pressure, but also has less wearing parts and is easy to maintain.
|
Standard Configuration
|
||
|
Model
|
Reanin-K3000 Polyurethane Spray Machine
|
|
|
Applicable materials
|
Polyurethane
|
|
|
The ratio of raw material
|
1:1
|
|
|
Viscosity range of raw materials
|
200-1000CPS (under working temperature)
|
|
|
Max working pressure
|
20MPa
|
|
|
Max fluid temperature
|
80°C
|
|
|
Max output
|
11kg/min
|
|
|
Max heated hose length (Optional)
|
90m
|
|
|
Heater power
|
4500W×2
|
|
|
Heated hose max power
|
3000W
|
|
|
Drive mode
|
Full pneumatic
|
|
|
Clean mode
|
Self-cleaning by air
|
|
|
Voltage (Optional)
|
Single phase 220V 50Hz
Three phase 380V 50Hz |
|
|
Whole power
|
13kw
|
|
|
Pneumatic source
|
0.6-0.9Mpa 1m³/min
|
|
|

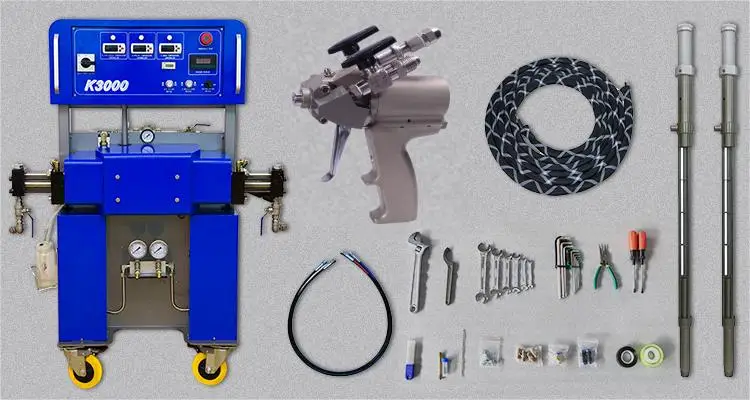

Standard Configuration:
|
||
|
Reanin-K3000 mainframe
|
1 set
|
|
|

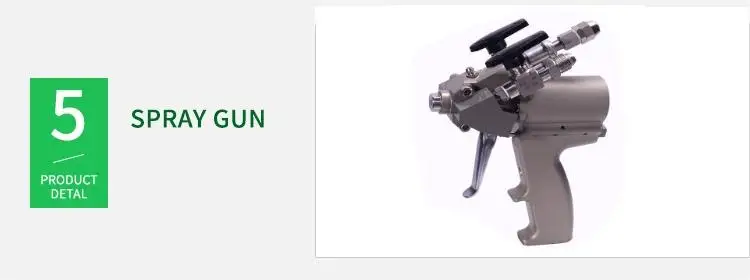

Reanin spray gun
|
1 set
|
|
|
Transfer pump
|
2 sets
|
|
|
Heated hose
|
15m
|
|
|
Whip hose
|
2 pcs
|
|
|
Transfer pump hose
|
2 pcs
|
|
|
Air pipe
|
1 set
|
|
|
Tools and spare parts
|
1 set
|
|
|
English user manual
|
1 set
|
|
|
Transportation Parameters (Based on standard configuration):
|
||
|
Model
|
Reanin-K3000 Polyurethane Spray Machine
|
|
|
Package size (LXWXH)
|
110X80X145cm
|
|
|
Net weight
|
183kg
|
|
|
Gross weight
|
220kg
|
|
How It Works
Detailed Images
Advantages
1.This machine has pass the CE certificate, 2.Panel with operation tips is easy to set up, 3.Fully pneumatic design, it can work normally without electricity, 4.The horizontal booster pump adopts a coaxial mechanism and has the function of two-way supercharging. The working pressure fluctuation value is small, and the replacement of the wearing parts is simple, 5.The high-speed circulating lubricating fluid in the anti-curing lubrication cylinder can quickly take away the leakage of materials, and the ISO pump shaft is always immersed in the lubricating fluid to avoid crystallization, 6.A/B/Hose independent temperature control, can set different temperatures separately, adapt to the temperature requirements of different materials, 7.Variable frequency temperature control mode and special real-time temperature collection sensor ensure that the material temperature is controlled within a small fluctuation range, 8.The integrated heated hose is covered with wear-resistant insulating sleeve, which not only can effectively keep the temperature of the material, but also can prevent the occurrence of leakage, short circuit, etc. 9.The transfer pumps, mainframe and spray gun are equipped with filtering devices, which can effectively filter impurities and crystals in the materials and reduce the occurrence of the blocking gun, 10.High-precision pressure gauges are available in MPA and PSI to meet the needs of different customers, 11.Equipped with an action counter to accurately calculate the amount of raw materials, 12.The spray gun is made of alloy material, light weight, less wearing parts, easy to use and maintain.
