Product Description:
1. heavy duty cast iron lathe bed
2 stepper motor
3. Easy to operate without software
4.Ballscrew transmission
Video for you reference
https://www.youtube.com/watch?v=VqMtwyjLRtk
https://www.youtube.com/watch?v=luxAx_oq2Xo
Technical Data:
Model |
TJ 3080 |
Max. swing over bed |
80mm |
Distance between centers |
300mm |
Spindle bore |
21mm |
Taper of Spindle bore |
MT3 |
Range of Spindle speeds |
50-2500rpm |
Taper of tailstock quill |
MT2 |
Metric threads can be cut |
0.5-3mm |
Inch threads can be cut |
10-44TPI |
Max travel of cross slide |
75mm |
Bed of width |
100mm |
Travel of Tailstock sleeve |
60mm |
Motor power |
650W |
GW/NW |
150 |
Package size( L*W*H ) |
780*480*420mm |

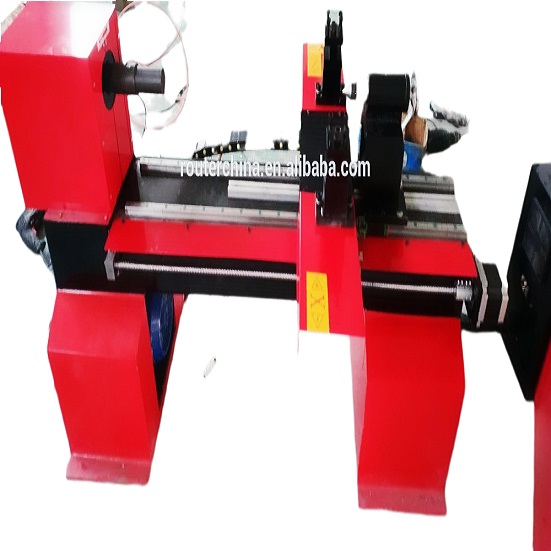

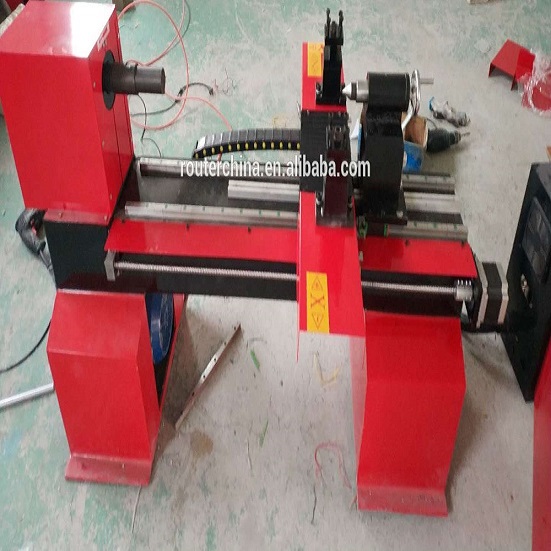

Prodcure details
Make gourd on computer Tailsstock on the machine
Bigger stepper motor Four jaw-chuck to fix workpiece
Application
Bead, barrel, all kinds of buddha head pagoda, gourd pendant, hoist pieces, wood rhinoceroshorn cup, bowl, whip,cigarette holder, eggs,ashtray, scroll painting head.
Sample show
Why Us?
Years of experience
We are a dedicated team of professionals with years of experience. All our team members have been working for CNC machine companies before and gained real-life know-how in business, marketing and technical areas. All supported by strong theory & research. We have successfully helped our clients with their sourcing, operation and other needs.
High quality service
Our main goal is to provide high quality services and customer satisfaction. To achieve this we work by our strict internal rules. When implementing procedures, we are only using the best practices and industry standards.
Flexibility
We are aware that all our customers are different. Therefore we can build a suitable package out of our services, to provide the optimal solution: maximum of results with the budget you are willing to spend.
Technical background
We are also working with many R&D institution and university, Therefore we are not only able to provide you with a professional product based on our knowledge and experience, but also implement all suggested changes.
