Products Description

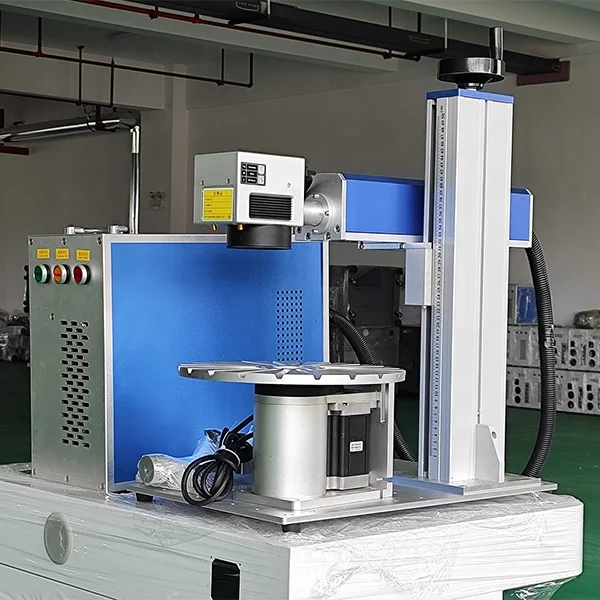

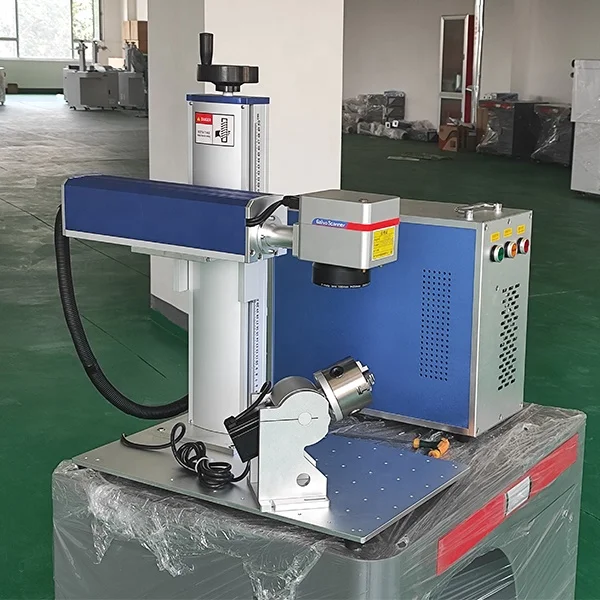

Blue/White 20W 30W 50W Portable split fiber laser marking machine
1.–Laser power output is stable,and light spot quality is good.Ultrahigh accuracy and fineness,with resolution up to 2540dpi.
2.–Quick marking and cutting speed at 2-3 times that of traditional machines.
3.–There is no restriction in operation system.It is convenient in operation,with fully closed light paths,so it is stable,reliable
and free in maintenance with ultra-long service life up to more than 100,000 hours.
4.–No pollution,no noise,and no consumable materials.High elector-optical conversion efficiency . The gross power consumption is 500W, which is a tenth of lamp pumped solid laser marking machine, so can greatly save energy.
5.–No need any maintenance, long life, small volume, suit for working in atrocious working conditions.
6.–Powerful marking software. It is compatible with file generate from coreldraw, AutoCAD, Photoshop, etc; support PLT,PCX, DXF, BMP format; SHX , TTF font can be used directly ;it also supports automatically coding,printing serial number, batch number, date, bar code,2D bar code, number jumping automatically, etc.
2.–Quick marking and cutting speed at 2-3 times that of traditional machines.
3.–There is no restriction in operation system.It is convenient in operation,with fully closed light paths,so it is stable,reliable
and free in maintenance with ultra-long service life up to more than 100,000 hours.
4.–No pollution,no noise,and no consumable materials.High elector-optical conversion efficiency . The gross power consumption is 500W, which is a tenth of lamp pumped solid laser marking machine, so can greatly save energy.
5.–No need any maintenance, long life, small volume, suit for working in atrocious working conditions.
6.–Powerful marking software. It is compatible with file generate from coreldraw, AutoCAD, Photoshop, etc; support PLT,PCX, DXF, BMP format; SHX , TTF font can be used directly ;it also supports automatically coding,printing serial number, batch number, date, bar code,2D bar code, number jumping automatically, etc.
Machine parameters
|
Laser type
|
Fiber laser marking machine
|
||||||
|
Laser power
|
20W/30W/50W
|
||||||
|
Working area
|
110*110/150*150/175*175/200*200/300*300mm (Optional)
|
||||||
|
Support system
|
WIN XP/WIN7/WIN8/WIN10
|
||||||
|
Laser wavelength
|
1064nm
|
||||||
|
Application
|
Metal and partial non-metal
|
||||||
|
Marking speed
|
8000mm/s
|
||||||
|
Repeated precision
|
±0.01mm
|
||||||
|
Working voltage
|
110V/220V±10
|
||||||
|
Cooling mode
|
Air cooling
|
||||||
|
Supported graphic formats
|
AI,PLT,DXF,JPG,BMP,PNG,DST,DWG,TIF,EZD
|
||||||
|
Control software
|
EZCAD 2.0
|
||||||
|
Optional parts
|
Rotary device,Lift platform,other customized
|
||||||
|
Warranty
|
2 years
|
||||||
|
Package
|
Plywood box
|
||||||
Product configuration

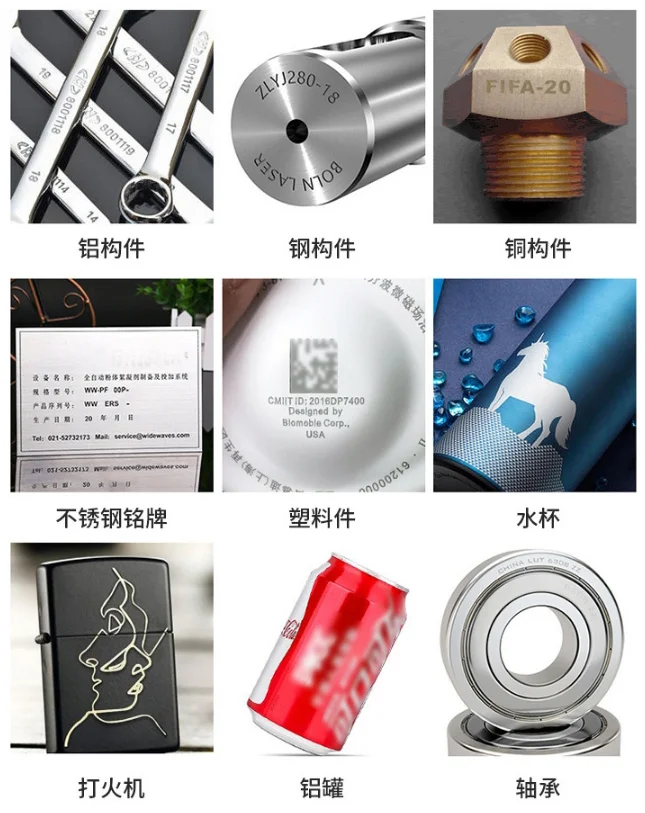

Machine application
