This series jet printer is developed and manufactured based on thermal foaming technology. The product is stable and easy to operate. It has user-friendly design, own information editing and storage system. It is suitable for various use scenarios and printing all kinds of materials.
Advantages:
non-blocking nozzles,nozzles maintenance-free, plug-free 100-240V can be used, Ideal equipment for small and medium-sized factory customers, simple operation, maintenance-free, cost-effective. Satisfy customer’s demand for spray printing
Feature:
1. Controlled directly by single chip computer, the system is very stable, and it will not slow down for long time.
2. Each interface design is more humanized and the function design is more intelligent. The user can operate with very large capacity.
3. There are English dot matrix font library and more than a dozen commonly used fonts and dot matrix font library.
4. Each file has its own technical parameters to ensure that different documents are not used in spray printing. Re-adjustment parameter.
5.Can adjust the technical parameters of spray printing independently under the spray printing interface. It is more convenient to operate
6. Flash spray, strong spray function, and achieve sprinkler blockage prevention.
7. Ink-jet volume can be adjusted. It can adjust information black-light
8. The industry’s first ink cartridge extrusion maintenance method, more convenient.
| Model | OH-288 |
Number of Printing Lines: The number of rows can be chosen within 25.4mm, and the font with the height of 1mm to 25mm can be sprayed.
Special functions: Flash spray, strong spray, movablebar code, movabletwo-dimensional code, etc.
Spray Printing Content: Text, counter (changeable), time and date (changeable), bar code (changeable), two-dimensional code (changeable), picture, etc.
Machine System: Operating System of Thermal Foaming Printer
Spray Printing Speed: The maximum printing speed can reach 120 meters per minute, and the printing speed does not change with the increase of the number of rows; the maximum resolution is 600 DPI
Operating interface: Humanized operation of the english interface, including the english font; English menu;Easy to operate: canachieve the effect of operation

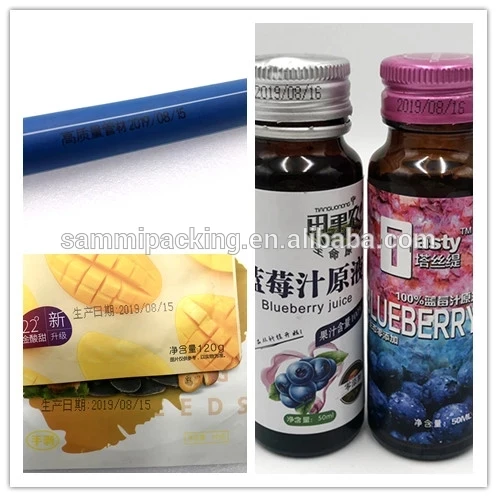

Spray Printing Material: It can be sprayed on metal, plastic, wood, aluminium platinum, carton, building materials, electronic products and other surfaces.
Ink Consumables: Use environmentally friendly fast-drying ink or water-based ink, without adding solvents, pollution-free, without external air source or built-in air pump
Communication Interface: Through the USB interface,the U disk uploads the required picture LOGO to the machine, upgrade program and so on.
Contact switch, pedal switch, sensor interface and synchronizer interface.It can set three induction trigger signals in thesystem: sensor induction, synchronizer induction, sensor and synchronizer mixing.
It can choose different printing height 12.7mm or 25.4mm ,OH-288 max print height is 25.4mm
Machine size: 22*18*20cm

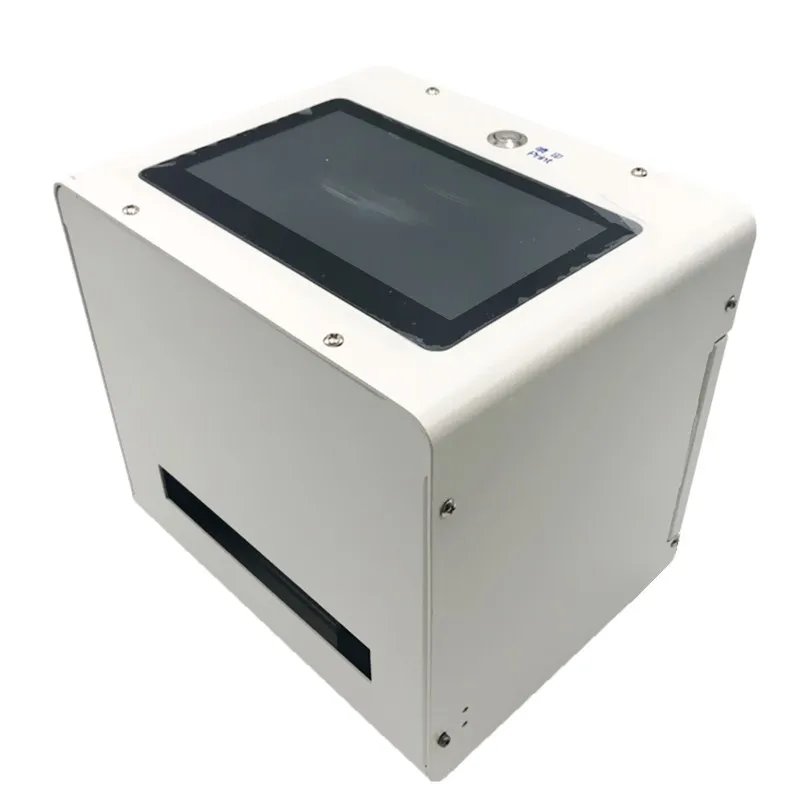

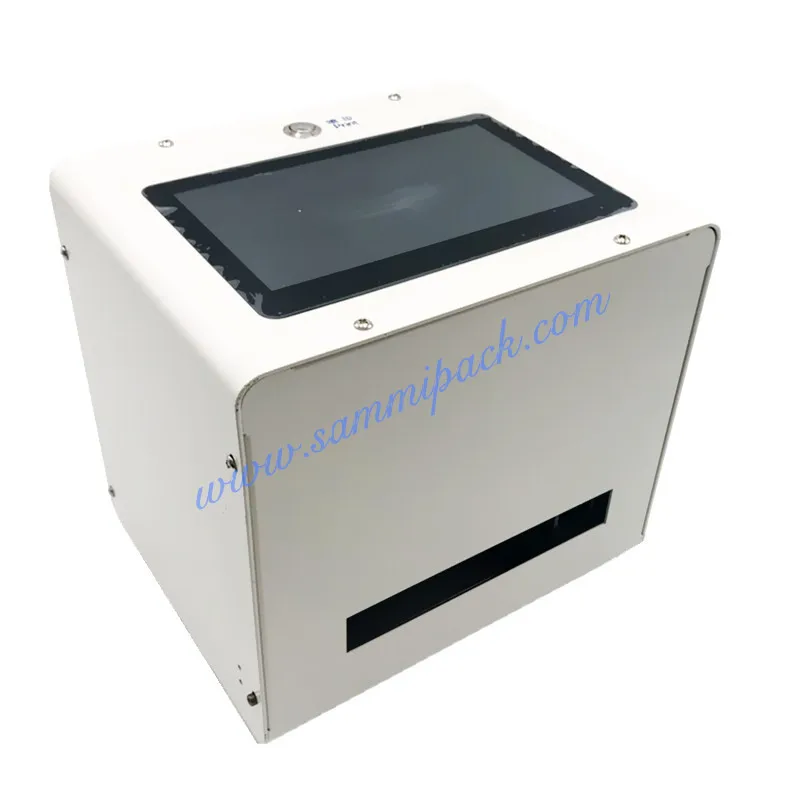

Machine Pictures
