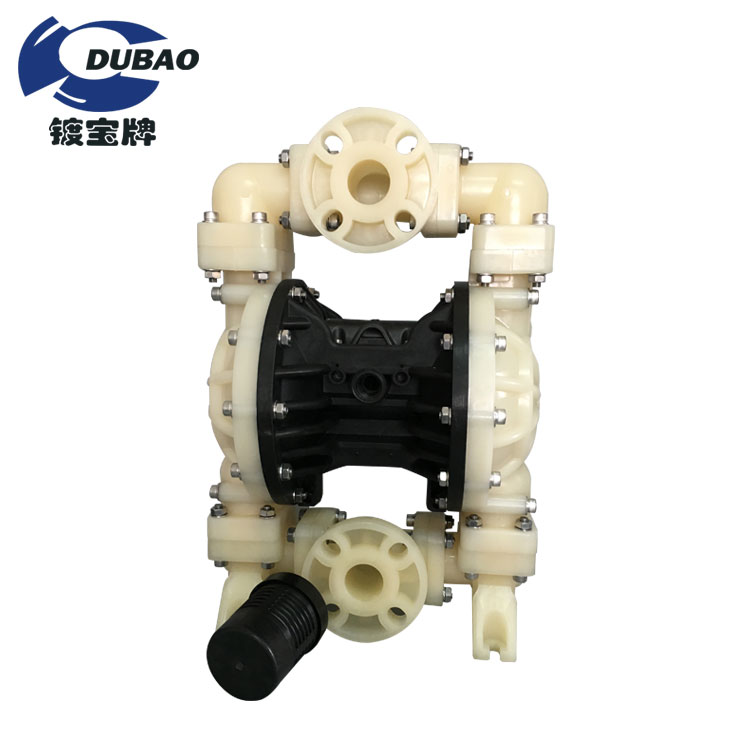

PVDF Double Air Operated Pneumatic Diaphragm Pump For Chemical Industrial Liquid Transfer
1. The suction head is up to 5m, the lift head reaches 84, the outlet pressure is more than 8.4 bar, and the viscous liquid is transported.
2. The flow is spacious, with good performance, and allows the maximum particle diameter to reach 9.4 mm. Pumping mud, impurity, the pump wear very little;
3. Lift, flow can be achieved through the valve opening stepless adjustment ( air pressure adjustment between 3 – 8.4 bar ); 4. The pump has no rotating parts, no shaft seal, the diaphragm and other pumping medium is completely separated from the moving parts and working medium of the pump, and the conveyed medium will not leak out.
5. It is not necessary to use electricity, and it is safe and reliable in the flammable and explosive places;
6. Easy to use, reliable, open and stop, simply open and close the gas valve. Even if there is no media operation for a long time due to unforeseen circumstances, or a sudden stop pump will not be damaged.
|
Model |
Max Capacity L/min |
Air Inlet (in) |
Inlet Outlet(in) |
Max Head(m) |
Suction Head(m) |
Max Particle diameter(mm) |
Max air pressure(bar) |
|
MK-06 |
27 |
1/4 |
3/8 |
70 |
Dry 2.1 Wet 3.7 |
1.6 |
7 |
|
MK-10 |
27 |
3/8 |
1/4 |
70 |
Dry 2 wet 6.4 |
1.6 |
7 |
|
MK-15 |
57 |
3/8 |
1/2 |
84 |
Dry 4 wet 7.6 |
2.5 |
8.4 |
|
MK-20 |
57 |
3/8 |
1/2 |
84 |
Dry 4 wet 7.6 |
2.5 |
8.4 |
|
MK-25 |
157 |
1/2 |
1 |
84 |
Dry 4 wet 8 |
4 |
8.4 |
|
MK-40 |
358 |
1/2 |
1/2 |
84 |
Dry 5 wet 8 |
5 |
8.4 |
|
MK-50 |
587 |
1/2 |
2 |
84 |
Dry 5 wet 8 |
6 |
8.4 |
|
MK-80 |
1060 |
3/4 |
3 |
84 |
Dry 5 wet 8 |
9.4 |
8.4 |
1. Idling ,Self-priming , Submerse capability.
2. Provide stall-free, ice-free zero leak operation.
3. Bolt joint design provides even sealing pressure for optimal performance
4. Modular air valve,low pulsation operation,providing smooth and rapid changeover.
5. No electricity . It’s safe and realiable while using in the flammable and explor place .
6. Diversity of material,no rotating parts,applicable to various erosive situations.
7. Can pump corrosive , volatile, flammable, poisonous fluids with particles and high viscosity.
8. Delivery lift and flow can pass the pneumatic valve open to realize the stepless adjustment.
