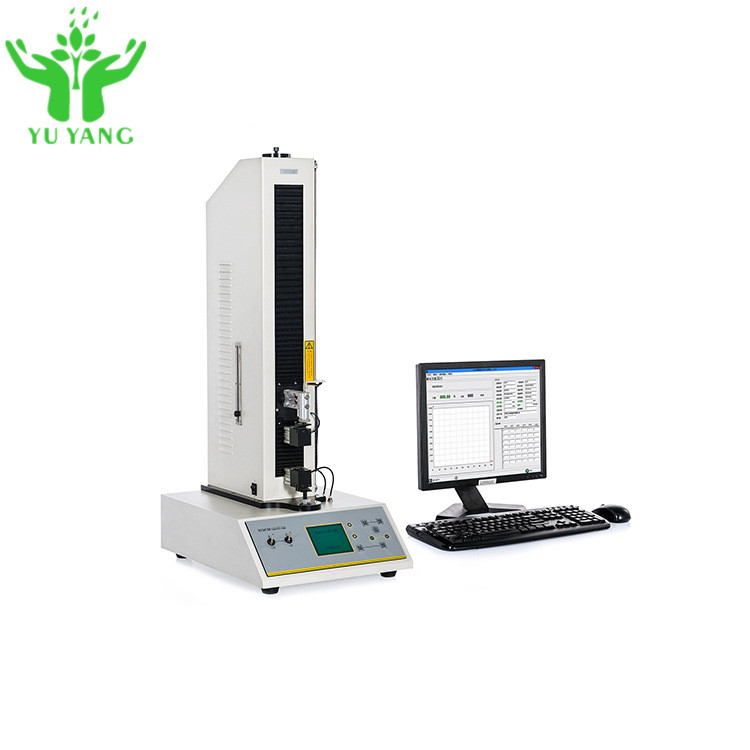

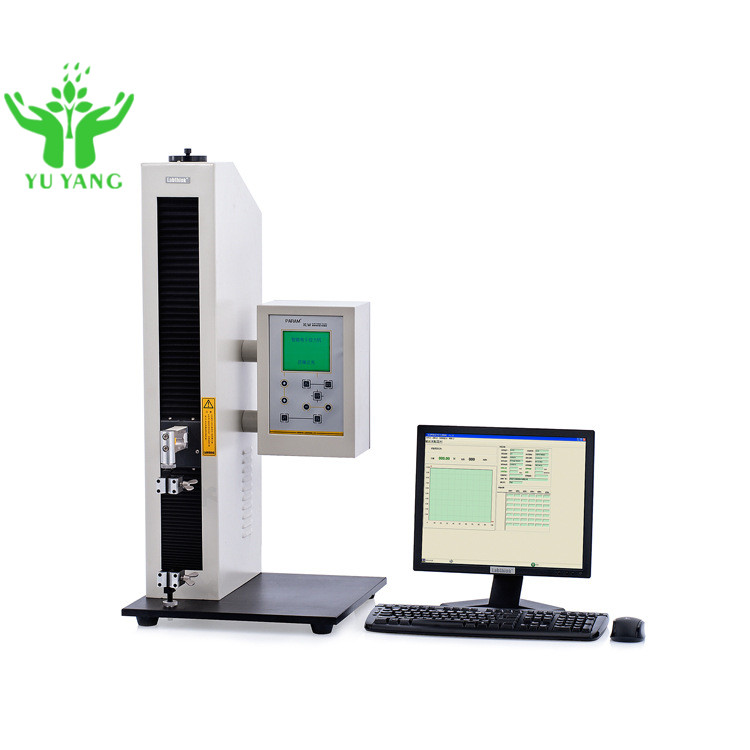

Professional Textile Testing Equipment Tensile Testing Machine Single Column Universal Material Tensile Testing Machine
This machine is mainly used to test the mechanical properties of metal such as stretching, compression and bending, etc., and it can also realize the constant stress, constant strain, creep, relaxation, axial and radial, etc.According to GB, JIS, ASTM, DIN and other standards, parameters such as tensile strength, yield strength, elongation, constant elongation stress, constant stress elongation and elastic modulus can be calculated automatically
|
item
|
value
|
|
Warranty
|
1yaer
|
|
Certification
|
IECEE
|
|
Customized support
|
OEM, ODM, OBM
|
|
Place of Origin
|
China
|
|
Brand Name
|
YUYANG
|
|
Model Number
|
YYL056
|
|
Power
|
Electronic
|
|
Maximum load
|
500kg
|
|
Force unit
|
N,KN,Kgf,Lbf
|
|
Power consumption
|
0.5 kVA
|
|
Power source
|
220 VAC, 50/60 Hz
|
|
Volume
|
57×47×120cm
|
|
Weight
|
70kg
|
|
Effective width of test
|
120 mm
|
|
Test stroke (including fixture)
|
800 mm
|
|
Speed control accuracy
|
±0.2% (0.5 Grade )
|
|
control mode
|
Computer software sets speed, sets load breaking (breaking), running
time and other control methods
|
||||||
|
Manual operation box
|
It is convenient to calibrate and position the specimens when loading and
holding them. It can automatically determine the material breaking,
crushing, and stop the machine. It can be set to return
automatically
|
||||||
|
Curve type
|
Load – displacement, load – time, displacement – time.
Stress – strain, strain – time, stress – time. Curve vertical and horizontal coordinates can be set arbitrarily. |
||||||
|
Available test data
|
Maximum strength, minimum strength, fracture value, upper and lower
yield strength, tensile strength, compressive strength,
modulus of elasticity, elongation, maximum, minimum, mean value, etc. It has multiple protection such as overload, overcurrent,
overvoltage, undervoltage, overspeed and travel. |
||||||
|
Load sensing
|
High precision pressure and tension actuator,(multiple sensors can be
installed at the same time – optional)
|
||||||
|
Test speed range
|
servo-type： 0.5~500 mm/min Speed Promise
|
||||||
We are a high-tech enterprise which is specialized in developing and manufacturing Fire Testing Equipment, Building Material Fire Tester, Wire and Cable Fire Tester, Environmental Test Chamber, Textile Testing Equipment, Toys Testing Equipment and etc.
Decades of research and development strengthen the leading edge of YUYANG in this field, and established as an crucial role in R&D on high quality and high-cost performance of testing equipment. YUYANG’s testing equipment are widely used in various field: scientific institutions, colleges, inspection institutions, auto parts, electronics, electricals, lithium battery, LED, photoelectricity, mobile, plastic and rubber, display, telecommunication, chemical industry, aerospace, building material and product, wire and cable, toys, furniture, textile and fabrix, etc. All YUYANG testing equipment are designed according to international test standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA,CEN and so on.
DONGGUAN YUYANG INSTRUMENT CO.,LTD looks forward to cooperating with customer all over the world.
If you are interested in any of our products or would like to discuss a custom order. Please feel free to contact us. We are looking forward to forming succesful business with new clients around the world in the near future.
We are based in Guangdong, China, start from 2018,sell to Southeast Asia(11.00%),Eastern Asia(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),Northern Europe(9.00%),South Asia(9.00%),North America(7.00%),South America(7.00%),Western Europe(7.00%),Eastern Europe(6.00%),Mid East(6.00%),Oceania(5.00%),Central America(3.00%),Africa(0.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Testing Equipment,Tensile Testing Machine,Environmental Test Chamber,Fire Testing Equipment,Induction Heating Machine
4. why should you buy from us not from other suppliers?
We are a high-tech enterprise which is specialized in developing and manufacturing Fire Testing Equipment, Building Material Fire Tester, Wire and Cable Fire Tester, Environmental Test Chamber, Textile Testing Equipment, Toys Testing Equipment and etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
