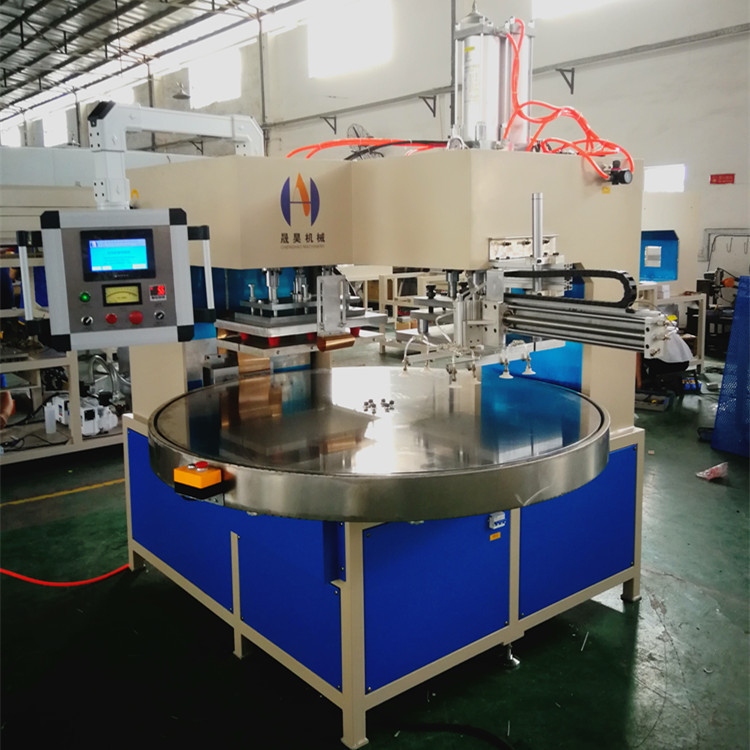

Name: Professional manufacturer 12KW High Frequency Automatic Round Table Blister Welding And Cutting Machine Plastic Welders
SKU: 1143532019181
Price: 88395.14 SAR
Availability: InStock

Professional manufacturer 12KW High Frequency Automatic Round Table Blister Welding And Cutting Machine Plastic Welders

ر.س88,395.14

Compare

Request quotation for: Professional manufacturer 12KW High Frequency Automatic Round Table Blister Welding And Cutting Machine Plastic Welders

Advantage:

1. This machine adopts the European coaxial high frequency resonator with low loss. The high cycle output power is powerful. It can weld the products in the fastest time and greatly increase the production.

2. Automatic disc type high frequency fuse is equipped with special high frequency fuse mold, which has good effect of welding and cutting. There is a fundamental difference between high frequency fuse mold and other company’s general fuse mold, that is, the fuse mold is more durable than ordinary fuse mold, the bottom mold does not need to be replaced and never worn. The fuse mould can be used for about 100000 times.

3. The automatic disc type high frequency fuse is driven by Taiwan motor, with accurate position positioning. The fuse is equipped with nl-5557 high cycle spark protection system, with high sensitivity to prevent high cycle mold from burning. High frequency frequency stabilizer and high frequency shielding device are installed to minimize high frequency interference and avoid radio wave interference. At the same time, the frequency drift caused by improper operation can be avoided, and the damage of electrode and material can be reduced to a very low level. At the same time, the warning light will also be on.

4. The oscillation frequency of the automatic disc type high frequency fuse meets the international industrial band standard. The high-frequency electromagnetic field is generated by the high-q-value vacuum tube self-excited oscillator, which makes the processed plastic in the high-frequency electric field between the upper and lower electrodes, causing the molecules to produce violent movement friction, and the fusion effect is obtained under the pressure of the mold. The automatic disc type high frequency fuse adopts H-type gantry structure, left and right two-way automatic slide table, and continuously pushes the mold back and forth, with high efficiency.

5. The machine is equipped with the manipulator, and the material is picked up by the manipulator, and the packaging is efficient.

Operation mode:

This equipment is an automatic machine which can fuse, cut and shape automatically by manual discharging. When working, it is put into the mold position by manual discharging. Press the start switch, the bottom die slide plate automatically slides to the fixed working position, and the head cylinder drives the die to descend. Through delayed preheating, high cycle welding, cutting and shaping, the die head rises after finalization, At the bottom, the slide plate slides out automatically, and the manipulator takes out the finished product automatically. In production, the time of each part can be set freely, which is generally 3-10 seconds.

Specifications

Model	CH-12KW-STRD
Power Supply	220V/380V 3P 50/60HZ
Power	12KW
Oscillation frequency	27.12MHZ
Max Pressure	20T
Disc Diameter	150MM
Size of upper platen	350*400MM
Machine Dimension	130018002300mm
Machine Net Weight	1200KG

Samples

Scope of application:
It is mainly applicable to the sealing and packaging of double-sided blister shell of APET, PETG, gag, pet environmental protection materials, blister paper card packaging, toothbrush sealing packaging, as well as EVA cloth leather, leather, OPP, PU, watch strap, strap, hot water bag, thermal bag and other products that need to be fused and fused simultaneously.

Product packaging

Packing:

We use ply-wood case for packing machines, it will meet export standard like safty, protection requirment and durable performace in long time shipping by sea or air, our package no need fumigation.

Delivery:

For machine is big and heavy parcel, and different country with different delivery cost. And the best delivery we suggest is by sea, so the delivery cost will be depended on your destination port. The price show on the website just the machine EXW price, please understand.
