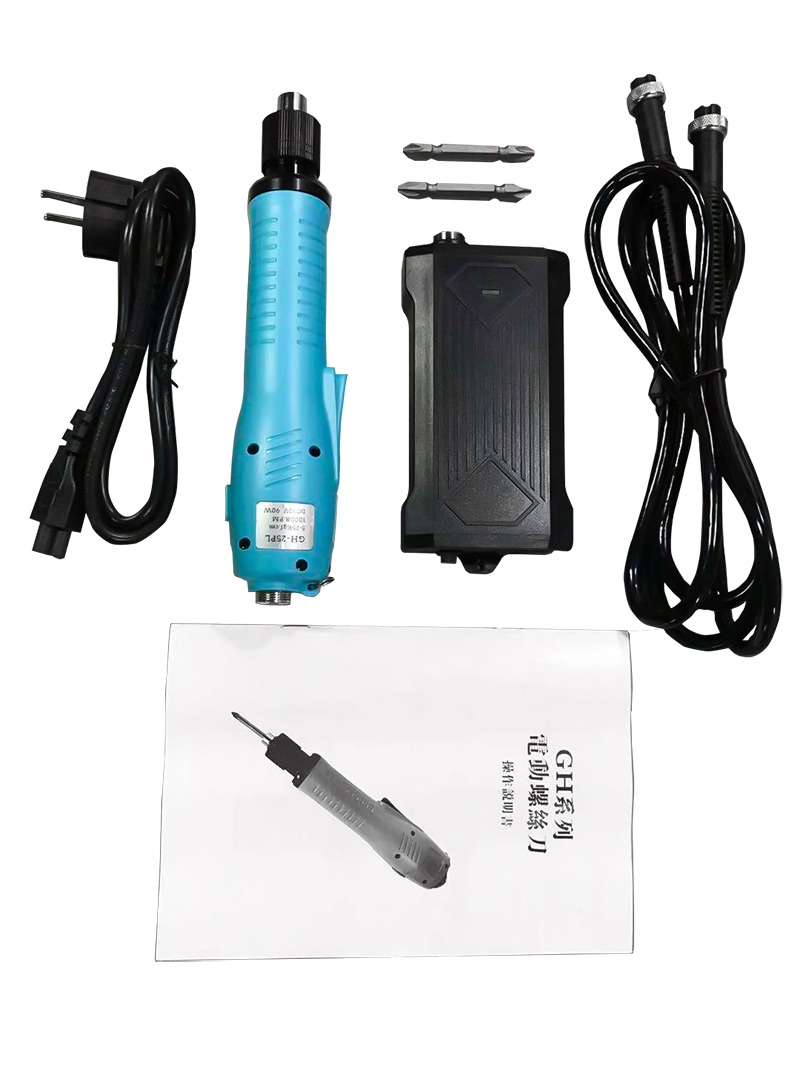

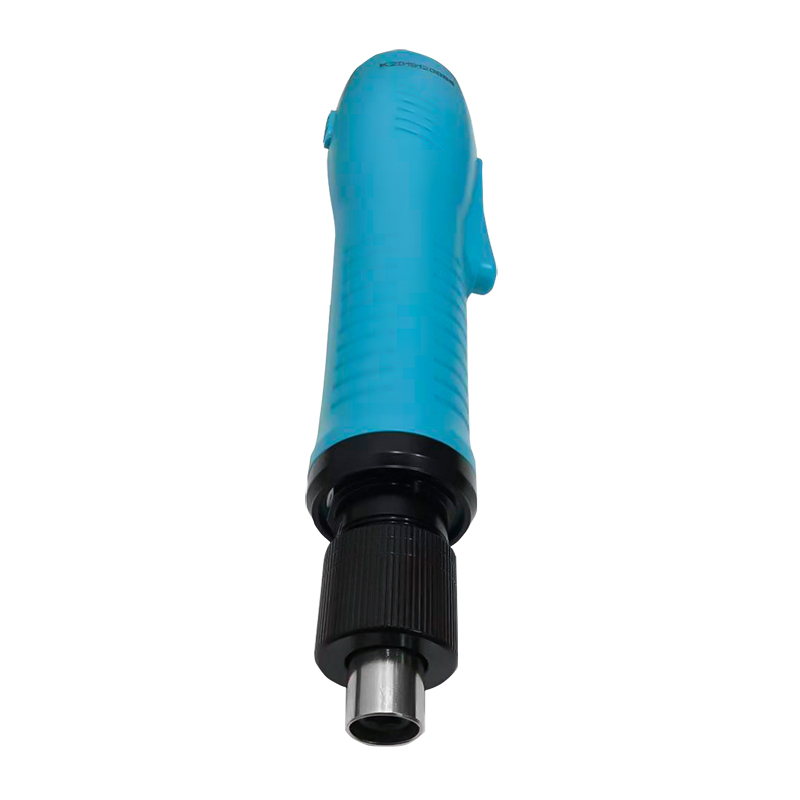

Professional high quality industrial assembly line electronic tools electric screwdriver GH-15L
Two start mode: Lever start and push start
It is specially designed fro screw fasten automation equipment with signal output
With imported brushless motor, it runs very stable, long life, and excellent performance
Low vibration, noise, and electromagnetic interference, it fits environmental request, especially for dustfree working room.
The internal stop device adopts magnetic induction system, it owns high sensitivity, short braking, low impact force, and it is not easy to be broken after being used a long time.
The newest power supply design, very light and compact, it fits 100-250V voltage
The three core power cord adopts silicon material with anti-hardening function and long life feature
The torque setting is very precise, it is suitable for mobile phone, digital camera, and other high accuracy electric products
The shape is designed according to ergonomics, the shell is made of number one class PC material, it is small body, light weight, with resistance to impact, it will not be tired after worker uses it a long time, the working efficiency is improved too much
Model No |
GH-10L/PL/PLK |
GH-15L/PL/PLK |
GH-20L/PL/PLK |
GH-25L/PL/PLK |
||
Input voltage |
|
DC-30V |
||||
Torque Range |
Kgf.cm |
1-10 |
2-15 |
3-20 |
5-25 |
|
Lbf.in |
0.868-8.68 |
1.74-13.02 |
2.6-17.36 |
4.34-21.7 |
||
N.m |
0.098-0.98 |
0.2-1.47 |
0.29-1.96 |
0.49-2.45 |
||
Torque accuracy |
+/-3% |
+/-3% |
+/-3% |
+/-3% |
||
Torque adjustment |
stepless |
stepless |
|
stepless |
||
Torque adjustment mode |
Back stop screw/internal adjust |
Backstop screw/internal adjust |
Back stop screw/internal adjust |
Back stop screw/internal adjust |
||
Start mode |
Lever/push start |
Lever/push start |
Lever/push start |
Lever/push start |
||
Speed without loading r.p.m |
0-1200 |
0-1200 |
0-1200 |
0-1200 |
||
Weight (g) |
445 |
445 |
445 |
445 |
||
Current without load |
0.3A |
0.3A |
|
0.3A |
||
Bits |
¢4/¢5/H6.35 |
¢4/¢5/H6.35 |
¢4/¢5/H6.35 |
¢4/¢5/H6.35 |
||
Screw type |
Mechanical tooth |
1.6-3.0 |
2.3-3.5 |
2.6-4.0 |
2.6-5.0 |
|
Self-tacking tooth |
1.6-2.6 |
2.0-3.0 |
2.0-3.5 |
2.6-4.5 |
1.Good quality and competitive price.
2,Any Inquires will be replied within 24 hours.
3,All of our products 100% inspection before shipment, we guarantee to use our products safety.
4,OEM/ODM orders are warmly preferred.
5,We own the best after-sale service.Any problems occur,our team will do our best to solve for customers.
6,Faster delivery, sample order in stock, and 3-7 days after bulk production.
