Performance description:

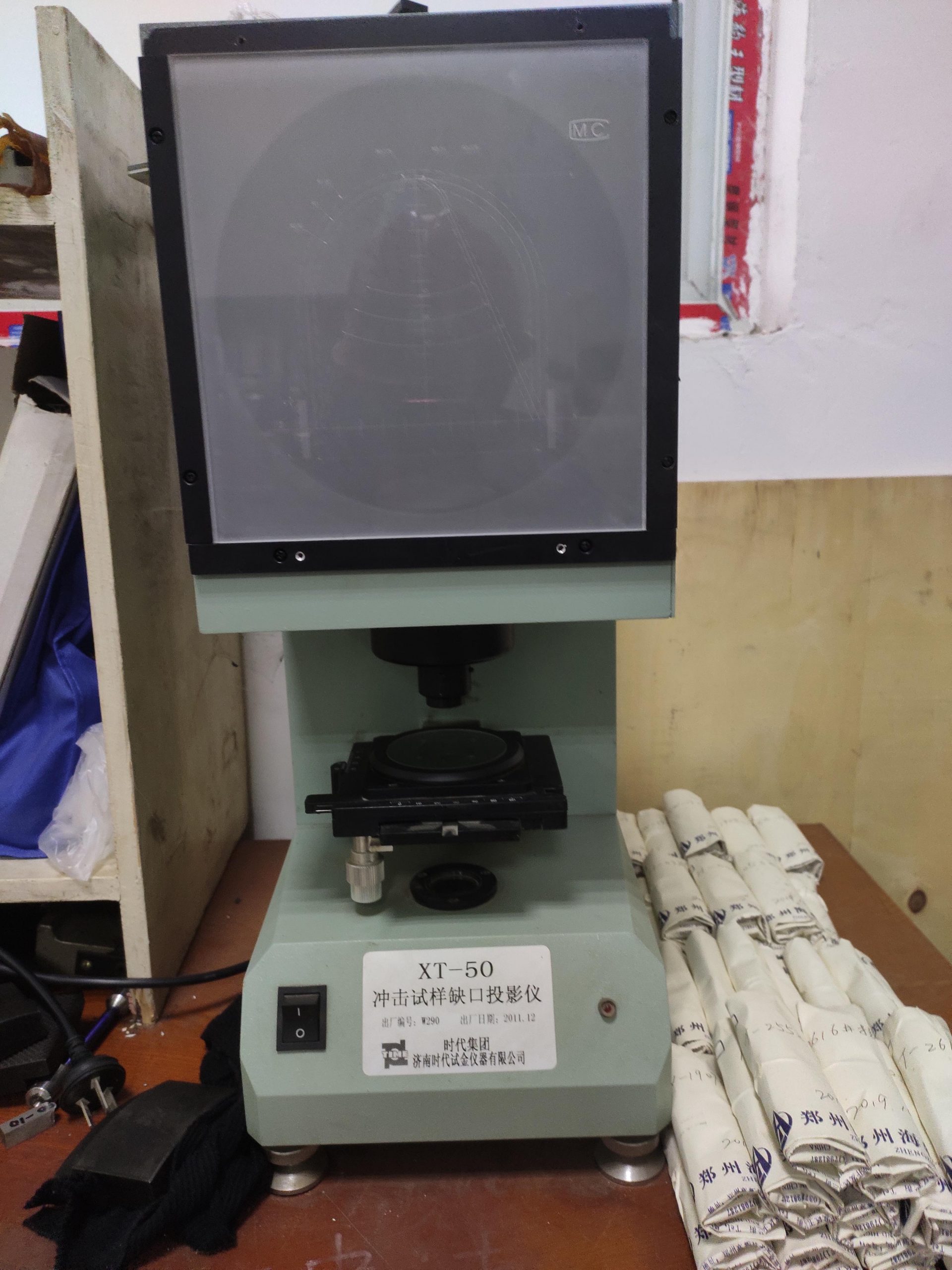

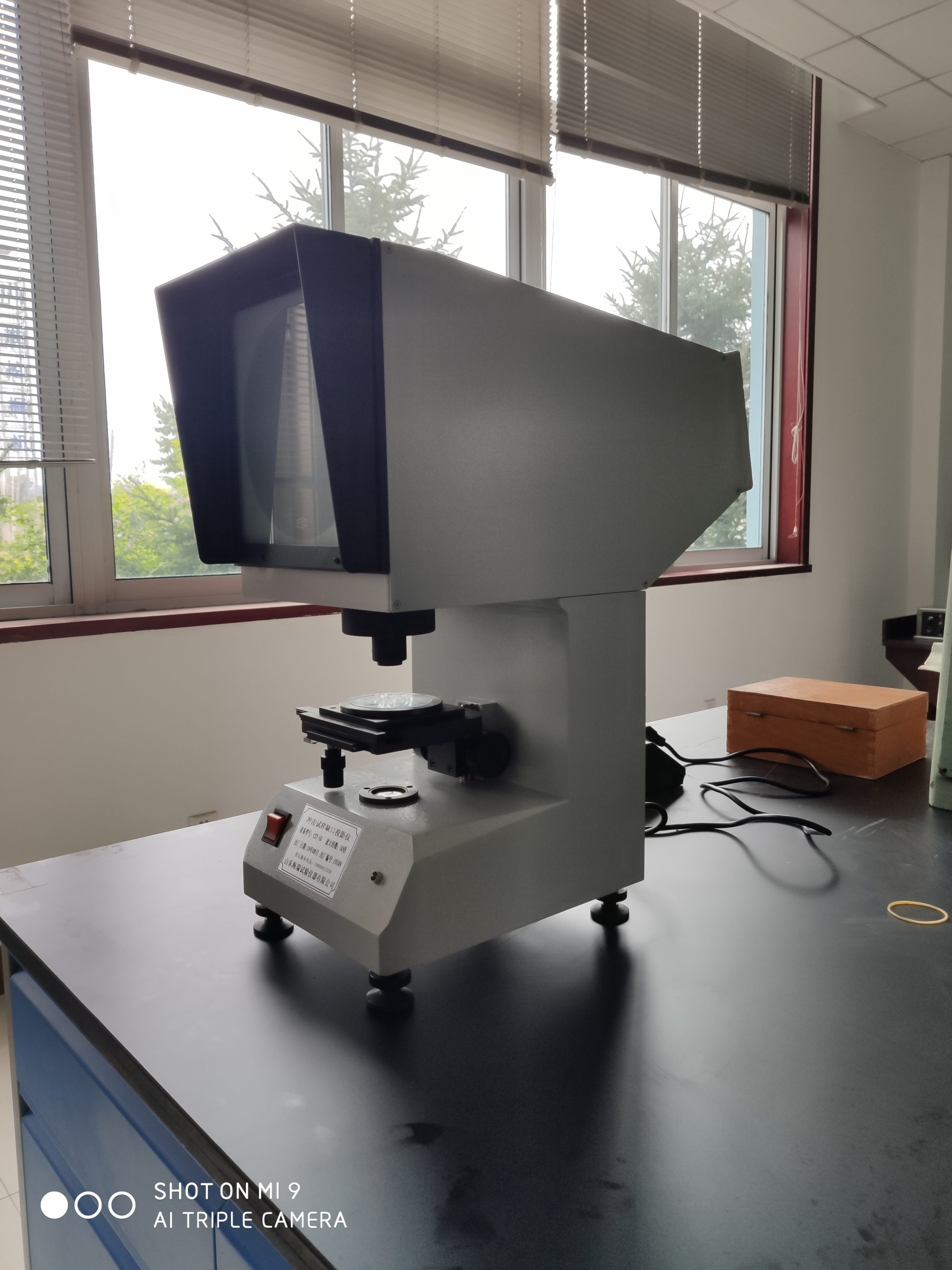

The impact specimen notch projector is designed and developed by us based on the actual needs of current domestic users and the requirements of the impact specimen gap in GB / T229-2007 “Metal Charpy Pendulum Impact Test Method”. Charpy V-shaped and U-shaped impact specimens are special optical instruments for notch processing quality. This instrument uses the optical projection method to enlarge and project the profile of the measured impact specimen V or U-shaped notches onto the projection screen, and impacts on the projection screen. The comparison between the standard template drawing of the sample V and the U-shaped notch to determine whether the notch processing of the tested impact sample is qualified. The advantages are simple operation, intuitive comparison and high efficiency.
Main Specifications:
1. Projection screen diameter: 180mm
2. Workbench size:
Square table size: 110 * 125mm
Square table diameter: 90mm
Table glass diameter: 70mm
3. Worktable stroke:
Vertical: ± 10mm
Horizontal: ± 10mm
Lifting: ± 12mm
4. Worktable rotation range: 0 ~ 360 °
5. Instrument magnification: 50X
Objective magnification: 2.5X
Projection objective magnification: 20x
6. Light source (halogen tungsten lamp): 12V 100W
7. Power supply: 220V 50Hz
8. Dimensions: 515 * 224 * 603mm
9. Weight: 20kg
Equipment main configuration:
1. Projector host: one
2. Base adjustment buttons: four
3. Power cord: one
4. Tungsten halogen lamps: two
5. Flat glass: one piece
