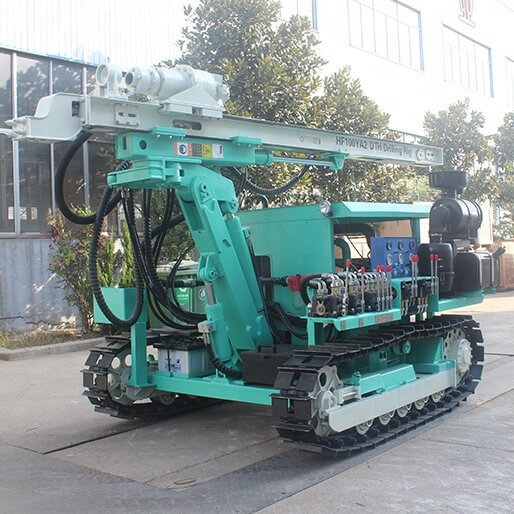

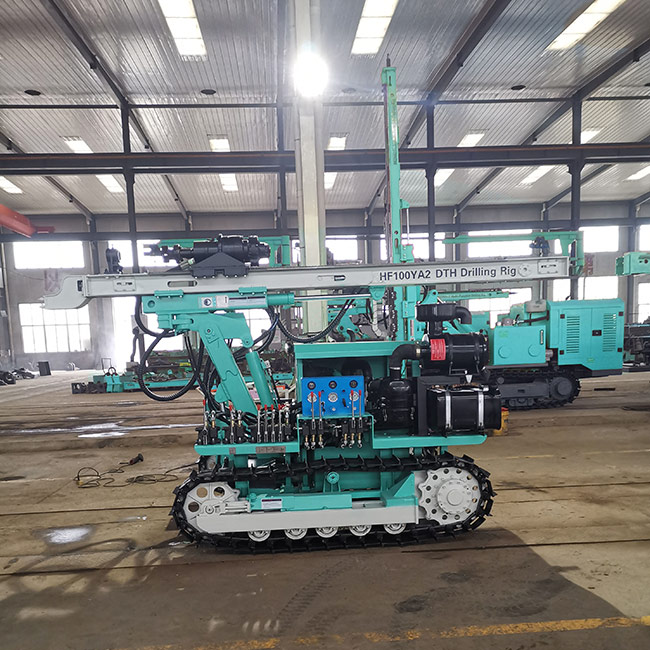

Professional 30m DTH drilling rig HF100YA2 mine drilling rig blasting down the hole dth drill rig

ر.س67,456.59

Clear
Qty:
Compare

Request quotation for: Professional 30m DTH drilling rig HF100YA2 mine drilling rig blasting down the hole dth drill rig

Product Description
1. HF100YA2 hydraulic drilling rig adopts new-style hydraulic technique which have low air consumption and large rotation torque.
2. The structure of this drilling rig is compact. During drilling the slide-skid support on the ground to ensure the drilling has
good stability.
3. HF100YA2’s rotary organizations adopts a new dual-motor turret to make the open-air blast drilling operations while drilling large holes to maintain a strong rotary torque output with air compressor.
4. HF100YA2 has the mobile and flexible climbing ability with perforation shift convenience features, suitable for rugged venue operations.
Application:
HF100YA2 crawler hydraulic drilling rig is mainly used in open ore mining, power station, and road building for exploring the stone.
Technical Date
Bore diameter(mm)
90—130
Bore depth(m)
30
Walk speed(km/h)
2
Once promotion(mm)
2000
Grade ability (°)
30
Air pressure(Mpa)
0.7—1.4
Chassis ground clearance(mm)
260
Air consumption(m³/min)
7—15
Skid pitch(°)
Up and down100
Host Power (Kw)
33
Sliding tilt swing (°)
left35,right10
For rock(F)
6—20
Skid compensation(mm)
900
Dimension(L*W*H)(mm)
4300*2130*2160
weight(Kg)
2900
Packing&Shipping
Working Site
Company Introduction
FAQ
1. Are you a trading company or a manufacturer?
We are a professional manufacturer. Our factory mainly produces water well drilling rigs, core drilling rigs, down-the-hole drilling rigs, pile drivers, etc. The products have been exported to hundreds of countries around the world and enjoy a high reputation all over the world.

2. How is the quality of your machine?
Our products pass strict quality inspections before they leave the factory to ensure that they are qualified before they are shipped.

3. How to inspect the goods?
1) Support customers to come to the factory for on-site inspection.
2) Support customers to designate third-party companies to inspect goods.
3) Support video inspection.

4. Do you have after-sales service?
Yes, we have a dedicated service team that will provide you with professional technical guidance. If you need, we can send our engineers to your workplace and provide training for your employees.

5. How about quality assurance?
We provide a one-year quality guarantee for the main machine of the machine.

6. How long is your delivery cycle?
1) In the case of stock, we can deliver the machine within 7 days.
2) Under standard production, we can deliver the machine within 15-20 days.
3) In the case of customization, we can deliver the machine within 20-25 days.

Model Number

HF100YA2

Power

33kw
