Prestressed Concrete Post Tension Stressing Prestressed Tendons Oil Pump

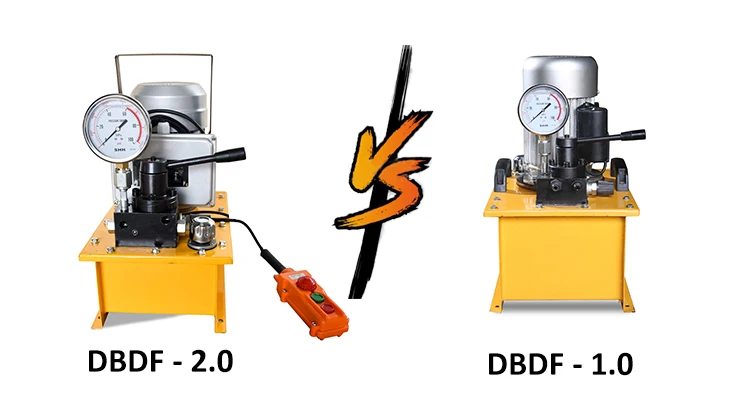

DBDF-2.0 is an independent and complete hydraulic power unit, compose of piston pump, control valve, oil tank, dynamo, and instrument.
Small volume, light weight, simple construction as well as convenient operation and high work pressure.
Suitable for lifting, bending, straightening, extruding, cutting, riveting, disassembling and press-fitting.
Working pressure can be maintained at 70 Mpa for a long time.
| Model | Min Pressure | Max Pressure | Low Pressure | Hight Pressure | Motor Power | Voltage | Tank Capacity |
|---|---|---|---|---|---|---|---|
| DBDF-2.0 | 2Mpa | 70Mpa | 0.3L/Min | 2L/Min | 1.5Kw | 380V/220V | 14L/ 10L/ 6L |

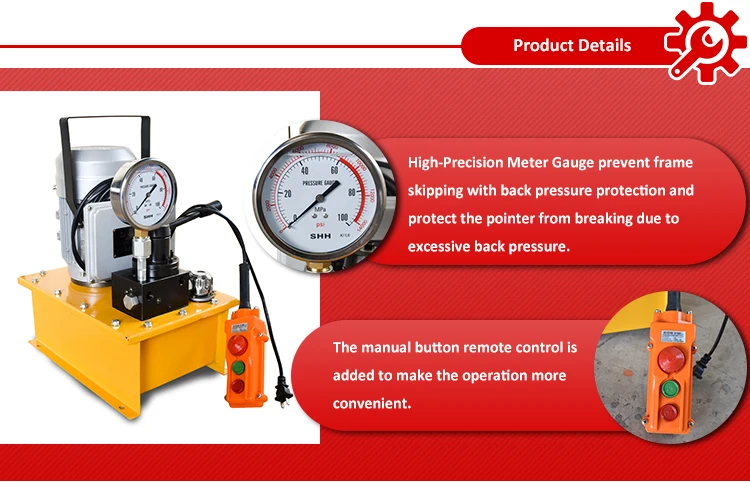

Product Details
