adjusted to detect all kinds of wire and cable bare copper, broken skin, pinhole and other insulation bad points.
manufacture, achieves the sink durable, never rusts the use effect.
This spark machine can pass the strict calibration inspection of the calibration laboratory approved by the country in accordance with ISO/IEC 17025.
This spark machine can be checked strictly through the calibration laboratory of CNAS (China National Accreditation Committee for conformity Assessment, CNAS is a member of APLAC and ILAC multilateral Mutual recognition Agreement). All the data of this spark machine can be derived from the national measurement benchmark and the international unit system (S)..
|
Model
|
Detection voltage
|
Detect outer diameter
|
Line ground center height(adjustable)
|
Electrode size
|
|
QP-15A
|
0～15KV
|
Φ1.0～20mm
|
850-1050mm
|
30*120mm
|
|
QP-25A
|
0～25KV
|
Φ2.0～50mm
|
850-1050mm
|
30*120mm
|
|
QP-15AC
|
0~15KV
|
Φ1.0～20mm
|
850-1050mm
|
30*120mm
|
QP- 15A

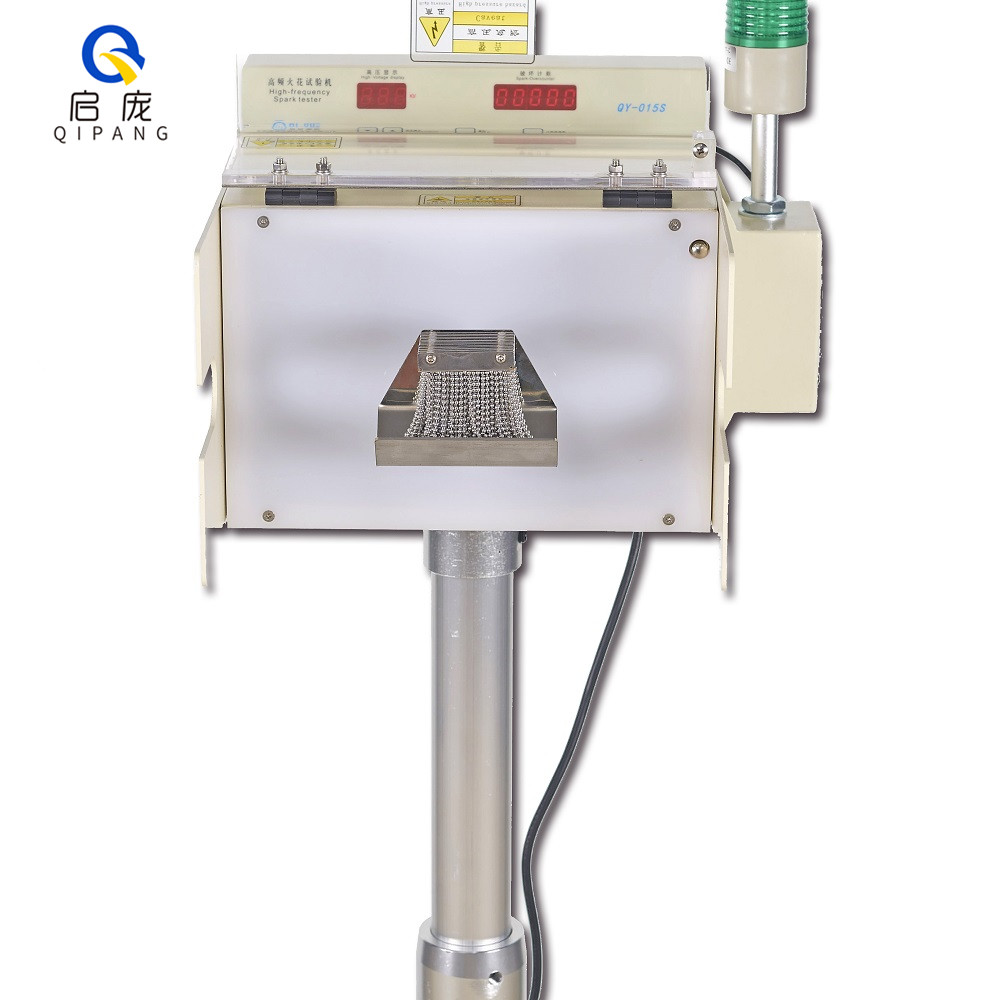

Model: GS-15S
Power supply: AC200-240V 50/60HZ
Ambient temperature: -5°C-50°C
Relative humidity: 20%-85%
Power consumption: ≤150W
Note: The spark machine should be grounded reliably
Technical index:
Output voltage: 0-15KV (effective value sine wave)
Voltage display: 3-digit digital tube display 0.0-15.0KV, voltage adjustment step length 100V
Defect times display: 5-digit digital tube display
Test wire diameter: MAX25mm
Test frequency: 2500-3500HZ, varies with the equivalent load capacitance
Electrode form: bead chain type, in line with UL1581 standard
Electrode length: 50mm
Test mode: manual automatic
Automatic leak detection recovery time: less than 20ms
Sensitivity: set to 3KV, use breakdown equipment to breakdown 20 times, no more than no more notes, breakdown current is not more than 600µA
Output current: 4mA resistive, 40mA capacitive
Allowable maximum linear speed: 3067m/min, in line with BS5099 and CCC standards
1000m/min, in line with UL1581 and CSA standards
Output contact: 250V 2A
Serial communication: RS-232 RS-422 optional
Maximum communication distance: 300m
Electrode cover safety interlock switch protection device
|
The breakdown sensitivity
|
Maximum moving speed of the examined line
|
Power supply voltage
|
Power supply frequency
|
Input power
|
|
1 ≤ 600 × 50 U. T ≤ 0.005s
|
1000 / m / min
|
AC220V+15%
|
50+2Hz
|
50VA
|
|
Ambient temperature
|
Relative humidity
|
Detect outer diameter
|
Dimension
|
Weight(KG)
|
|
-10 ≤ 45C
|
less than 85
|
Φ5/Φ10/Φ15/Φ20/Φ25
|
315*305*245(without bracket/package)
|
20
|
Package:
Weight and size
We are a factory . We can promise you a short lead time and best price if you purchase our machine. We also have our own trading department.
Q2: How does the factory ensure products quality?
With Nearly 16 years experience in manufacturing winding machine, we have our own technology develop department and testing department.
Quality is the first priority. We have strict purchasing system to ensure the quality of spare parts. We have experienced workers to assemble and test machine.
Q3:How about your after-sale service?
We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone,webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.
Q4: What are your payment terms?
100%TT or prepaid 50% , balance 50% before shipping.
Q5: How can I get my order? How can I know you sent the goods?
We will send the goods by UPS, DHL, FedEx or sea shipment. After we sent the goods, we will give you the tracking number or other relative files for checking.
Q6 : Will you send the installed machine or machine parts?
We will install the machine and test the machine before delivery. And the machine can be used directly after receiving the machine.
Q7: Will you provide operation guidance for us?
We will send the instruction book with the machine and send you a video about how to operate the machine.
Q8 : How long is the warranty period?
12 months warranty, we will send you free spare parts by air within one week if there are any quality problems.
