Name: Poultry Manure Drying Machine Wood Saw Dust Drying Machine for Pellet Production Agricultural Product Dryer Machine
SKU: 211701071019181
Availability: InStock

Poultry Manure Drying Machine Wood Saw Dust Drying Machine for Pellet Production Agricultural Product Dryer Machine

ر.س25,341.27

Horizontal Electric Heating Water Removal Stir-fry Machine Large Multi-functional Tumble Dryer Organic Fertilizer Dryer

Introduction:

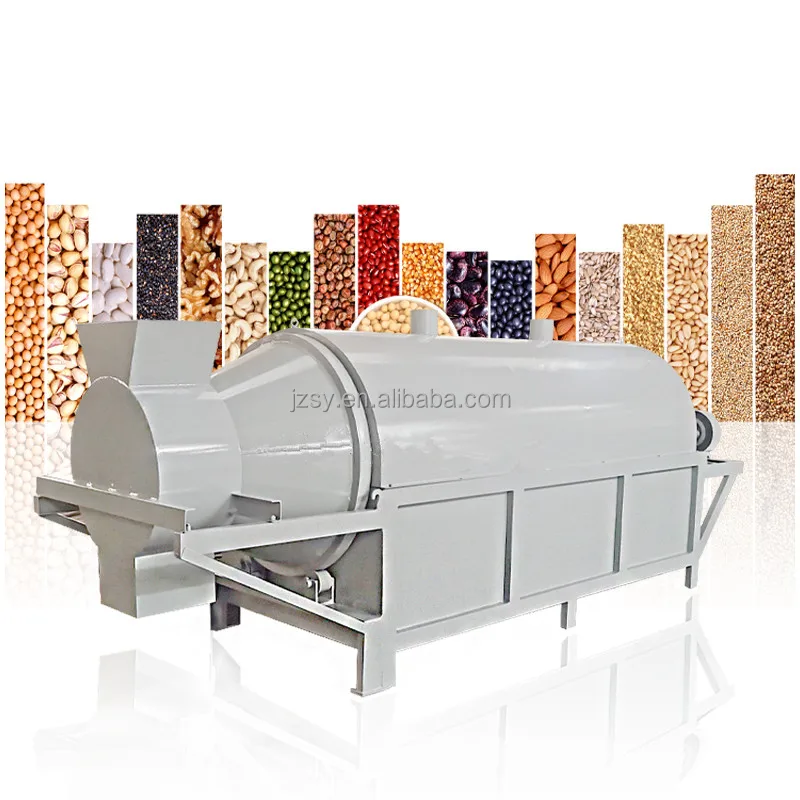

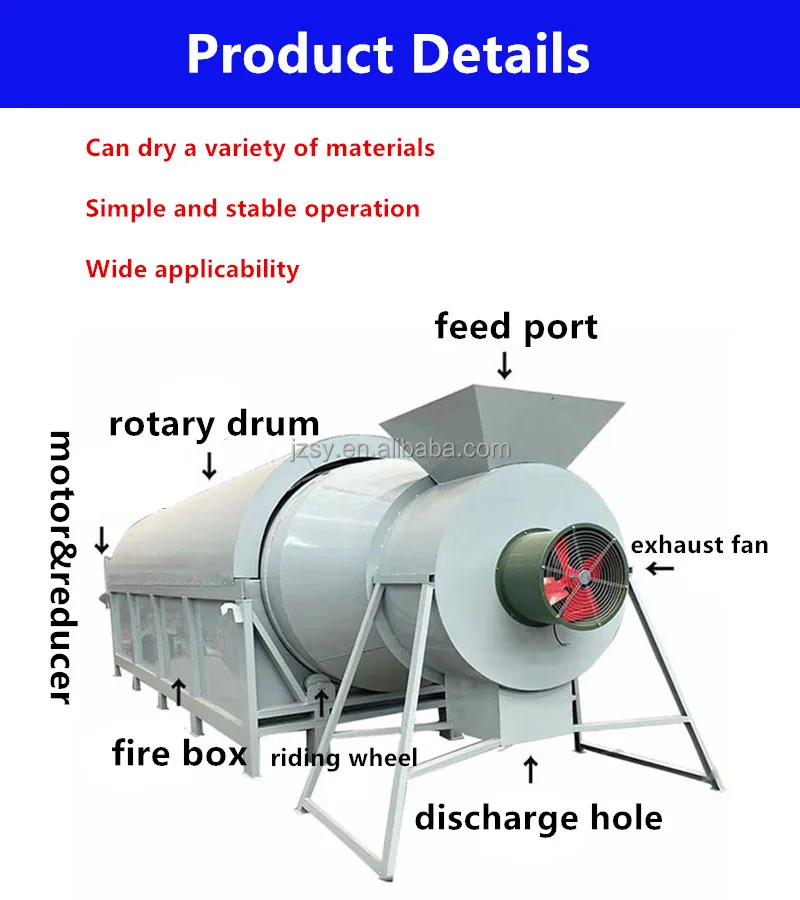

Small Rotary dryer including box and drum two parts, the main body adopts the reverse flow tower type internal circulation structure, the overall modular structure,which make it easy to disassemble and transport, small occupation, good drying quality, low labor operation intensity, low equipment cost.Integrated butt joint design of heating system and drum, compact structure, low energy consumption, high thermal efficiency.Small dryer conform to international continuous improvement of material drying quality, reduce energy consumption, reduce losses, conform to the green, quality, fresh drying concept.

Heating source: electricity / gas / coal

Technical Parameter: ( electric heating type as reference)

Model	overall size	rotary drum size	Power	heating power	Dehumidification fan	chain	reducer	weight
200	311.45m	0.8*1.8m	1.5	30KW	370W	12pcs	No	400kg
300	3.811.45m	0.8*2.6m	2.2	30-40KW	370W	18pcs	ZQ200	600kg
500	4.21.21.6m	1*2.8m	3	40-50KW	370W	24pcs	ZQ250	1000kg
1000	4.81.51.7	1.2*3.4m	4	60-80KW	550W	32pcs	ZQ250	1400kg
2000	6.21.82.1	1.5*4.4m	7.5	80-100KW	750W	50pcs	ZQ350	2000kg
3000	7.81.82.1m	1.5*6m	11	120-150KW	1100W	75pcs	ZQ350	2500kg
5000	9.32.32.5m	1.8*6.6m	15	180-200KW	1500W	120pcs	ZQ500	4000kg
