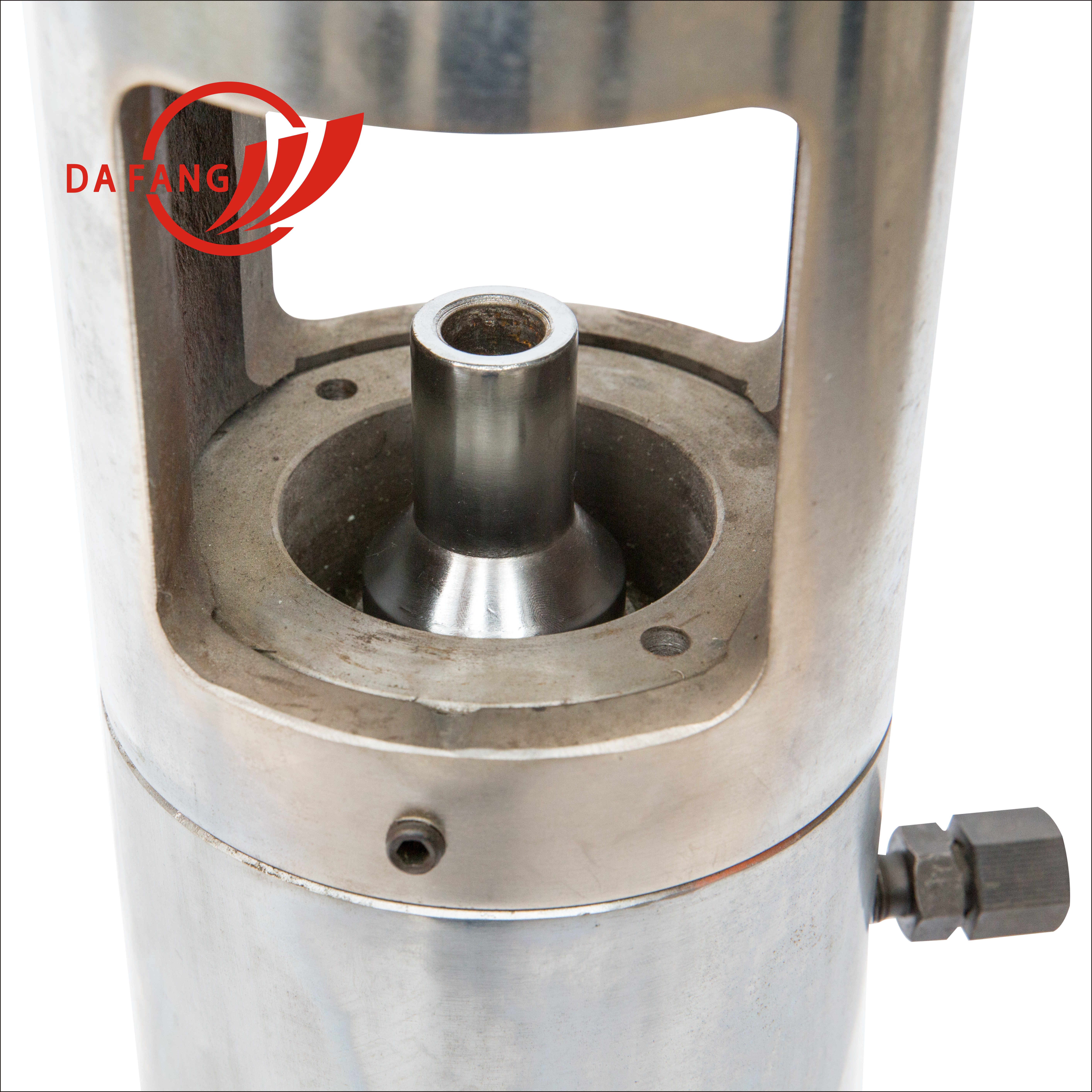

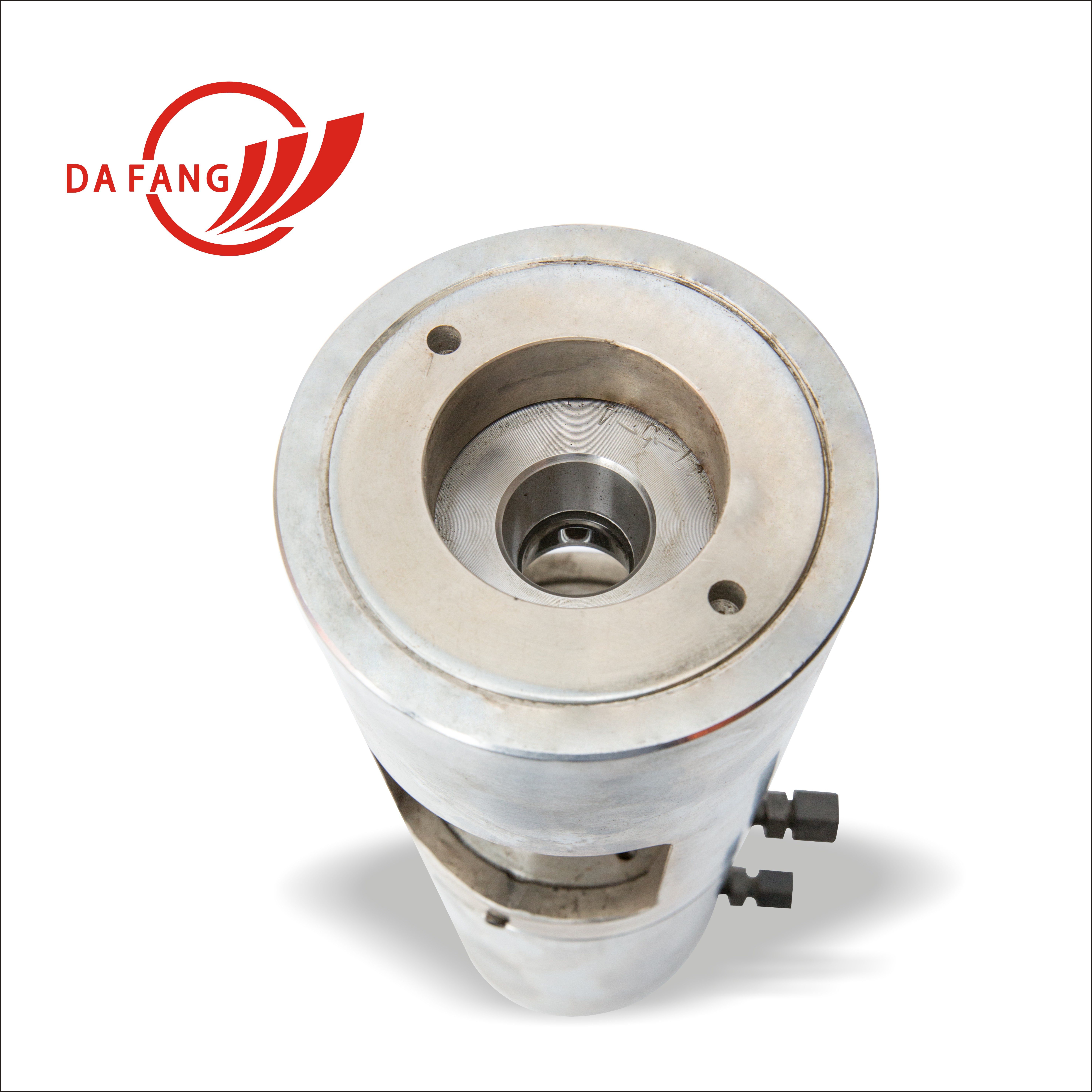

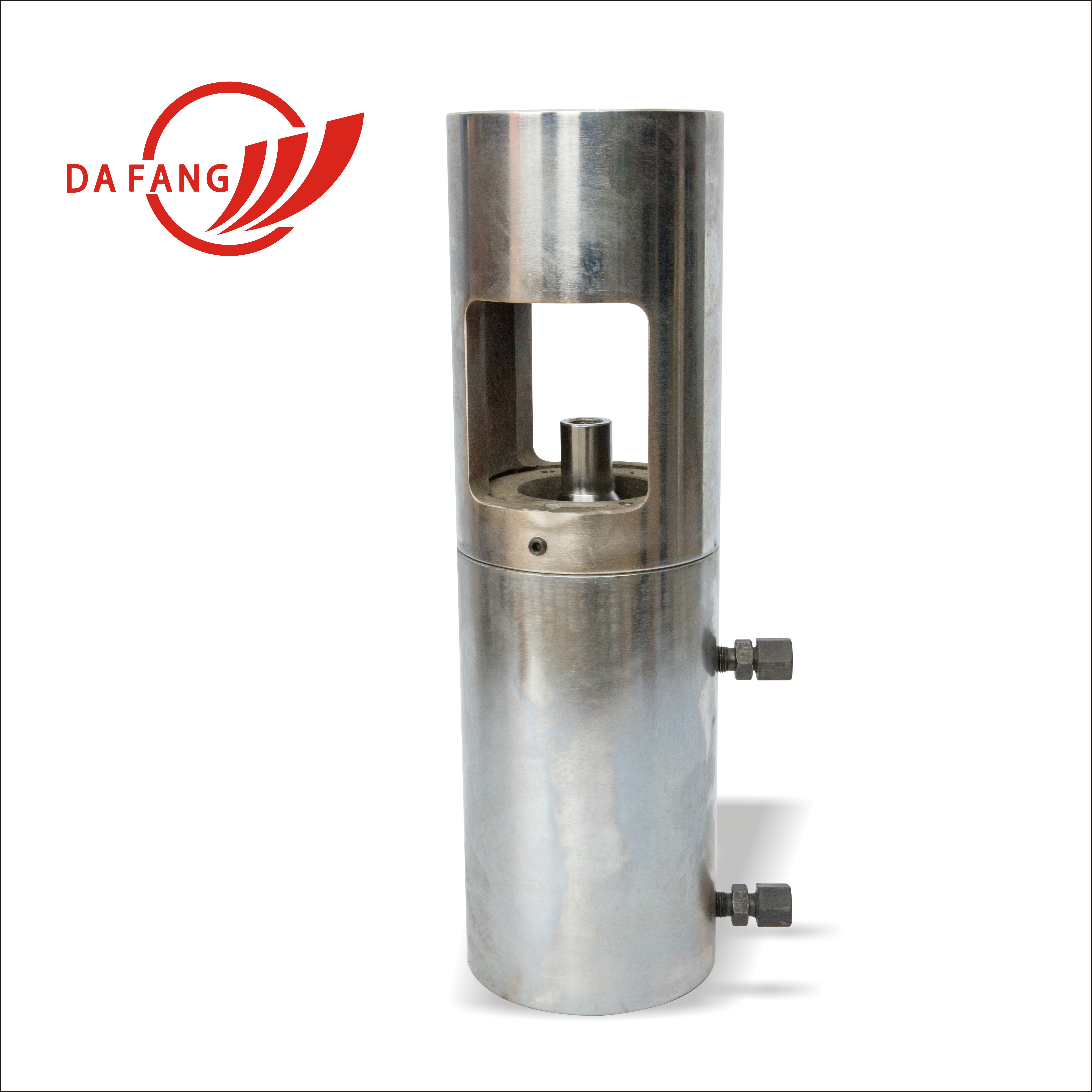

Post tension machine PC Strand Extruding Dead End Wrapping Concrete anchor extruder
Product Description
Description

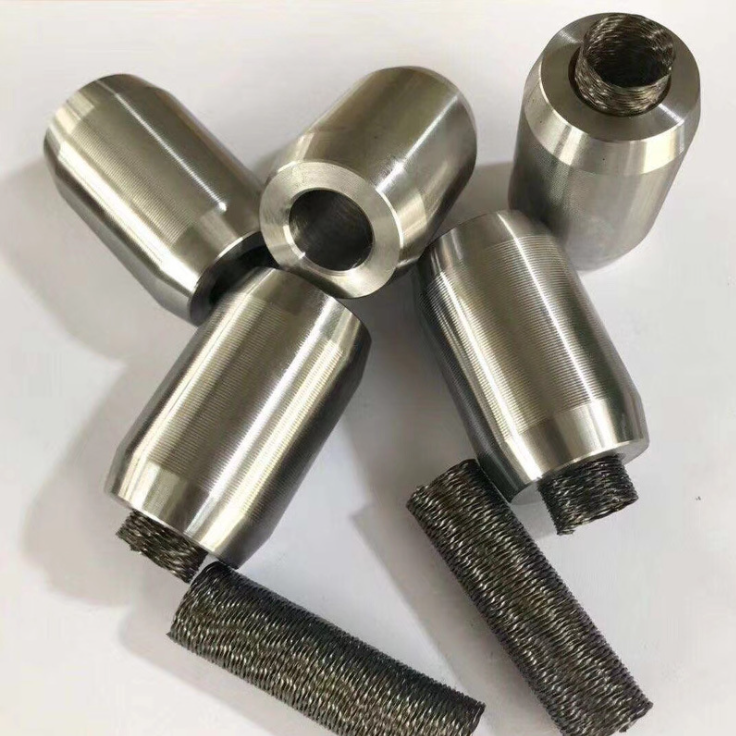

The squeeze anchor is composed of an squeeze anchor ring and a matching squeeze spring inserted in the cavity.
Since each coil of the extrusion spring has the same triangular cross section, the apex of the triangle cross section of each coil of the extrusion spring composes the spiral teeth on the inner wall of the extrusion spring. After extrusion, the fragments of the extrusion spring can be more firmly engraved into the steel. In the stranded wire, the improvement of the anchoring efficiency coefficient is ensured. Experiments show that: the anchoring efficiency coefficient of the utility model reaches more than 98% on average.
| Name: |
Anchor Extruder Machine |
|---|---|
| PC Strand Diameter: | φ12.7mm/φ15.2mm |
| Rated extrusion force | 500KN |
| Rated oil pressure: | 50Mpa |
| Extrusion cylinder area: | 10381mm² |
| Return oil pressure: | <10Mpa |
| Dimensions: | 180x520mm |
| Usage: | For the fixed end in the tensioning process |
