Portable capacitive soil moisture sensor wireless digital soil ec meter
Product Description

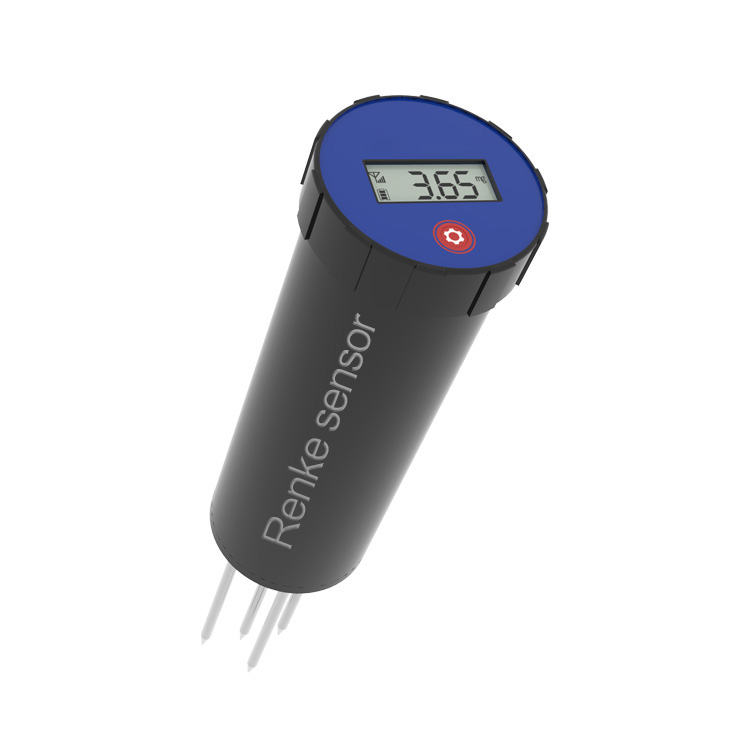

The RS-*-SC-1 soil tester is a sensor developed by our company to quickly detect the composition of the soil. The shape of the sensor is hand-held and easy to carry. The probe uses a four-pin probe design and is made of stainless steel. .
Size Information
|
Power supply
|
DC 3.7V lithium battery
|
||
|
Battery life
|
More than 3 years
|
||
|
Temperature
|
Range
|
-40~80℃
|
|
|
Resolution
|
0.1℃
|
||
|
Accuracy
|
±0.5℃
|
||
|
Humidity
|
Range
|
0-100%
|
|
|
Resolution
|
0.1%
|
||
|
Accuracy
|
0-50% is 2%，50-100% is 3%
|
||
|
Conductivity
|
Range
|
0-10000 us/cm
|
|
|
Resolution
|
1us/cm
|
||
|
Accuracy
|
±3%
|
||
|
NPK
|
Range
|
1-1999 mg/kg(mg/L)
|
|
|
Resolution
|
1mg/kg（mg/L）
|
||
|
Accuracy
|
±2%FS
|
||
|
Reaction time
|
＜1S
|
||
|
Operating temperature
|
-20℃ ~ 60℃
|
||
|
Protection level
|
IP68
|
||

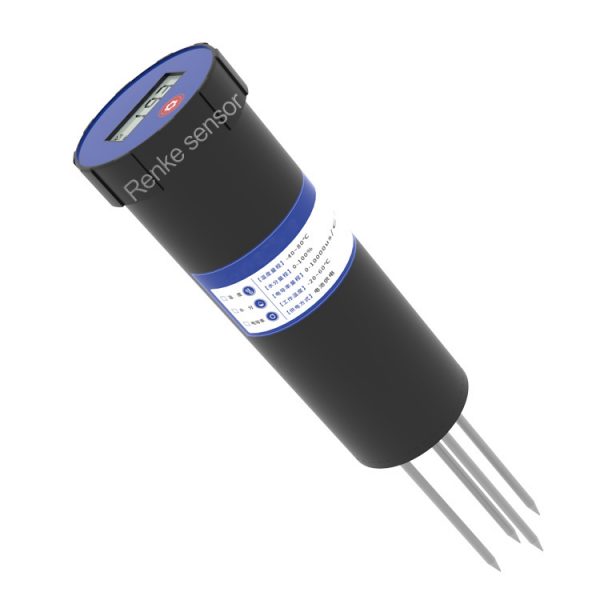

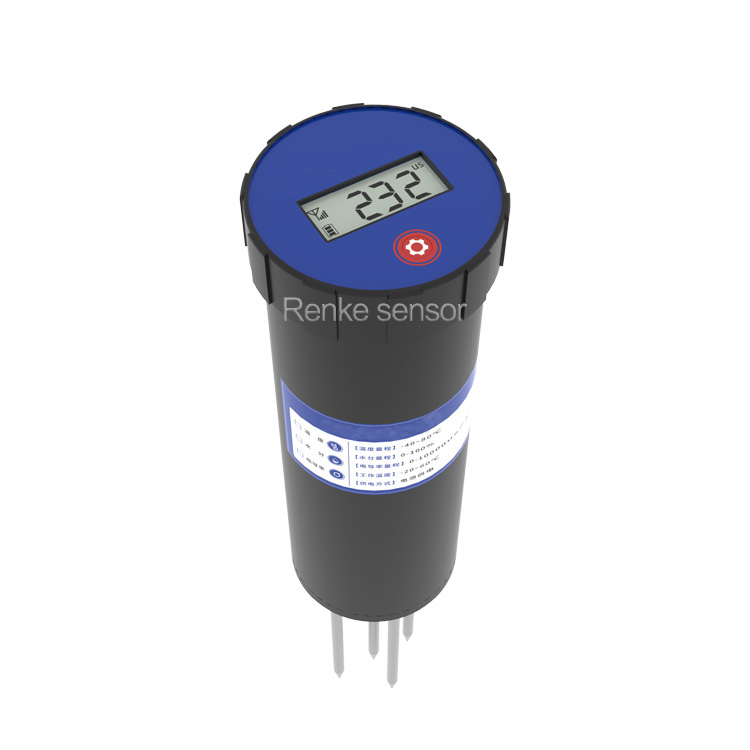

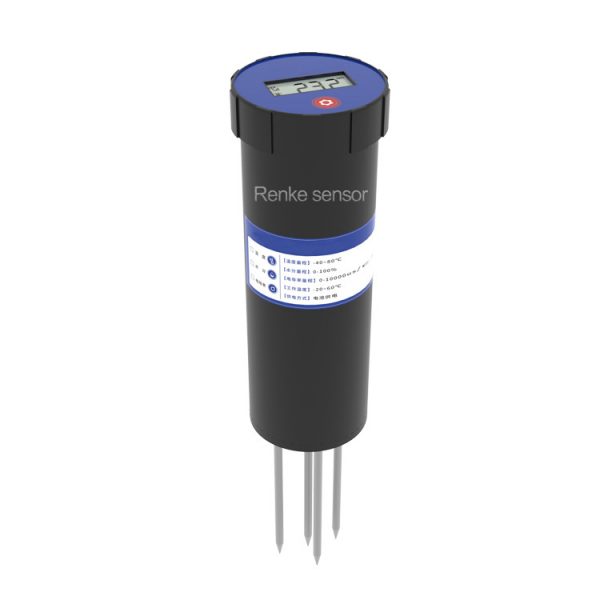

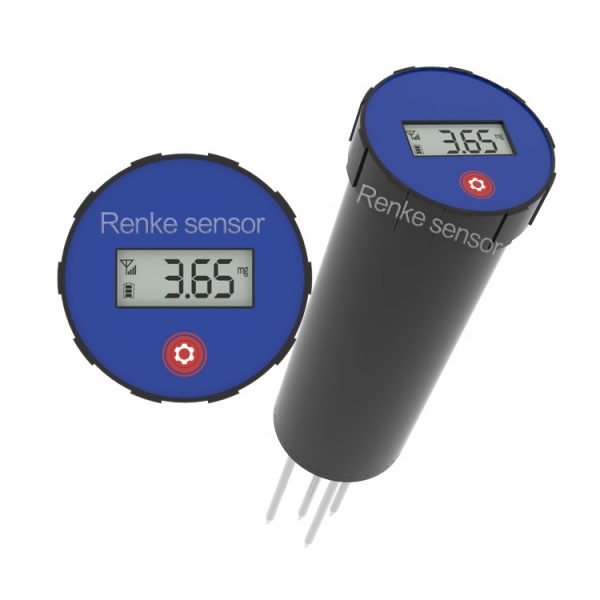

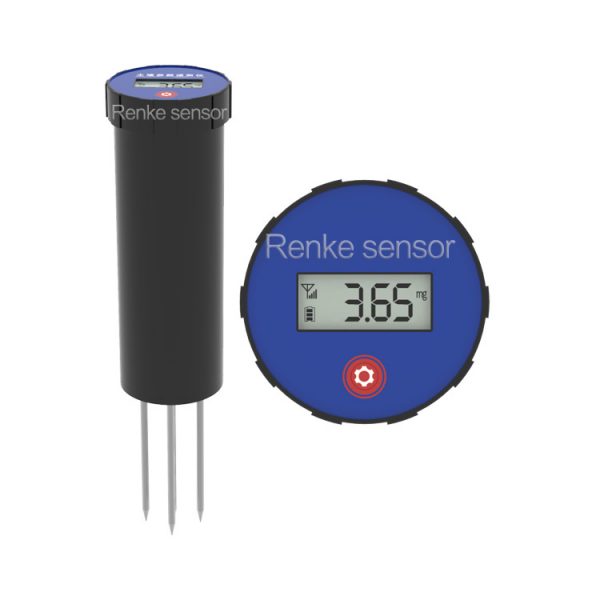

Detailed Images
FEATURES:
1) Hand-held design, small size, light weight, convenient for users to carry.
2) Real-time monitoring of soil composition, which can detect various organic components in the soil.
3) The threshold is low, the steps are few, the measurement is fast, no reagents are required, and the number of detections is unlimited.
4) Adopt battery power supply, LCD digital display, the interface parameter function display is clear.
5) Probe insertion design ensures accurate measurement and reliable performance.
Installation Instructions
Precautions：soil tester soil tester soil tester
1. The probe should ensure full contact with the soil and compact it to ensure data accuracy.
2. The soil speed tester only tests soil and soil, and is not suitable for dry flour, small stones, organic wood chips, liquid particles, etc.
3. In order to improve the accuracy of the test results, please use the method of multi-point test to average.
4. When using, pay attention to the test point not to touch the stone, and do not use excessive force, otherwise it will easily damage the electrode. It should not be inserted in the soil for a long time, it is easy to oxidize.
5. After the measurement, clean the soil particles on the surface of the probe with gauze in time to keep the probe dry.
1. The probe should ensure full contact with the soil and compact it to ensure data accuracy.
2. The soil speed tester only tests soil and soil, and is not suitable for dry flour, small stones, organic wood chips, liquid particles, etc.
3. In order to improve the accuracy of the test results, please use the method of multi-point test to average.
4. When using, pay attention to the test point not to touch the stone, and do not use excessive force, otherwise it will easily damage the electrode. It should not be inserted in the soil for a long time, it is easy to oxidize.
5. After the measurement, clean the soil particles on the surface of the probe with gauze in time to keep the probe dry.
Application
It is widely used in fields such as farmland production, soil research, greenhouse planting, orchard nursery, horticultural planting, tree planting, pot planting, etc.
