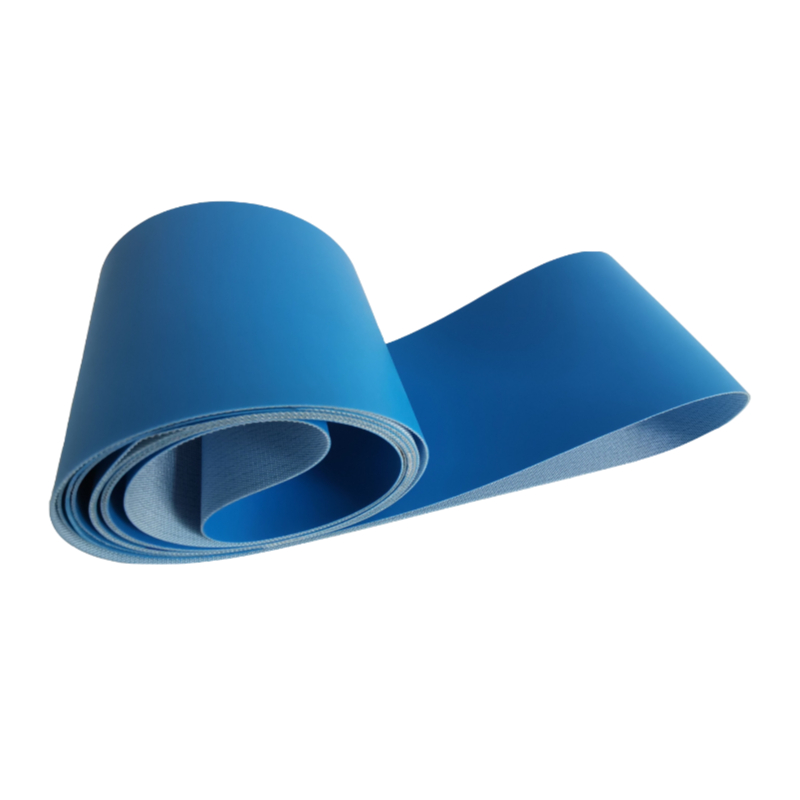

The material of conveyor belt is Polyvinylchloride (Polyvinylchloride, PVC), which is composed of polyester fiber cloth and PVC glue. Its working temperature is generally from -10° to +80°, and its joint mode is generally international toothed joint, with good lateral stability and suitable for transmission in various complex environments.
Parameter
| Colour: | green | Figure: | plane |
| Total thickness (mm) : | 2.0 | Construction: | two cloth two glue |
| Surface coating hardness (Shore A) : | 75 | Minimum drum diameter (mm) : | 50 |
| Force on 1% extension (N/mm) : | 12 | Lateral stability: | yes |
| Production width (mm) : | 3000 | Tensile strength (N/mm) : | ≥160 |
| Number of plies: | 4 | Low noise: | no |
| Total weight (Kg/M2) : | 2.3 | Working temperature (℃) : | -10—+80 |
Details
Clear side structure
Machine vulcanization hot welding
High-quality PVC raw material
Related products
Certificate
Customer Feedback
Company Introduction
Wuxi Jingtian Transmission Technology Co., Ltd. is a conveyor belt processing enterprise, which has 15 years of experience in processing conveyor belt industry. It has its own modern workshop, covering an area of about 3300 square meters, with advanced production machines. It has an excellent sales and research team, and several technicians with rich production experience, developed a variety of multifunctional conveyor belt services in several countries around the world.
