polyethylene sheet butt fusion welding machine for Plastic Capacities, Septic tanks
pp pe plastic sheet butt fusion welding machine for Plastic Chemical Tanks Storage
pp pe plastic sheet butt fusion welding machine for reservoirs,tanks,containerss,
Product Overview
Item:Sheet Rolling Butt Fusion Welding Machine
| Size | SWT-PH3000 |
| The rated voltage | 380V,50/60Hz |
| Weldable sheet thickness | 3.0-30.0mm |
| Max.working length | 3000mm |
| Roll circle diameter minimum | 400mm |
| Air pressure(kg.f /cm2) | 4.0-8.0 |
| Energy source(m3/min) | 0.0052 |
| Rated current | 13.6A |
| Heating Power | 6kW |
| Power of Rolling Motor | 1.5kW |
Product Detailed
SWT series Butt Fusion Welding Machine are suitable for welding thermoplastic sheets made of HDPE, PP, PVC, PVDF.
SWT-PH series Sheet Butt Fusion Welding Machine
SWT-ZW series Bending Welding Machine
SWT-PZ series All in one bending butt fusion welding machine
SWT-YF series Engraving machine
SWT-XL series Cutting Saw
Welding Function:
Horizontal weld & round (rolling) weld. Rolling the circular minimum size is 500mm, the bigger circular unlimited.
4.Wide applicability:
Our model is suitable for all types of thermo plastic sheet (PP, PE, HDPE, PVDF, PVC, PPN),
with material thickness ranges from 3 mm to 30 mm. Welding thickness can up to 50 or 60mm according to customers’ request.
Warranty:
Machine Quality Guarantee : 24 months.
If any parts broken or does not work under normal operating, we are free to provide.

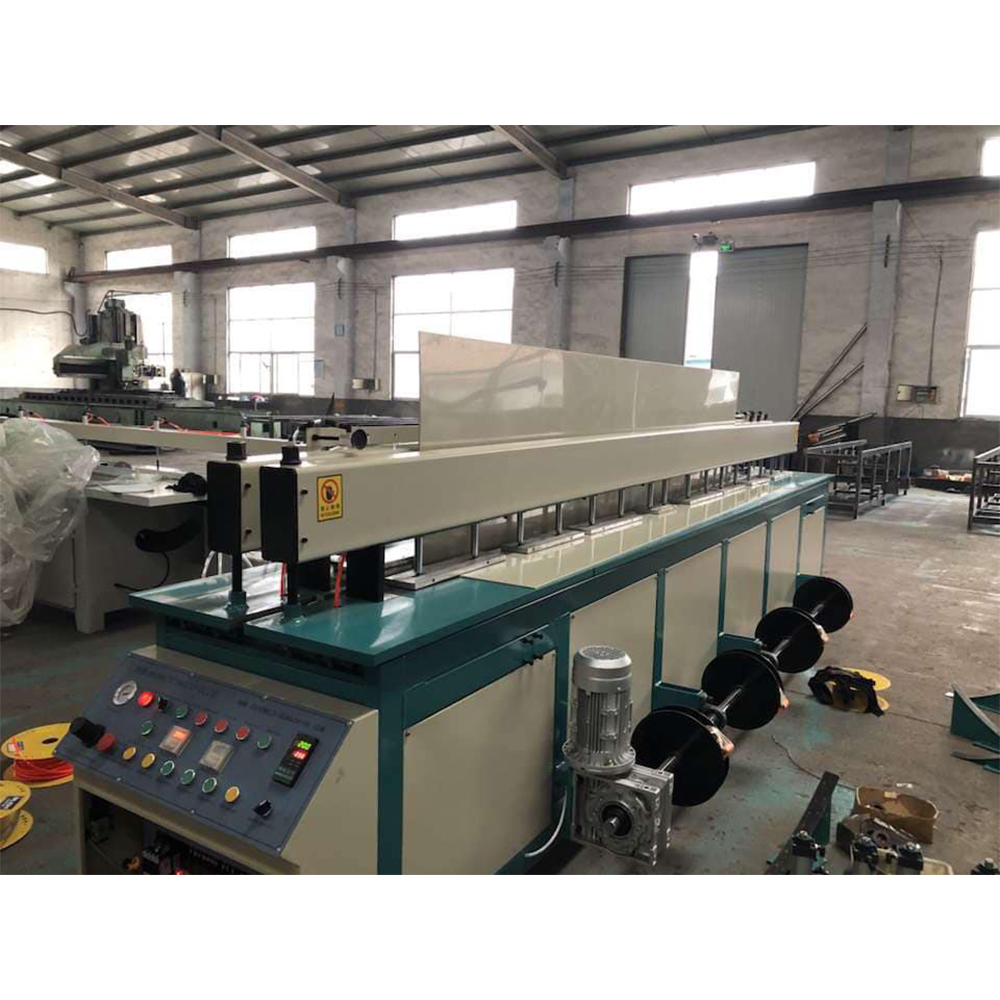

Images of Sheet rolling butt fusion welding machine with manual button
APPLICATION:
Manufacture of reservoirs, tanks and containers, manufacture of plastic apparatus, pipeline construction, ventilation systems, serial welding, water treatment systems, scrubbers, environmental technology, swimming pools, transport and logistics.
