Hebei Mingmai Technology Co.,LTD(MM-Tech) is one of comprehensive manufacturer of automatic geomembrane hdpe liner welding machine and an experienced professional exporters in China.MM-Tech products included Butt Fusion Welding Machine,Wrkshop Fittings Welding Machine,Electro Fusion Welding Machine,Socket Fusion Welding Machine,Band Saw,Geomembrane Welder, Extrusion Welder,Hot Air Welder&Welding Accessories.
1.APPLICATION AND FEATURES of plastic welding machine geomembrane welders with SWT-NS800 .
automatic geomembrane hdpe liner welding machine adopts advanced hot wedge strcuture.With its high power,high speed and pressure,it welds 0.2mm-1.5mm thickness hot melting materials such as HDPE,PP and thermoplastic.Geomembrane Hot Wedge Welder for HDPE is specially desgined for water conservancy,aquaculture,landfills,chemical mining,sewage treatment,roof constructions and other waterproofing projects.
plastic welding machine geomembrane welders with SWT-NS800 is an Automatic Combi-Wedge Welding Machine for overlap welding and manufacturing of films and geomembrane liners in tunnels as well as earthwork and civil engineering. The heat is transmitted by using the best combination of contact and hot air. Especially well-suited for overhead welding in install geomebrane, civil engineering, tunnel engineer
plastic welding machine geomembrane welders with SWT-NS800 adjustable temperature and drive.

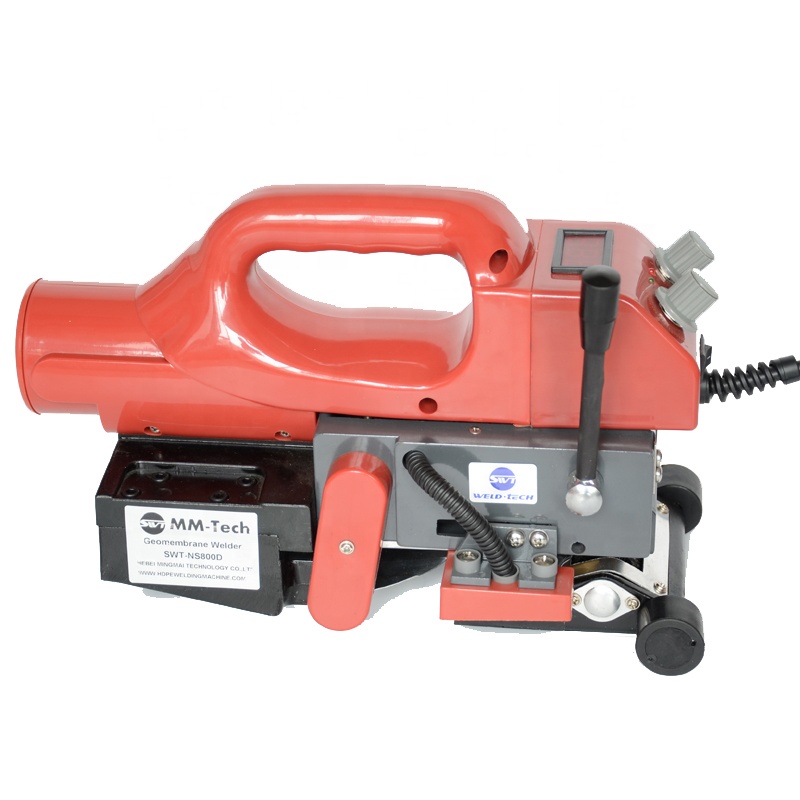

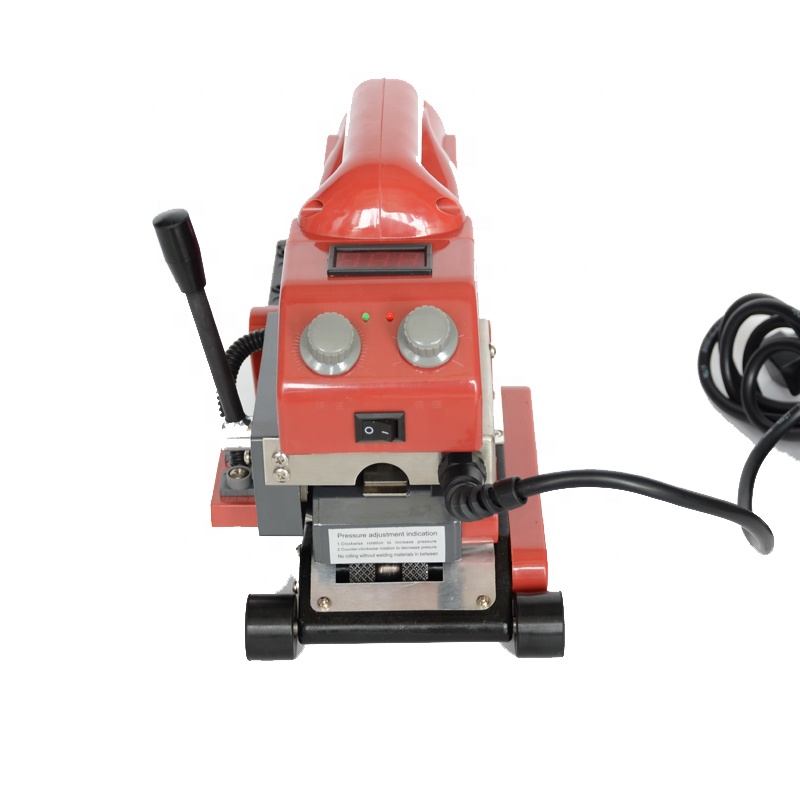

2.Detail of plastic welding machine geomembrane welders with SWT-NS800
3.TECHICAL PARAMETERS of plastic welding machine geomembrane welders with SWT-NS800
|
Technical Parameters For plastic welding machine geomembrane welders with SWT-NS800
|
|||
|
Voltage:
|
220V/110V
|
||
|
Frequency:
|
50/60Hz
|
||
|
Power:
|
800W
|
||
|
Welding speed:
|
0.5-5m/min
|
||
|
Heating temperature:
|
0-450°C
|
||
|
Thickness of material:
|
0.2mm-1.5mm
|
||
|
Overlap width:
|
12cm
|
||
|
Welding width:
|
15mm×2, interior cavity 15mm
|
||
|
Seam strength:
|
≥85% base material (tensile resistant in shear direction)
|
||
|
N.W/G.W:
|
5.5/9kgs
|
||
|
Insulation class:
|
class II
|
||
The packaging: standard export plywood cases of plastic welding machine geomembrane welders with SWT-NS800
Our machine will be wraped by plastic film, put into a wooden box at last. This type of packages is avoid getting rusty easily.
HDPE plastic geomembrane welder sheet welding equipment International Warranty:24 months
Any parts borken or does not work under normal operating,we are free to provide.
1. two year warranty, life-long maintenance.
2. In warranty time, if non-artificial reason damaged can take old.
change new for free.Out of warranty time, we can Offer maintenance service (charge for material cost).
3. Engineers available to service machinery overseas.
Q: What is your MOQ?
A: As customer’s request.
Q: Why choose us?
A: We are a professional and leader of pipe fitting factory, we have competitive price and faster delivery, and we ensure that our
quality is the second to none.
Q: How to buy the product?
A: Contact us by email or by Trade Manager, and inform us about what you are interested in. We will reply you as soon as we can.
Q: Can you put our design and logo on products?
A: Yes, we have professional design service team, we can make any sample as your design, and also can put your logo on products.
Q: What’s the payment term?
A: We can accept for PAPAL, T/T. Any other payment as your request.
Q: Still have a lot of questions?
A: Please feel free to contact me ,welcome.
If you interesting,please don’t hesitate contact me.
My Mobile/whatsapp:+86 15254186596
Wechat:
