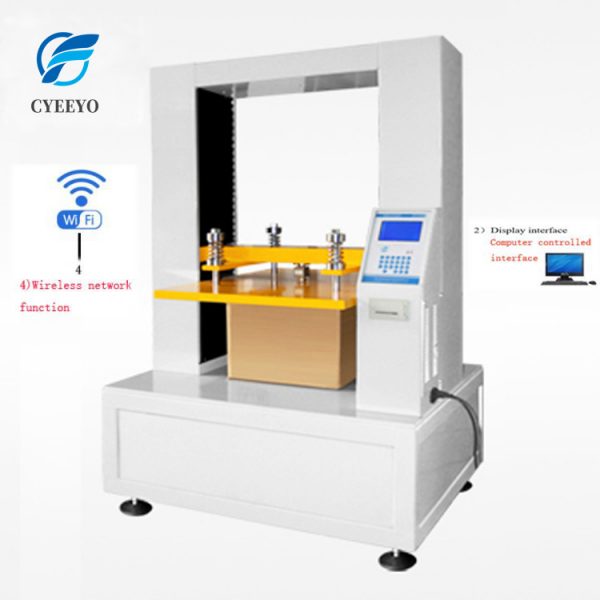

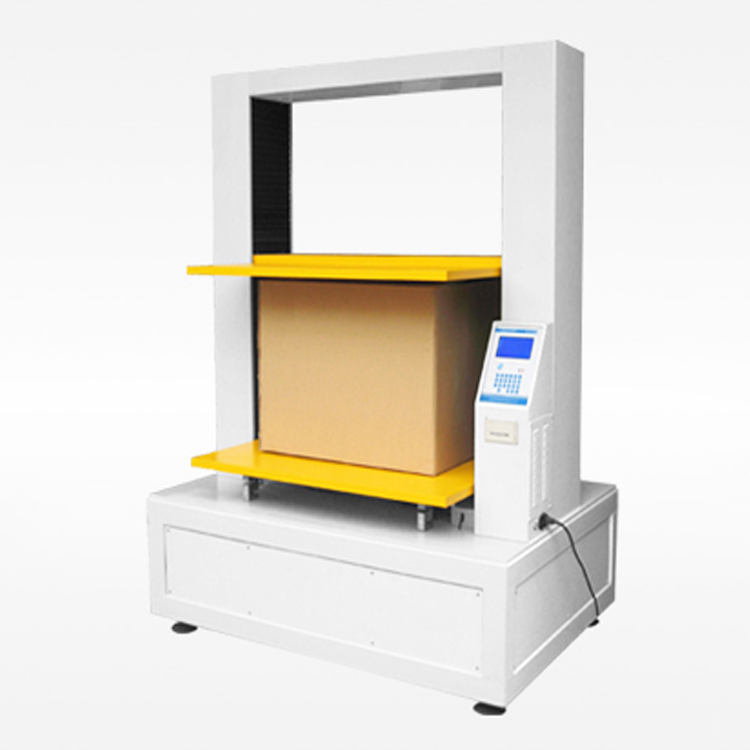

plastic drum honeycomb paperboard box compression strength test machine
Box Compression Tester is professionally used to test the compression resistance property of carton box, corrugated box, honeycomb cardboard box and other packaging. And it’s also applicable to container compression test of plastic bucket (edible oil, mineral water), fiber drum, carton, paper, cans; container barrels (IBC barrels).
standards
GB/T 4857.4 ,GB/T 4857.3 ,ISO 2872 ,ISO 2874 ,QB/T 1048
parameters
|
Items |
Parameters |
|
Test Range |
10KN, 20 KN, 50 KN(Optional) |
|
Accuracy |
1% of Reading Value |
|
Force Resolution |
1 N |
|
Deformation Resolution |
0.1 mm |
|
Pressing Plate |
Parallelism between upper and lower pressing plate: ≤1mm |
|
Test Speed |
5 mm/min,10 mm/min |
|
Return speed |
(1—60)mm/min |
|
Stroke |
600mm,800mm,1000mm,1200mm,1500mm(optional) |
|
Specimen Dimension |
600x600x600mm 800x800x1000mm 1000x1000x1000mm 1000x1000x1200mm 1200x1200x1200mm 1200x1200x1500mm (Optional) |
|
Power Supply |
AC 220V 50 Hz |
