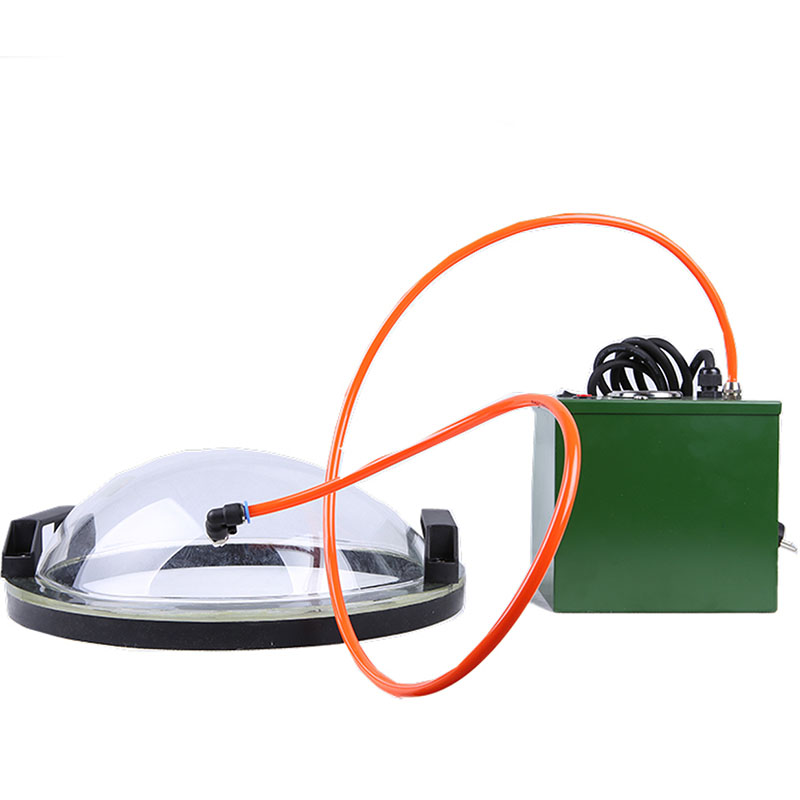

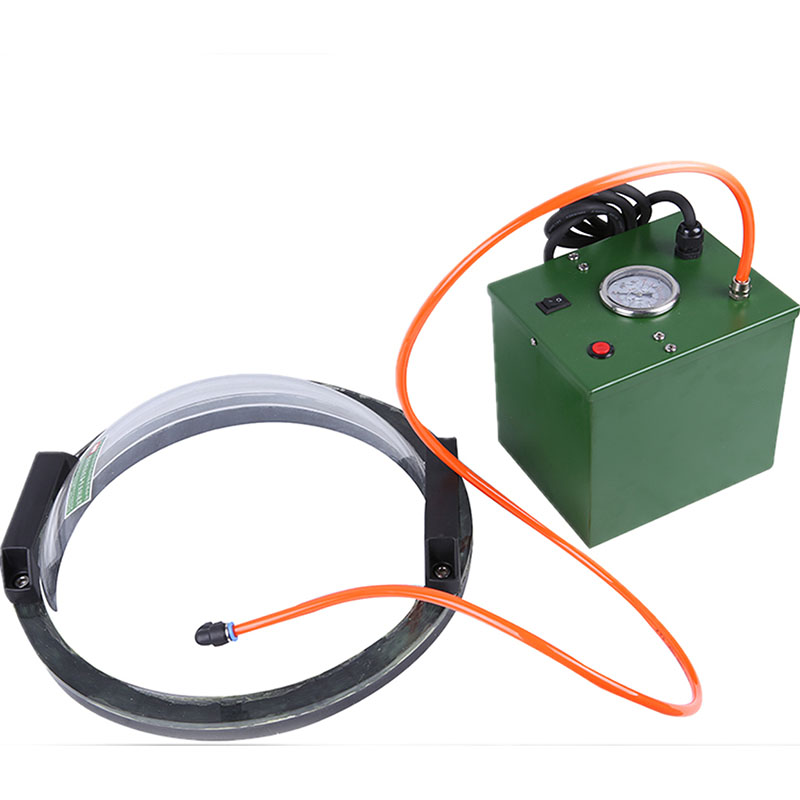

Vacuum air leak tester is one of MM-TECH testing tools with geomembrane welding equipment which used for leak detection on job site.
Description
Shape:
hemispherical
Working principles：
pump is on, vacuum the hood, then close the valve, After some minutes, if the figure is not moving, pressure not changing means no leaking.
Features:
fast vacuuming, high vacuuming, light weight, safe and reliable, especially for testing leak on job site.
Specifications
|
Voltage/Frequency
|
220V/50Hz
|
|
Power
|
≤150W
|
|
Max. air discharge
|
≤30 L/min
|
|
Max. Vacuum
|
-84KPa
|
|
Noise
|
≤48dB(A)
|
|
Condition temperature
|
5-40℃
|
|
Insulation
|
B
|
|
Withstand voltage strength
|
1500V/50Hz 1min no breakdown
|
|
Thermal protection
|
Auto reset 130±5℃
|
|
Testing size
|
700 square cm
|
|
Weight
|
8.4Kg(with carry box)
|
Operating Steps
1. Clean the welding part and lather around welding lap.
2. Locate the hood (1) and plug (6) connects to power.
3. Turn on the switch (5) and vacuum testing space, when the hand of watch (4) reaches 20-30 cm/Hg, do close switch (5).
4. Find if there is air leaking to observe bubble on testing area through the hood.
5. After test, collect the hood, then clean the sealing piece and put it in the box.
2. Locate the hood (1) and plug (6) connects to power.
3. Turn on the switch (5) and vacuum testing space, when the hand of watch (4) reaches 20-30 cm/Hg, do close switch (5).
4. Find if there is air leaking to observe bubble on testing area through the hood.
5. After test, collect the hood, then clean the sealing piece and put it in the box.
Pictures
Exhibition
After-sale service
We always provide high quality products and workable price for every clients and have won the confidence and approval.
Machine Quality Guarantee : 24 months.— If any parts broken or does not work under normal operating, we are free to provide.
Machine Quality Guarantee : 24 months.— If any parts broken or does not work under normal operating, we are free to provide.
